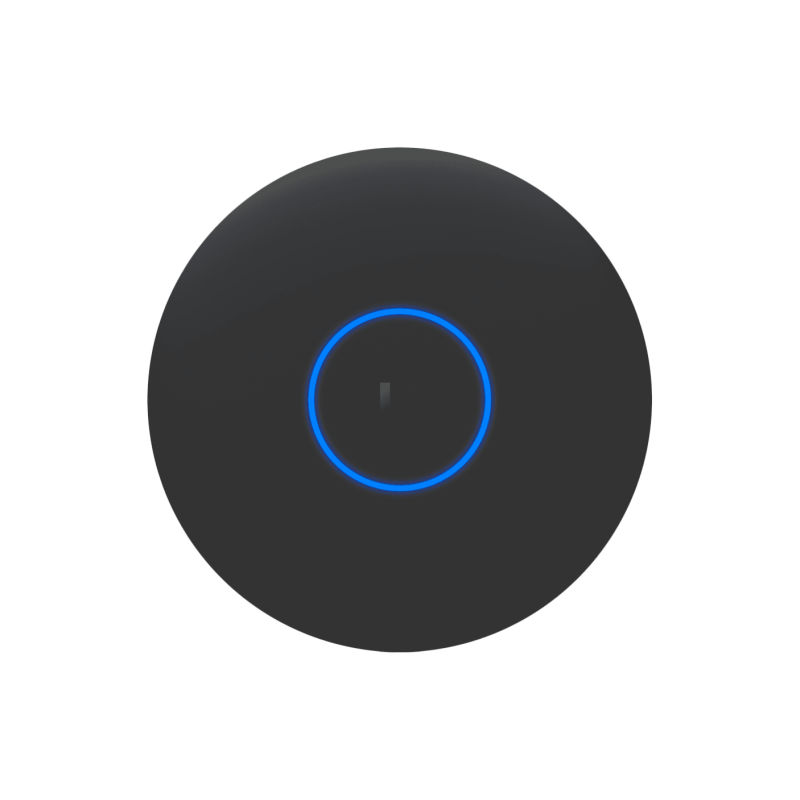

Ubiquiti U7-PRO-XGS-B Ceiling-mounted 8-stream WiFi 7 AP with dedicated spectral scanning radio and 10/5/2.5/1 GbE support

U7-PRO-XGS-B
>Get registered and you will earn 68 points Get registered and you will earn 68 points (Each R100 spent = 1 point).
Your cart will total 68 points.
  • Wireless Meshing
  • Band Steering
  • 802.11v BSS Transition Management
  • 802.11r Fast Roaming
  • 802.11k Radio Resource Management (RRM)
  • Zero-Wait DFS
  • Advanced Radio Management
  • Real-Time Spectral Analysis
  • Passpoint (Hotspot 2.0)
  • Captive Hotspot Portal
  • Custom Branding Landing Page
  • Voucher Authentication
  • Payment-Based Authentication
  • External Portal Server Support
  • Password Authentication
  • Guest Network Isolation
  • Private Pre-Shared Key (PPSK)
  • WiFi Speed Limiting
  • Client Device Isolation
  • WiFi Schedules
  • RADIUS over TLS (RadSec)
  • Dynamic RADIUS-assigned VLAN
R6,825 incl. VAT
R5,935 excl. VAT
FREE DELIVERY

IN STOCK at EXTERNAL supplier.
If ordered before 10AM:
DELIVERED next business day (main centres)
or 3-5 business days (regional areas or large items)
COLLECTION from GeeWiz available Same Day (approx 4:30pm)

Or as low as R2,275 over 6 months interest-free, using your existing credit card. How it works

Volume discounts

Quantity Price You Save
5 R6,689 2%
10 R6,552 4%
30+ click to email

Quantity

Ubiquiti U7 Pro XGS PoE Wireless Access Point U7-Pro-XGS-B

Ceiling-mounted 8-stream WiFi 7 AP with dedicated spectral scanning radio and 10/5/2.5/1 GbE support.

Features:

  • Wireless Meshing
  • Band Steering
  • 802.11v BSS Transition Management
  • 802.11r Fast Roaming
  • 802.11k Radio Resource Management (RRM)
  • Zero-Wait DFS
  • Advanced Radio Management
  • Real-Time Spectral Analysis
  • Passpoint (Hotspot 2.0)
  • Captive Hotspot Portal
  • Custom Branding Landing Page
  • Voucher Authentication
  • Payment-Based Authentication
  • External Portal Server Support
  • Password Authentication
  • Guest Network Isolation
  • Private Pre-Shared Key (PPSK)
  • WiFi Speed Limiting
  • Client Device Isolation
  • WiFi Schedules
  • RADIUS over TLS (RadSec)
  • Dynamic RADIUS-assigned VLAN

Technical Specifications:

Dimensions

Ø215 x 32.5 mm (Ø8.5 x 1.3")

WiFi Standard

WiFi 7

Spatial Streams

8

Coverage Area

160 m² (1,750 ft²)

Max. Client Count

500+

Uplink

10 GbE

Mounting

Ceiling, Wall (Lite Mount Included)

Power Method

PoE++

Performance

MIMO Configuration

6 GHz: 2 x 2 (DL/UL MU-MIMO)

5 GHz: 4 x 4 (DL/UL MU-MIMO)

2.4 GHz: 2 x 2 (DL/UL MU-MIMO)

Max. Data Rate

6 GHz: 5.8 Gbps (BW320)

5 GHz: 8.6 Gbps (BW240)

2.4 GHz: 688 Mbps (BW40)

Antenna Gain

6 GHz: 6 dBi

5 GHz: 6 dBi

2.4 GHz: 4 dBi

Max. TX Power

6 GHz: 24 dBm

5 GHz: 29 dBm

2.4 GHz: 23 dBm

Max. BSSIDs

8 per radio

Supported Data Rates

802.11be (WiFi 7):

6 GHz: 7.3 Mbps – 5.8 Gbps (MCS0–MCS13, NSS1/2, EHT 20/40/80/160/320)

5 GHz: 7.3 Mbps – 8.6 Gbps (MCS0–MCS13, NSS1–4, EHT 20/40/80/160/240)

802.11ax (WiFi 6):

7.3 Mbps – 4.8 Gbps (MCS0–MCS11, NSS1–4, HE 20/40/80/160)

802.11ac (WiFi 5):

6.5 Mbps – 3.4 Gbps (MCS0–MCS9, NSS1–4, VHT 20/40/80/160)

802.11n:

6.5 Mbps – 600 Mbps (MCS0–MCS31, HT 20/40)

Hardware

Max. Power Consumption: 29W

Supported Voltage Range: 42.5—57V DC

Networking Interface: (1) 10 GbE RJ45 port

Weight: 800 g (1.8 lb)

Management: Ethernet

Enclosure Material: UV-stabilized polycarbonate, aluminum alloy

Mount Material: Stainless steel (SUS304), galvanized steel (SGCC)

LEDs: System (White/Blue)

Channel Bandwidth: HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 MHz

NDAA Compliant: Yes

Certifications: CE, FCC, IC

Operating Frequency

US/CA:

2400–2472 MHz

U-NII-1: 5150–5250 MHz

U-NII-2A: 5250–5350 MHz

U-NII-2C: 5470–5725 MHz

U-NII-3: 5725–5850 MHz

U-NII-5–8: 5925–7125 MHz

Worldwide:

2400–2483.5 MHz

5150–5725 MHz

5925–7125 MHz

Environmental Ratings

Operating Temperature: -30 to 40°C (-22 to 104°F)

Operating Humidity: 5–95% noncondensing

Software

Application Requirements

UniFi Network Version 9.0.114 and later (U7 Pro XGS - White)

UniFi Network Version 9.1.120 and later (U7 Pro XGS - Black)

U7-PRO-XGS-B
