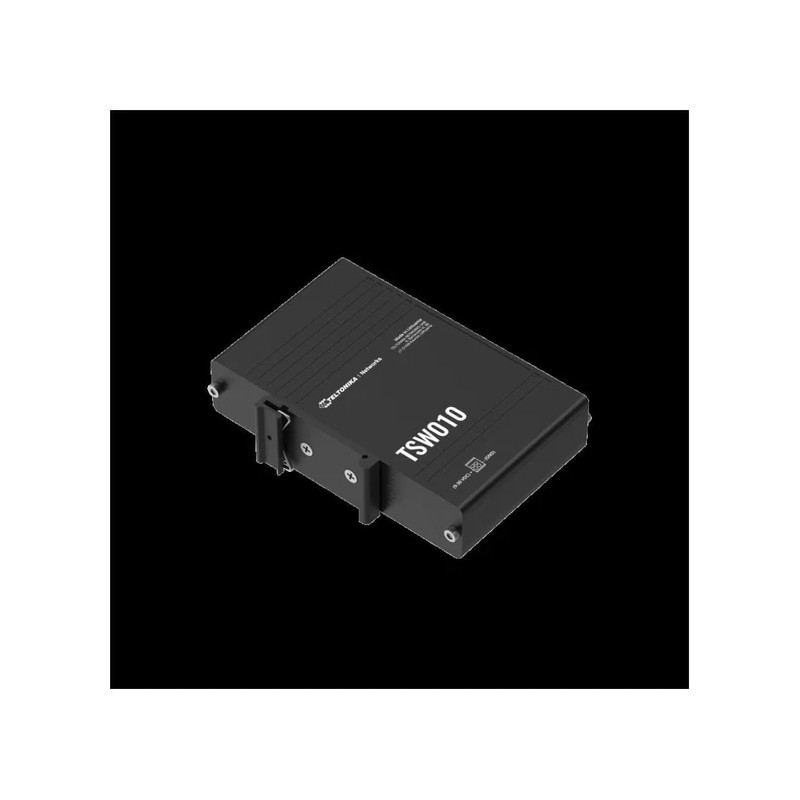

Teltonika TSW010 5x LAN (100Mbp)s Switch
Get registered and you will earn 7 points
(Each R100 spent = 1 point).Your cart will total 7 points.
- Power supply - 2-pin industrial DC power socket, 9 - 30 VDC
- Power consumption - Idle: 0.3 W / Max: 0.9 W
- Status LEDs - 1 x Power LED, 10 x LAN status LEDs
- Ethernet - 5 x RJ45 ports, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az, IEEE802.3x (Flow control) standards, supports auto MDI/MDIX crossover, Auto-Negotiation function
- Ingress protection rating - IP30
- Operating temperature - -40 °C to 75 °C
- Housing - Anodized aluminum housing and panels
- Dimensions - 113.1 x 27.4 x 80.5 mm
- Weight - 146.5 g
- Installation - Integrated DIN rail bracket, wall mounting (additional kit needed), flat surface placement
IN STOCK at EXTERNAL supplier.
If ordered before 10AM:
DELIVERED in 2-3 business days (main centres)
or 3-5 business days (regional areas or large items)
COLLECTION from GeeWiz available in 1-2 business days
Teltonika TSW010 DIN Rain 5-port PoE Ethernet Switch
The Teltonika TSW010 DIN Rain Switch is equipped with five basic switching RJ-45 Ethernet ports that support Fast Ethernet (10/100 Mbps), making it suitable for various industrial applications. It features a MAC address table capable of holding 2000 entries and boasts a switching capacity of 1 Gbit/s. Adhering to networking standards IEEE 802.3, IEEE 802.3az, and IEEE 802.3u, this switch ensures compliance with current technological protocols. The unit is powered through a DC-in jack and does not support Power over Ethernet (PoE). Its robust design includes a DIN rail bracket for easy installation, promoting a streamlined setup process without the need for additional mounting equipment. The compact and durable construction of the switch is ideal for environments that experience vibrations and varying temperatures, typical in industrial settings. This switch is an effective solution for enhancing network connectivity and communication within automated and machine-to-machine (M2M) operations.
TSW010 Ethernet switch offers the most affordable way to extend network connectivity to multiple Ethernet devices. Five 10/100 Mbps Ethernet ports ensure stable and reliable connectivity, sufficient for most industrial applications where high throughput is not required.
Plug and Play
No additional configuration needed
Mounting
Integrated DIN rail bracket and surface mounting options
Industrial Design
Anodized aluminum housing and panels
Ethernet
5 x Ethernet ports with speeds of up to 100 Mbps
Features:
- Power supply - 2-pin industrial DC power socket, 9 - 30 VDC
- Power consumption - Idle: 0.3 W / Max: 0.9 W
- Status LEDs - 1 x Power LED, 10 x LAN status LEDs
- Ethernet - 5 x RJ45 ports, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az, IEEE802.3x (Flow control) standards, supports auto MDI/MDIX crossover, Auto-Negotiation function
- Ingress protection rating - IP30
- Operating temperature - -40 °C to 75 °C
- Housing - Anodized aluminum housing and panels
- Dimensions - 113.1 x 27.4 x 80.5 mm
- Weight - 146.5 g
- Installation - Integrated DIN rail bracket, wall mounting (additional kit needed), flat surface placement
