Ancel BST600 12-24V Battery Tester - Built-In Printer / 3.12V & 24V Battery Load Tester

GW-A-Ancel BST600
>Earn 29 points/R29 Earn 29 points/R29 (Each R100 spent = 1 point, 1 point = R1 discount)
Your cart will total 29 points that can be converted into a voucher of R29.
  • Battery load tester is a more advanced battery load test tool with printer
  • Test battery temperature and measure current CCA values.
  • Can quickly test the cold start current, internal resistance, and battery life
  • Battery test, cranking test, Charging test, Maximum load test and reverse power connection protection
  • Conveniently attach a printout to a work order, share it with your customers or build a preventative maintenance program of record keeping
  • 3.12V & 24V Battery Load tester
  • Battery tester works on 12 volt & 24-volt lead-acid batteries including regular flooded, AGM flat plate, AGM spiral, GEL and EFB batteries with the test range (100-2000 CCA)
  • Compatible with cars, motorcycles, trucks, RVs, ATVs, SUVs, boats, yachts, mowers and even golf carts

R2,895 incl. VAT
R2,518 excl. VAT
FREE DELIVERY

IN STOCK AT OVERSEAS SUPPLIER - DISPATCHED/COLLECTION IN 14-20 DAYS

Volume discounts

Quantity Price You Save
5 R2,838 2%
10 R2,780 4%
30+ click to email

Quantity

Ancel BST600 12V/24V 100-2000 CCA Automotive Battery Temperature Load Tester Car Cranking Charging System Analyzer Scan Tool with Printer for Trucks Cars Motorcycles
Battery system testers are used for activated style lead-acid storage battery, and checking the battery conditions (temperature, starting up, charging, electrical loading)
Precise circuit and strong digital processing unit make it collect a series of complicated data completely and figure out every test data, which is available by 4-wire Kelvin test connection
Besides it strengthens input protection inside, in order to prevent such situations as polar reversal connection, over-high voltage input, poor contact of the test clamps, and so on
ANCEL BST600 battery tester is designed with convenience and broad functionality in mind
In addition to the printer function, it features a wide capability for the purpose of battery diagnosis and maintenance
It works on 12V and 24V battery systems, includes the actual Cold Cranking Amps test, the health status test, and the diagnosis of both starting and charging systems for common faults
It also has an integrated printer capable of printing out test results for improved service. This tool lets you know the condition of battery system in advance, save a trip and money to an auto repair shop

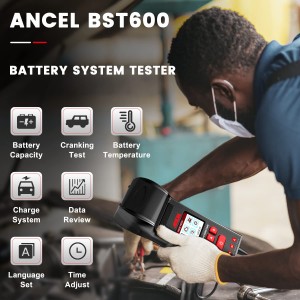

Features

Updated Testing Tech

- Ancel BST600 battery load tester is a more advanced battery load test tool with printer, it is can test battery temperature and measure current CCA values

- It suits to 12V/24V starting & charging system and can quickly test the cold start current, internal resistance, battery life, and accurately display the battery condition

- The features include Battery test, cranking test, Charging test, Maximum load test and reverse power connection protection

Car Battery Tester with Built-in printer and paper

- Its built-in printer with standard thermal printer paper, so you can conveniently attach a printout to a work order, share it with your customers or build a preventative maintenance program of record keeping

- Enables you to keep printing records for future reference(Printing Issues: make sure roller is pressed to the paper. If the roller becomes loose, it will cause poor contact between print head and paper, and no words can be printed.)

3.12V & 24V Battery Load tester

- Ancel BST600 automotive battery tester works on 12 volt & 24-volt lead-acid batteries including regular flooded, AGM flat plate, AGM spiral, GEL and EFB batteries with the test range (100-2000 CCA)

- Compatible with cars, motorcycles, trucks, RVs, ATVs, SUVs, boats, yachts, mowers and even golf carts

Fast and accurate

t’s fast and accurate, displaying battery parameters in about 2.5 seconds to advise you of a battery’s full/low or charge/replace status

Safe and convenient

- The unit is housed in a rugged casing for easy hand-holding

- It’s lightweight and has a backlit display screen for clear reading under any lighting condition, the insulated ABS shell prevents current leaks and is solid enough to withstand damage

- Whether you own your personal mechanic shop or private owner, easy to use and convenient to carry around. In addition, it supports 12 languages, such as English, French, Spanish, etc.

Specification

- Brand: ANCEL

- Model: BST600

- Name: 12V/24V Battery tester with Printer

- Item Dimensions: 32.5 x 20 x 8.5 cm (l x w x h)

- Application: For most 12 V 24V Solar Power Systems/RVs/Boats/Motorcycles/Trucks/Cars

Battery Test

- Battery Temperature and Voltage Monitor, Cranking Charging Test.

- Test Multiple Battery Types: Regular flooded, AGM flat plate, AGM spiral, Gel and EFB;

- Battery Standards Supported: Supports all battery rating systems - CCA, BCI, CA, MCA, JIS, DIN, IEC, EN, SAE, GB

- Performance Test: Charging Test, Cranking Test, Battery Test

- Print Function: Support

Test result

- Status of health (SOH), Status of charge (SOC), Measure CCA value, Battery temperature, Voltage, internal resistance, Ripple Test, load test, Data Review, Print Test Report

- Displays test result in merely seconds, more accurate than the low-priced tester

Feature

- Tests in-vehicle battery and single storage battery

- Quick starter analysis without disabling the ignition

- Easy to use and read with large backlight LCD display and menu-driven operation

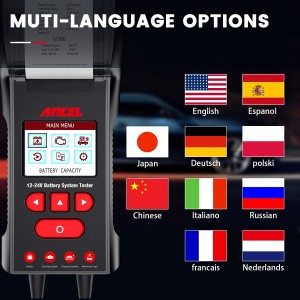

Supported languages

- English, Deutsch, Italian, Franch, Espanol, Polski, Nederlands, Japanese and more

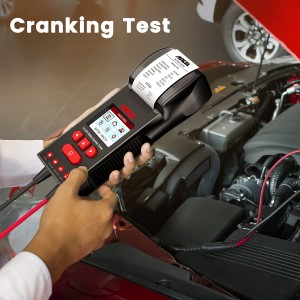

Engine System Activation Load Test

- Start the engine to make the tester record the lowest voltage in this process automatically

- For the 12V system, the standard voltage is 9.6V; for 24V system, the standard voltage is 16V

- If the lowest voltage is higher than the 9.6V (for the 24V system, the lowest voltage is over 16V), the system is good

- If the lowest voltage is lower than the standard voltage, the system is not good

Maximum Load System Test

- For the 12V system, the standard voltage is 12.8V, for the 24V system, the standard voltage is 25.6V

- If the lowest voltage is higher than the 12.8V (for the 24V system, the lowest voltage is over 25.6V), the system runs normally

- If the lowest voltage is lower than 12.8V (for the 24V system, the lowest voltage is under 25.6V), please check if the engine belt is damaged and the wires are short-circuited

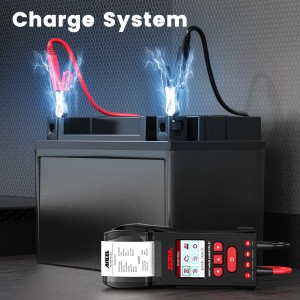

Charging System Test

- For the 12V system, the standard maximum voltage is 15V, the standard minimum voltage is 13.3V; for the 24V system, the standard maximum voltage is 30V, the standard minimum voltage is 26.6V

- If the current voltage is higher than 15V or 30V, please check the voltage regulator. If the current voltage is lower than 13.3V or 26.6V, please check the connections, wires, and engine

Package Contents

- 1 x Ancel BST600 Battery tester

- 1 x Battery clamps

- 1 x User manual

- 1 x Printing paper roll
