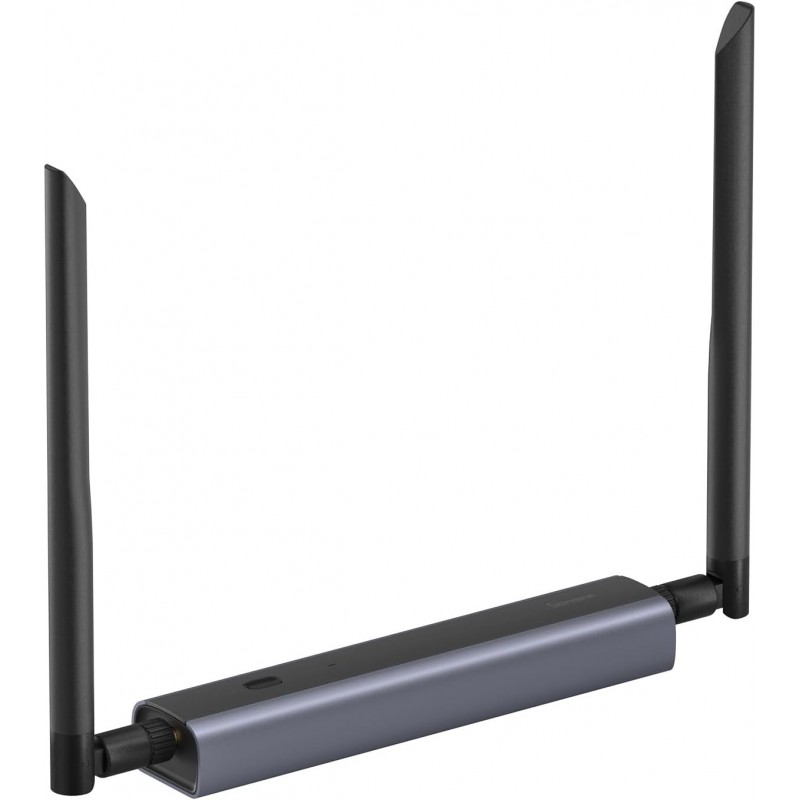

Sonoff Dongle Max (Zigbee) Supports Ethernet- Wi-Fi and USB Connections
Get registered and you will earn 10 points
(Each R100 spent = 1 point).Your cart will total 10 points.
- Multi-protocol hub supporting Zigbee 3.0 + Thread for wide device compatibility
- PoE, Wi-Fi, and USB-C connectivity for flexible installation
- Dual 5 dBi external antennas for strong, stable signal coverage
- Local web interface for easy setup, firmware updates, and role switching
- Powered by EFR32MG24 + ESP32 chipset for fast, reliable performance
- Works with Home Assistant, Zigbee2MQTT, openHAB, ioBroker and more
- Ideal for large homes, offices, and pro smart-home installations
- Durable aluminum + PC/ABS housing improves cooling and longevity
- Supports Coordinator, Router, and Thread RCP operational modes
- Compact design with mounting accessories included
IN STOCK at GeeWiz!
If ordered before 4PM:
DELIVERED next business day (main centres)
or 3-5 days (regional areas OR large/heavy packages)
COLLECTION from GeeWiz available SAME DAY
Also available for in-store purchase during business hours!
The SONOFF Dongle Max Zigbee/Thread PoE is a professional-grade smart home connectivity hub designed for enthusiasts, integrators, and advanced automation setups. Whether you’re expanding a robust Zigbee network or building a future-proof IoT backbone, this dongle combines cutting-edge wireless tech with flexible connectivity and intuitive local control.
Key Features
Multi-Protocol Support
Support for Zigbee 3.0 and Thread means you can connect a broad range of smart devices — from lights and sensors to locks and environmental controls — under a single coordinator.
Flexible Connectivity Options
Install and power the dongle however you need:
- Power over Ethernet (PoE) for stable network-plus-power over one cable — ideal for professional installations.
- Wi-Fi (2.4 GHz) for flexible placement without Ethernet wiring.
- USB-C for plug-and-play compatibility with PCs, hubs, or controllers.

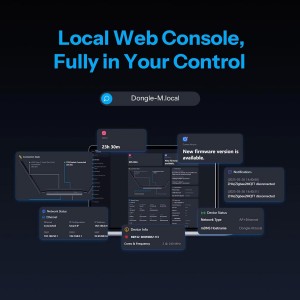

Intuitive Web-Based Management
Configure, monitor, and update the dongle through a built-in browser interface — no complex command-line tools required. Switch between operational roles (Coordinator, Router, or Thread RCP) and update firmware without disassembling or flashing hardware manually.
Superior Signal Performance

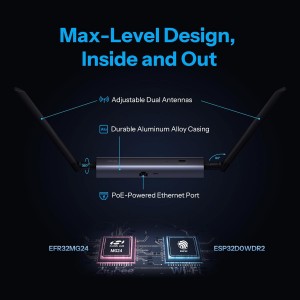

Dual 5 dBi adjustable external antennas provide excellent 360° coverage for wide and reliable wireless reach throughout homes, offices, or larger spaces.
Professional-Ready Build
Encased in a durable aluminum + PC/ABS housing, this dongle is designed for long-term reliability and thermal stability.
Technical Specifications
- Chipset: Silicon Labs EFR32MG24 + Espressif ESP32-D0WDR2 — powerful Zigbee + Wi-Fi/PoE processing.
- Protocols: Zigbee 3.0, Thread, Wi-Fi IEEE 802.11b/g/n (2.4 GHz).
- Network Interfaces: USB-C, RJ45 Ethernet with PoE support.
- Power: 5 V⎓1 A via USB-C or 48 V⎓0.25 A via PoE.
- Management: Local web GUI for settings, firmware, and logs.
- Operating Conditions: −10 °C to 60 °C, 5–95 % non-condensing humidity.
- Dimensions: Compact form factor perfect for rack or shelf mounting.
Ideal for
- Tech-savvy smart home users looking to centralise and expand Zigbee/Thread networks
- Installers and integrators needing stable PoE-based gateways
- DIY automation builders leveraging open-source hubs like Home Assistant, Zigbee2MQTT, openHAB, ioBroker, and more
What’s Included
- SONOFF Dongle Max Zigbee/Thread PoE Dongle (Dongle-M)
- Dual 5 dBi adjustable antennas
- USB-C cable
- Installation accessories (bracket, screws, tape)
