Shelly Pro 3EM Switch Add-On Extends The Possibilities Of The Shelly Pro 3EM
SHELLY PRO 3EM SWITCH ADD-ON
Get registered and you will earn 5 points
(Each R100 spent = 1 point).Your cart will total 5 points.
- Dry contacts
- DIN-rail mountable
R510 incl. VAT
R444 excl. VAT
IN STOCK at EXTERNAL supplier.
If ordered before 10AM:
DELIVERED in 2-3 business days (main centres)
or 3-5 business days (regional areas or large items)
COLLECTION from GeeWiz available in 1-2 business days
Or as low as R170 over 6 months interest-free, using your existing credit card. How it works

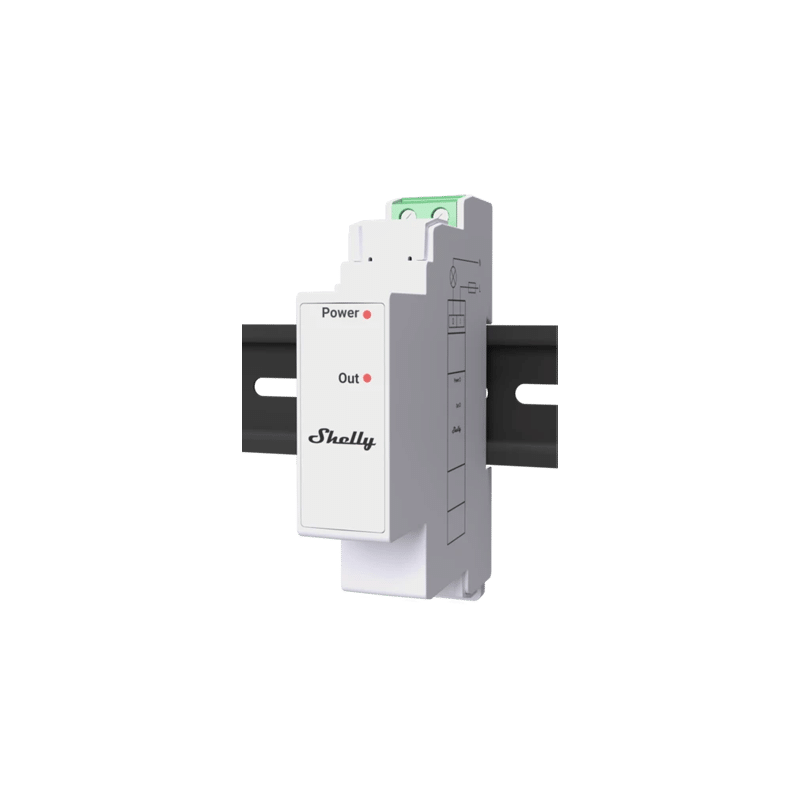

Shelly Pro 3EM Switch Add-on
A galvanically isolated switch designed to expand the capabilities of your Shelly Pro 3EM device. This add-on allows you to easily control contactors and other electrical devices, giving you greater flexibility and control over your consumption.
- Dry contacts
- DIN-rail mountable
*Only compatible with Shelly Pro 3EM!
Load shedding
Keep track of how much energy your solar panels and wind turbines are generating and save effortlessly by controlling your consumption with Shelly Pro 3EM Add-on. Connect Shelly Pro Add-On to your appliances and use Shelly Pro 3EM's real-time information on how much energy has been generated and consumed. When you need to save energy, Shelly Pro3EM Add-on can automatically switch off non-essential appliances in your home.
Weather-based control
Shelly Pro 3EM, enhanced with the Shelly Pro 3EM Add-on, offers weather-driven energy optimization. By scripting, you can efficiently control your appliances based on the weather forecast. Upon receiving real-time weather updates, Shelly Pro 3EM takes measures as defined in the script. For example, if the forecast indicates that it's going to be a sunny day, Shelly Pro 3EM Add-On can automatically turn off the heating anticipating higher temperatures.
PV systems balancing
When your PV system is producing more energy than your home consumes, Shelly Pro 3EM Add-On can automatically activate appliances to make use of it. For example, you can set it to turn on your water heater, charging station for electric vehicles, or other energy-intensive appliances. This way, you make the most of the abundant energy generated by your PV system and reduce dependency on the grid.
Technical Specifications:
Physical
Size (HxWxD): 94 x 19 x 69 ±0.5 mm / 3.70 x 0.75 x 2.71 ±0.02 in
Weight: 20 ±1 g / 0.70 ±0.05 oz
Mounting: DIN rail, attached to a Shelly Pro 3EM
Screw terminals max torque: 0.4 Nm / 4.43 lbin
Conductor cross section: 0.5 to 2.5 mm² / 20 to 14 AWG (solid, stranded and bootlace lugs)
Conductor stripped length: 6 to 7 mm / 0.24 to 0.28 in
Shell material: Plastic
Color: White
Environmental
Ambient temperature: -20 °C to 40 °C / -5 °F to 105 °F
Humidity: 30% to 70% RH
Max. altitude: 2000 m / 6562 ft
Electrical
Power supply voltage AC: N/A
Power supply voltage DC: 3.3 V and 12 V (from Shelly Pro 3EM device)
Power consumption: < 1 W
Output circuits ratings
Max switching voltage AC: 240 V
Max switching voltage DC: 30 V
Max switching current AC: 2 A
Max switching current DC: 2 A
