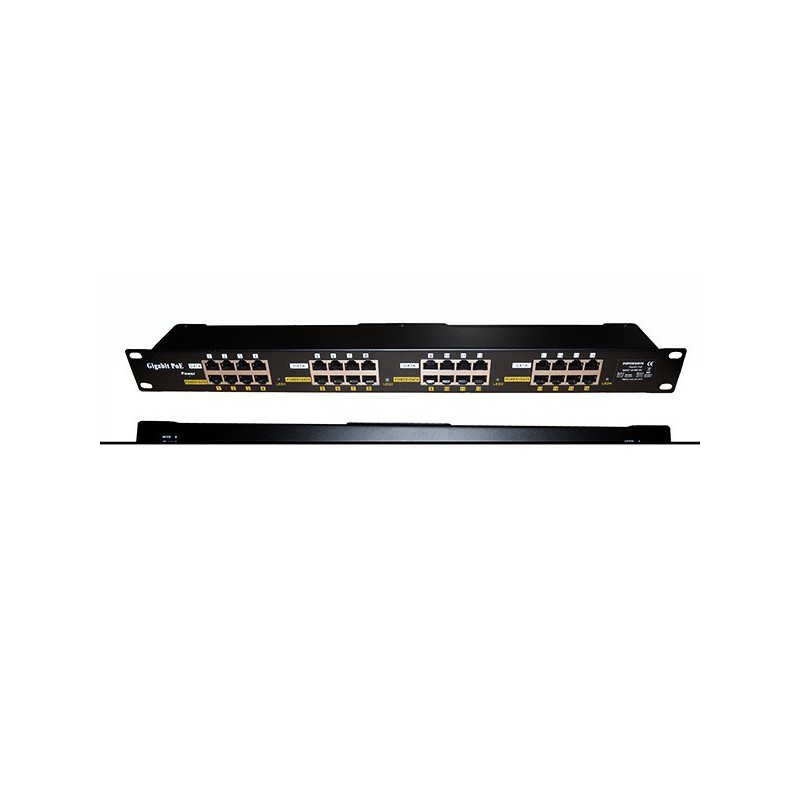

16 Port Gigabit Passive PoE Injector

16 Port Gigabit Passive PoE Injector

POE-16G
>Get registered and you will earn 15 points Get registered and you will earn 15 points (Each R100 spent = 1 point).
Your cart will total 15 points.
  • Input: 100-240Vac (18-57V Dc In)
  • Output: 18-57V
  • Data: 1/2&3/6&4/5&7/8
  • Power: 3/6+ & 1/2- ,4/5+ & 7/8-
  • Data In: Connects PC/HUB/Switch

PLEASE NOTE - By default, for powered items, Ubiquiti includes adapter plugs that are not suited for South Africa. In these cases, the wrong adapter plug will carefully be removed from the box and a South African compatible plug will be sent separately.

R1,522 incl. VAT
R1,324 excl. VAT
FREE DELIVERY

IN STOCK at EXTERNAL supplier.
If ordered before 10AM:
DELIVERED next business day (main centres)
or 3-5 business days (regional areas or large items)
COLLECTION from GeeWiz available Same Day (approx 4:30pm)

Or as low as R508 over 6 months interest-free, using your existing credit card. How it works

Volume discounts

Quantity Price You Save
5 R1,492 2%
10 R1,462 4%
30+ click to email

Quantity

PLEASE NOTE - By default, for powered items, Ubiquiti includes adapter plugs that are not suited for South Africa. In these cases, the wrong adapter plug will carefully be removed from the box and a South African compatible plug will be sent separately.

Please note: The PSU for this unit is sold separately.

FEATURES

POE-16G, 16 port Gigabit PoE panel features and flexible power (DC 18 - 57V) and can be used with any Ethernet switch. The RJ45 socket delivers data and power. Each socket provides current protection against short overflow. The configuration size of the panel is 1U (height), 19” (width) and 52mm (thickness).

PRODUCT SPECIFICATIONS

Manufacturer Scoop
Factory Number POE-16G
Product Type PoE Injector
Input 100-240Vac (18-57V Dc In)
Output 18-57V
Data 1/2&3/6&4/5&7/8
Power 3/6+ & 1/2- ,4/5+ & 7/8-
Data In Connects PC/HUB/Switch
Weight 16 Port 1.3Kg
Dimensions 482.6mm × 44.3mm × 52mm
Case material metal
Ethernet Cable TIA/EIA 568 Cat.5
Data rate 10/100/1000Mbps
Connector: RJ-45
Dimensions 482.6mm × 44.3mm × 52mm
Case material metal
POE-16G
  • Returns Policy
  • Return of merchandise (RMA) and Warranty

    We want you to be happy with the purchase you have made from us. If you are not completely satisfied, you may return the product to us and we will either refund, credit, repair/replace it, subject to the below terms and conditions.

    You can return purchases for a refund (excl shipping). Please notify us within 7 days and ensure item is ready maximum 10 days after delivery date.

    Please ensure to log your return request within 7 days of receipt of your item. Please ensure to select the correct reason for return:

    - Changed my mind / Item exchange

    - Faulty on arrival

    - Incorrect item received

    All items are covered by a 12 month warranty (unless otherwise stated) which will be honoured directly by GeeWiz. All products will either be replaced/repaired/refunded depending on stock availability. Products will require evaluation by GeeWiz before a warranty claim can be accepted.

    Should the item being returned for assessment be found to be in good working order, unfortunately, there will be a collection fee that will apply.

    The collection fees are as follows:

    - For returns on items that were sent with free shipping: R198

    - For returns that had a surcharge, the same surcharge will apply for collection.

    Please log your return on your account, under the returns manager.

    We do not reimburse your fee to ship to us, but we will pay for return shipping if the item is subject to replacement. If the item you wish to return was ordered incorrectly / is no longer required / you have changed your mind, there is a collection fee that will be charged (please refer to the above) and this will be deducted from the refund amount once the supplier has credited us. Please note GeeWiz will only cover return shipping of a faulty unit within 6 months of purchase, after which, a shipping fee (starting from R198) will be applicable to you for the return of the unit.

    Any disputes relating to ordered items being short/incorrectly shipped will only be entertained if reported to GeeWiz within 3 days of delivery/collection.

    Refunds are subject to inspection of item(s) - in some cases, items will need to be sent to supplier for evaluation and testing. This can take up to 15 working days. Once a refund has been approved, this may take 3 - 5 business days to be processed.

    ALL returns are subject to up to a 30% restocking fee if item is no longer in BRAND NEW condition or if item seal/packaging has been broken.

    Please re-package safely and include all original product packaging.

    All software products are unfortunately not eligible for credit or refund once purchased.

    After the 6-month period, you will no longer be eligible and won't be able to receive a refund. We can however replace or repair depending on the outcome after our team of professionals has inspected the product.

    Should a warranty sticker not be present on an item, the warranty is immediately null and void.

    Batteries are covered under warranty, but please note that GEL, AGM and LEAD ACID have limited cycle runs. These are typically around 200 cycles and may run out before the end of the warranty. Once the cycles have been depleted, it means the battery has reached the end of life and will no longer be a warranty claim.

    GeeWiz reserves the right to refuse a refund if the item is damaged from misuse, items are missing, or if the product is altered in any way.

    GeeWiz or its affiliates are not responsible for damage or loss of any kind that may occur as a result of using or misusing any product purchased from us.

    The warranty will no longer be valid, and GeeWiz will not be responsible for damage or injury of any kind resulting from:

    • Electricity fluctuations and surges, lightning strikes, faults in the building wiring, faulty installations, and improper use of controls
    • Failure to use the product in accordance with the operating instructions and or general misuse and or abuse
    • Damage caused by a superior force (vis major) or if the product has been infested with insects or pests
    • If the product is physically damaged after it left the store
    • If water or liquid caused the damage to the product
    • If the warranty seal is tampered with
    • Any repair or tampering by an unauthorised person or attempt to repair or tamper with the equipment, or use of parts not supplied by authorised agents, or alterations or modification to the equipment shall render the warranty null and void.

    For hygiene purposes.

    Please note we cannot accept returns for apparel that has been worn, stained, frayed, or otherwise shows signs of use.

    We can only accept returns for items that are damaged upon receipt or are faulty.

  • Click here to get more details

2 Question(s) answered

  • Asked by Hein van Eeden
    09/10/2017
    Hi, Does the Scoop 16 Port Gigabit Passive PoE Injector come with its own power connectors, or do you have to buy them separately, and if so, which ones? Answer:
    It does not come with power connectors - you need to buy a power supply
  • Asked by Nick
    18/08/2018
    Hi, I have a mixture of access points - Ubiquiti and TP Link and also Dahua IP Cameras and a few other brands that i want to power off POE and intrested in this POE injector. Alot of my devcies on the network are Gigabit besides the cameras etc so i purchased a 16 Port Gigabit Switch. I want to power 12 Devices with POE and have room for more later. My concern is that my cameras are 12V .05A and TP Link AP's state 12V 1.5A (POE 36-57V 0.4A) and then Ubiquiti AP's state (24V 0.5A POE) will this power all my devices correctly (will this injector step down to 12V for 12V devices? I read mixed posts on the net, some say the AP or Camera etc will step down and others say the injector will provide the correct current etc? very confused and want to know if i can place and order for this quickly or what else i can order instead that will work for me? Answer:
    There is no such thing as 12V POE. Your cameras will typically take 12V DC through regular DC plug or 48V POE through ethernet cable. Same as the TP-Link APs. I suggest a high amp plug to accommodate all devices. The highest we have is: <a href="https://www.geewiz.co.za/corsairs-power-supplies/57219-48v-dc-120w-psu-power-supply-unit-for-poe-without-kettle-cable.html">https://www.geewiz.co.za/corsairs-power-supplies/57219-48v-dc-120w-psu-power-supply-unit-for-poe-without-kettle-cable.html</a> So this would work if you have less than 2.5A for all combined. Cameras will use 0.125A each and TP-Link AP will use 0.4A each.
