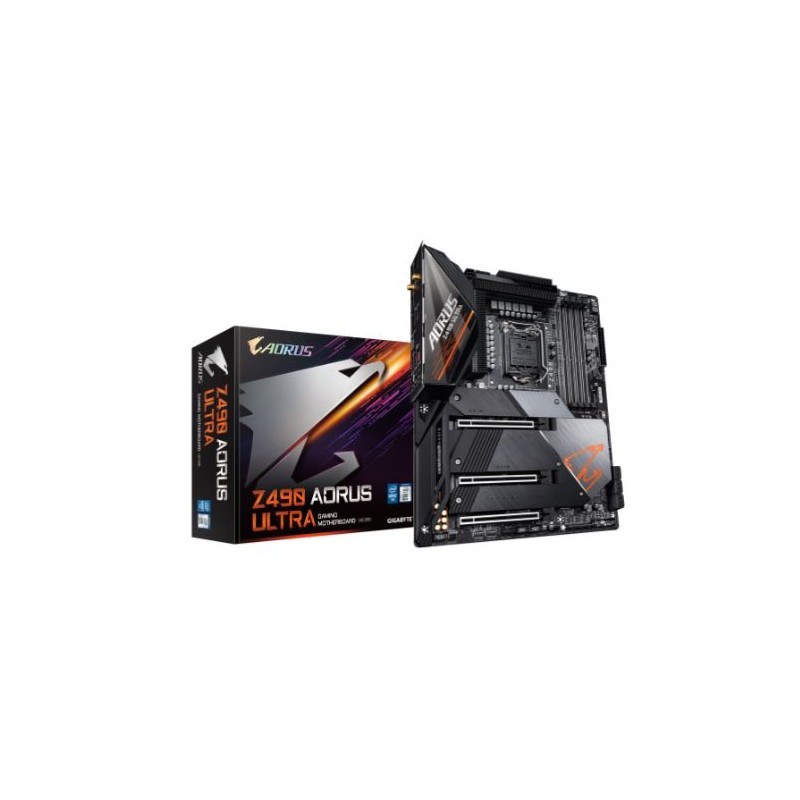

Gigabyte Z490 Aorus Ultra (Wi-Fi) Motherboard
Get registered and you will earn 65 points
(Each R100 spent = 1 point).Your cart will total 65 points.
- Supports 10th Gen Intel Core Series Processors
- Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
- Intel Optane Memory Ready
- Direct 12 Phase Digital VRM Solution with 55A DrMOS
- Shielded Memory Routing for Better Memory Overclocking
- NanoCarbon Fins-Array II Heatsink and Direct Touch Heatpipe II
IN STOCK at EXTERNAL supplier.
If ordered before 10AM:
DELIVERED next business day (main centres)
or 3-5 business days (regional areas or large items)
COLLECTION from GeeWiz available Same Day (approx 4:30pm)
Product is expected to be in stock, however stock levels are LOW, so stock may be finished. If ordered, we will contact you if this product is sold out
FEATURES
Gigabyte Z490 Aorus Ultra (Wi-Fi) Motherboard
- Supports 10th Gen Intel Core Series Processors
- Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
- Intel Optane Memory Ready
- Direct 12 Phase Digital VRM Solution with 55A DrMOS
- Shielded Memory Routing for Better Memory Overclocking
- NanoCarbon Fins-Array II Heatsink and Direct Touch Heatpipe II
- Onboard Intel WiFi 6 802.11ax 2T2R & BT5 with AORUS Antenna
- AMP-UP Audio with ALC1220-VB and WIMA for Rear 120dB SNR
- Blazing Fast Intel 2.5GbE LAN with cFosSpeed
- Triple Ultra-Fast NVMe PCIe 3.0 x4 M.2 with Thermal Guards II
- RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
- Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP and Noise Detection
- Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
- CPU
- Support for 10th Generation Intel Core i9/i7/i5/i3/Pentium/Celeron processors in the LGA1200 package
- L3 cache varies with CPU
Note: Please refer to "CPU Support List" for more information.
- Chipset
- Intel Z490 Express Chipset
- Memory
- 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
- Dual channel memory architecture
- OC Mode: 5000/4933/4800/4700/4600/4500/4400/4300/4266/4133/4000/3866/3800/3733/3666/3600/3466/3400/3333/3300/3200/3000 MHz
- JDEC: 2933/2800/2666/2400/2133 MHz
- Support for Extreme Memory Profile (XMP) memory modules
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Note: To support a DDR4 3200 MHz, you must use XMP memory. Please refer to "Memory Support List" for more information.
- Onboard Graphics
- Maximum shared memory of 512 MB
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
- Integrated Graphics Processor: Intel® HD Graphics support
Note: Support for HDMI 1.4 version and HDCP 2.3.
- Audio
- Support for S/PDIF Out
- 2/4/5.1/7.1-channel
- High Definition Audio
- Support for DTS:X® Ultra
- Realtek ALC1220-VB codec
Note: The back panel line out jack supports DSD audio.
- LAN
- Intel 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
- Wireless Communication module
- Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
- BLUETOOTH 5.0
- WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band
- Intel Wi-Fi 6 AX201
Note: Actual data rate may vary depending on environment and equipment.
- Expansion Slots
- 1 x PCI Express x16 slot, running at x4 (PCIEX4)
- 1 x PCI Express x16 slot, running at x8 (PCIEX8)
- 1 x PCI Express x16 slot, running at x16 (PCIEX16)
- (All of the PCI Express slots conform to PCI Express 3.0 standard.)
Note: The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
- Multi-Graphics Technology
- Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies
- Support for NVIDIA Quad-GPU SLI and 2-Way NVIDIA SLI technologies
- Storage Interface
- Intel Optane Memory Ready
- Support for RAID 0, RAID 1, RAID 5, and RAID 10
- 6 x SATA 6Gb/s connectors
- 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2M_SB)
- 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A_CPU)
- 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2P_SB)
Note: Refer to "1-8 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
- USB
- Chipset:
- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
- 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
- 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support
- 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header
- Chipset+2 USB 2.0 Hubs:
- 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
- Operating System: Support for Windows 10 64-bit
- Form Factor: ATX Form Factor (30.5cm x 24.4cm)
PRODUCT SPECIFICATIONS
| Brand | Gigabyte |
| Item model number | MB-GZ490AU+W |
| Product Type | Motherboard |
