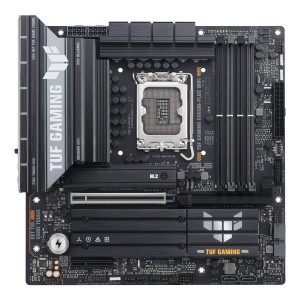

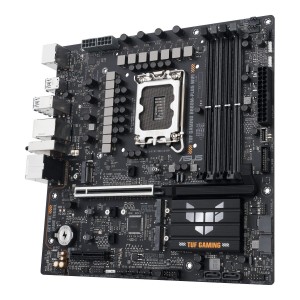

Asus TUF Gaming B860M-Plus Wi-Fi M-ATX Motherboard – Intel LGA1851- DDR5- PCIe 5.0. Wi-Fi 7

TUFGAMINGB860M-PLUSWIFI
>Get registered and you will earn 55 points Get registered and you will earn 55 points (Each R100 spent = 1 point).
Your cart will total 55 points.

FEATURES:

  • Supports 14th, 13th, and 12th gen Intel® core™ processors
  • PCIe 5.0 x16 slot enables next-gen GPU compatibility and ultra-fast data throughput
  • DDR5 memory support with ASUS OptiMem II
  • Built-in Wi-Fi 7 and Bluetooth v5.4 high-speed wireless connectivity and low-latency networking
  • Enhanced power solution with 12+1 DrMOS power stages and 8+4 pin ProCool connectors
  • Comprehensive cooling with large VRM heatsinks, M.2 heatsink, hybrid fan headers, and Fan Xpert 2+
  • 20Gbps high-speed data transfer Type-C connectivity
  • Armoury crate software integration for centralised system management and RGB control
  • Military-grade TUF components and rigorous validation
  • Two-way AI noise cancellation
  • Q-LED diagnostic display, M.2 Q-Latch, and SafeSlot Core+
R5,519 incl. VAT
R4,800 excl. VAT
FREE DELIVERY

IN STOCK at EXTERNAL supplier.
If ordered before 10AM:
DELIVERED next business day (main centres)
or 3-5 business days (regional areas or large items)
COLLECTION from GeeWiz available Same Day (approx 4:30pm)

From R514
per month
Or as low as R1,840 over 6 months interest-free, using your existing credit card. How it works

Volume discounts

Quantity Price You Save
5 R5,409 2%
10 R5,299 4%
30+ click to email

Quantity
Wishlist

Built to deliver durability, stability, and next-generation performance, the ASUS TUF Gaming B860M-Plus motherboard redefines what gamers can expect from a Micro-ATX platform. Engineered with military-grade components and comprehensive power design, this board is ready for intense gaming sessions and high-performance multitasking. Its robust build quality and reliability make it the ideal foundation for long-lasting gaming rigs.

The ASUS TUF Gaming B860M-Plus integrates support for Intel® Core™ 14th, 13th, and 12th Gen processors, ensuring users have access to the latest CPU advancements. With PCIe 5.0, DDR5 memory compatibility, and next-gen Wi-Fi 7, users benefit from blazing-fast data transfer, ultra-low latency, and increased bandwidth, perfect for competitive gamers, content creators, and tech enthusiasts.

Intelligent design elements like Q-LED diagnostic indicators, M.2 Q-Latch, and Armoury Crate software simplify building and monitoring your system, while two-way AI noise cancellation ensures crystal-clear communication. The board also features an advanced VRM heatsink, hybrid fan headers, and Fan Xpert 2+ technology, enabling optimal cooling under pressure.

For gamers who demand reliability without compromising performance, the ASUS TUF Gaming B860M-Plus motherboard delivers a versatile, future-ready solution. Whether you’re building your first rig or upgrading an existing setup, this motherboard offers all the essentials—and more—for immersive and uninterrupted gameplay.

FEATURES:

  • Supports 14th, 13th, and 12th gen Intel® core™ processors
  • PCIe 5.0 x16 slot enables next-gen GPU compatibility and ultra-fast data throughput
  • DDR5 memory support with ASUS OptiMem II
  • Built-in Wi-Fi 7 and Bluetooth v5.4 high-speed wireless connectivity and low-latency networking
  • Enhanced power solution with 12+1 DrMOS power stages and 8+4 pin ProCool connectors
  • Comprehensive cooling with large VRM heatsinks, M.2 heatsink, hybrid fan headers, and Fan Xpert 2+
  • 20Gbps high-speed data transfer Type-C connectivity
  • Armoury crate software integration for centralised system management and RGB control
  • Military-grade TUF components and rigorous validation
  • Two-way AI noise cancellation
  • Q-LED diagnostic display, M.2 Q-Latch, and SafeSlot Core+

SPECIFICATIONS:

  • CPU
  • Support Intel® Core™ Ultra Processors (Series 2), LGA1851
  • Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
  • Chipset: Intel® B860 Chipset
  • Memory
  • 4 x DIMM slots, max. 256GB, DDR5
  • Support up to 8800+MT/s (OC), Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)
  • Dual Channel Memory Architecture
  • DIMM Fit
  • Supports Intel® Extreme Memory Profile (XMP) memory module
  • ASUS Enhanced Memory Profile III(AEMPIII)
  • Graphics
  • 1 x DisplayPort
  • 1 x HDMI® port
  • 1 x USB 20Gbps port (Type-C)
  • Expansion Slots
  • Intel® Core™ Processors (14th & 13th & 12th Gen)
    • 1 x PCIe 5.0 x16 slot
  • Intel® Z790 Chipset
    • 1 x PCIe 4.0 x4 slot
  • Storage
  • Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
  • Intel® Core™ Ultra Processors (Series 2)
  • M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
  • Intel® B860 Chipset
  • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  • M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
  • 4 x SATA 6Gb/s ports
  • Ethernet
  • 1 x Intel® 2.5Gb Ethernet
  • TUF LANGuard
  • Wireless & Bluetooth
  • Wi-Fi 7
  • 2x2 Wi-Fi 7 (802.11be)
  • Supports 2.4/5/6GHz frequency band
  • Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
  • Bluetooth® v5.4
  • Audio
  • Realtek 7.1 Surround Sound High Definition Audio CODEC
    • Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
    • Supports up to 24-bit/192 kHz playback
  • Audio Features
    • Audio Shielding
    • Rear optical S/PDIF out port
    • Premium audio capacitors
    • Dedicated audio PCB layers
  • Back Panel I/O Ports
  • 1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode)
  • 2 x USB 10Gbps port (2 x Type-A)
  • 4 x USB 5Gbps ports (4 x Type-A)
  • 1 x USB 2.0 port (1 x Type-A)
  • 1 x DisplayPort
  • 1 x HDMI™ port
  • 1 x Wi-Fi Module
  • 1 x Realtek 2.5Gb Ethernet port
  • 5 x Audio jacks
  • 1 x Optical S/PDIF out port
  • Internal I/O Connectors
  • 1 x 4-pin CPU Fan header
  • 1 x 4-pin CPU OPT Fan header
  • 1 x 4-pin AIO Pump header
  • 3 x 4-pin Chassis Fan headers
  • 1 x 24-pin Main Power connector
  • 2 x 8-pin +12V Power connectors
  • 3 x M.2 slots (Key M)
  • 4 x SATA 6Gb/s ports
  • USB
  • 1 x USB 20Gbps port (1 x USB Type-C®)
  • 2 x USB 10Gbps port (2 x Type-A)
  • 4 x USB 5Gbps ports (4 x Type-A)
  • 1 x USB 2.0 ports (1x Type-A)
  • 1 x USB 10Gbps connector (supports USB Type-C®)
  • 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  • 1 x USB 2.0 headers support 2 additional USB 2.0 ports
    * USB Type-C® power delivery output: max. 5V/3A
  • Miscellaneous
    3 x Addressable Gen 2 headers
    1 x Clear CMOS header
    1 x Chassis Intrusion header
    1 x Front panel audio header (F_AUDIO)
    1 x 10-1 pin Front System Panel header
    1 x Thunderbolt™ (USB4®) heade
  • USB
    • 1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
    • 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
    • 2 x USB 2.0 headers support an additional 4 USB 2.0 ports
  • Miscellaneous
    • 3 x Addressable Gen 2 headers
    • 1 x Aura RGB header
    • 1 x Clear CMOS header
    • 1 x COM Port header
    • 1 x Front Panel Audio header (AAFP)
    • 1 x 20-3-pin System Panel header with Chassis intrusion function
    • 1 x Thunderbolt™ (USB4®) header
  • Special Features
  • ASUS TUF PROTECTION
    • DIGI+ VRM (- Digital power design with DrMOS)
    • ESD Guards
    • TUF LANGuard
    • Overvoltage Protection
    • SafeSlot
    • Stainless-Steel Back I/O
  • ASUS Q-Design
    • M.2 Q-Latch
    • PCIe Slot Q-Release
    • Q-Antenna
    • Q-Dashboard
    • Q-DIMM
    • Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
  • ASUS Thermal Solution
    • M.2 heatsinks
    • VRM heatsink design
  • ASUS EZ DIY
    • CPU Socket lever protector
    • ProCool
    • Pre-mounted I/O shield
    • SafeDIMM
  • AURA Sync
    • Addressable Gen 2 headers
  • Software Features
  • ASUS Exclusive Software
  • Armoury Crate
    • AURA Creator
    • AURA Sync
    • Fan Xpert 2+
    • Power Saving
  • ASUS DriverHub
  • ASUS GlideX
  • TurboV Core
  • TUF GAMING CPU-Z
  • DTS Audio Processing
  • Norton 360 for Gamers (60 Days Free Trial)
  • WinRAR (40 Days Free Trial)
  • UEFI BIOS
  • ASUS EZ DIY
    • ASUS CrashFree BIOS 3
    • ASUS EZ Flash
    • ASUS UEFI BIOS EZ Mode
    • ASUS MyHotkey
  • NPU Boost
  • BIOS: 192 (128+64) Mb Flash ROM, UEFI AMI BIOS
  • Manageability: WOL by PME, PXE
  • Operating System: Windows 11 (22H2 & later)
  • Form Factor:
    • mATX Form Factor
    • 24.4 cm x 24.4 cm

WHAT’S IN THE BOX:

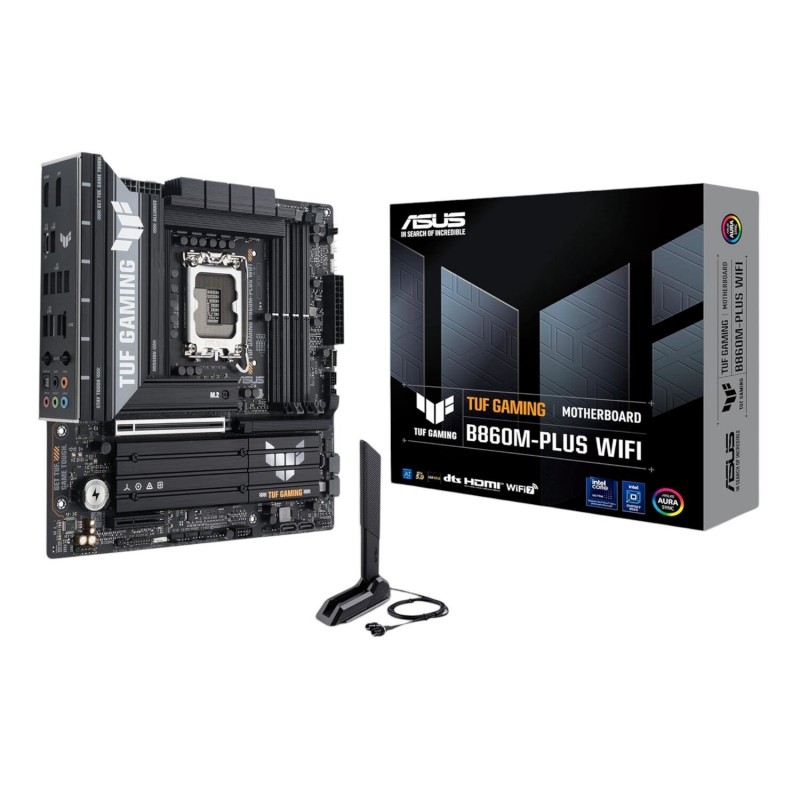

  • Asus TUF Gaming B860M-Plus Wi-Fi M-ATX Motherboard x1
  • SATA 6Gb/s cables  x2
  • ASUS WiFi Q-Antenna x1
  • M.2 Rubber Packages x2
  • TUF Gaming sticker x1
  • Screw package for M.2 SSD x1
  • Quick start guide x1
