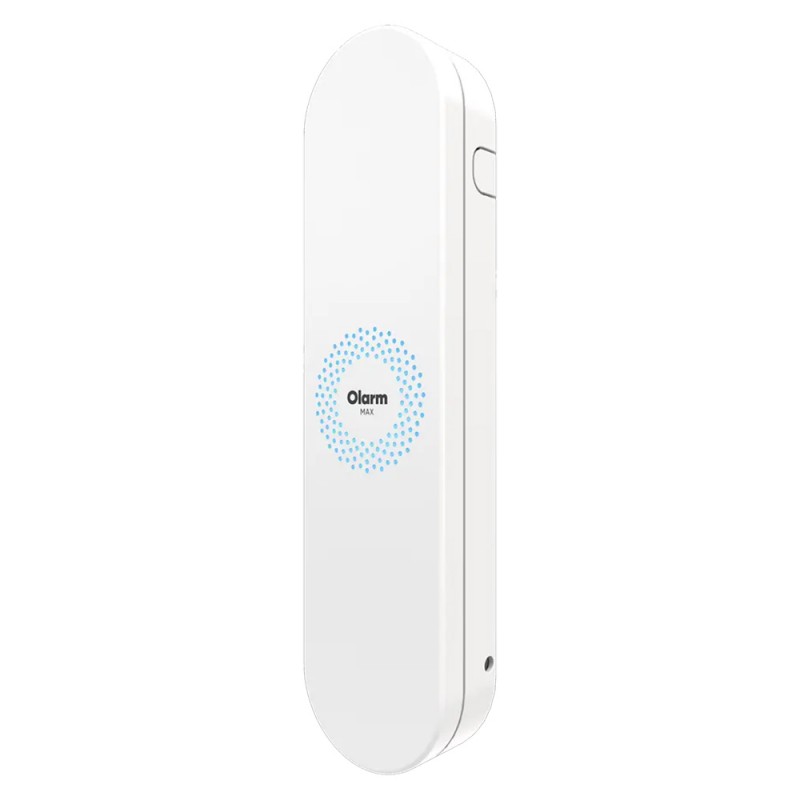

Olarm MAX - Ultimate Security Connection / WiFi / Dual SIM 4G / 2G

GW-L-Olarm MAX W4E
>Get registered and you will earn 11 points Get registered and you will earn 11 points (Each R100 spent = 1 point).
Your cart will total 11 points.
  • Area & Zone Label Sync: Yes
  • Multi-Area Control: Yes
  • Arm / Set: Yes
  • Disarm / Unset: Yes
  • Stay Arm: Yes
  • Part Arm: Yes
  • Zone Status: Yes
  • Bypass Zone / Omit: Yes
  • AC Status: Yes
  • Panel Outputs / PGM: Yes
  • Remote Programming: Yes
  • Time Sync: Yes
R1,075 incl. VAT
R935 excl. VAT
FREE DELIVERY

IN STOCK at GeeWiz!
If ordered before 10AM (excl. Weekends & Public holidays):
DELIVERED TODAY in JHB/PTA (R30 extra charge)
TOMORROW in CPT/DBN (main centres)
or 3-5 days (regional areas OR large/heavy packages)
COLLECTION from GeeWiz available SAME DAY
Also available for in-store purchase during business hours!

Or as low as R359 over 6 months interest-free, using your existing credit card. How it works

Volume discounts

Quantity Price You Save
5 R1,054 2%
10 R1,032 4%
37+ click to email

Quantity

Features

Supported Alarm Panels: Paradox, IDS X-Series & 806, Texecom Elite
Area & Zone Label Sync: Yes
Multi-Area Control: Yes
Arm / Set: Yes
Disarm / Unset: Yes
Stay Arm: Yes
Part Arm: Yes
Zone Status: Yes
Bypass Zone / Omit: Yes
AC Status: Yes
Panel Outputs / PGM: Yes
Remote Programming: Yes
Time Sync: Yes

Specifications

Peripheral Connection

Protocols: Serial & Keybus (depending on peripheral make & model)
Standard Cable Length: 1.5m
Maximum Cable Length: 3m
Connectors: 1 x 4 pin white Molex connector, 1 x 5 pin white Molex connector

Signals

Contact ID: Yes
Remote Connect Serial Bridge: Using Olarm Remote Connect for remote management

Software (Supported)

Babyware
Wintex
IDSwift

Mechanical Specifications

Packaged Weight: 195 g
Packaged Dimensions: 205 x 52 x 46 mm
Device Weight: 111 g
Cable Weight: 40 g
Device Dimensions: 200 x 50 x 20 mm
Enclosure Material: ABS - Resin MG47F
Status Indicator: RGB LED

Tamper Detection & Prevention

Enclosure: Tamper resistant design
Wall Mount: Includes tamper breakaway tab
Antennas: Tamper-proof internal antennas for 4G, and Wi-Fi
Tamper Detection: Optical sensor with alerts via Olarm APP and Contact ID

Power Supply

Voltage: 7 to 24VDC
Current: 100 mA (typical), 250 mA (max) @ 12 VDC
Supply Source: Typically supplied from the alarm panel / electric fence energizer via provided cable (ensure at least 300mA)

Internal Battery

Battery: 3.7V LiPo 1300mAh - 703845 or smaller
Connector: JST2
Battery Holder Dimensions: 8 x 38 x 45 mm
Note: Battery not included, sold separately

Operating Conditions

Temperature: –15 to 60°C
Humidity: 0 - 90% RH

Radio / Wireless Technologies

Connectivity: 4G, 2G & Wi-Fi (simultaneous multi-path routing)
Mobile Connectivity: 4G & 2G with tamper-proof internal & optional external antennas (SMA connectors)
Mobile Network Switching: Typically under 60 seconds (coverage & network dependent)

Regional Models

Olarm MAX A: South Africa, Africa & Europe
LTE-FDD Frequency Bands: B1/3/5/7/8/20/28
GSM Frequency Bands: B3/8

SIM Cards

South Africa: 2 x Olarm managed local SIM cards - Vodacom & MTN

Wi-Fi - 2.4GHz

Standards: IEEE 802.11b/g/n
Center Frequency Range: 2412 ~ 2484 MHz
Antenna Type: Tamper-proof internal

Data Rate

20MHz: 11b: 1, 2, 5.5, 11 Mbps; 11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps; 11n: MCS0-7, 72.2 Mbps (Max)
40MHz: 11n: MCS0-7, 150 Mbps (Max)

Tx Power: 13 to 19.5 dB (Data rate dependent)
Rx Sensitivity: -69 to -97 dBm (Data rate dependent)
Encryption: WPA2-PSK
WPS Setup: Yes

Configuration

Setup: Plug-and-play zero configuration via device QR Code scan within Olarm APP
Olarm APP Users: Unlimited (requires active subscription)

Package Contents

1x Olarm MAX
1x Tamper-proof wall mount
Mounting hardware
1x Reversible 1.5m peripheral cable

Compatible Alarm Panels

Paradox

MG5050 (minimum panel firmware v1.11.001)
MG5050+ (minimum panel firmware v1.11.001)
SP6000 (minimum panel firmware v1.10.004)
SP6000+ (minimum panel firmware v1.10.004)
SP65
EVO192

Texecom

Elite 24
Elite 48 (coming soon)
Elite 64
Elite 64-W
Elite 64-W LIVE
Elite 88
Elite 168
Elite 640 (coming soon)

IDS

806 (requires adapter board - sold separately)
X16 (requires adapter board - sold separately)
X64 (requires adapter board - sold separately)
X64 Serial (requires adapter board - sold separately)

Orisec

ZP-20 (coming soon)
ZP-40 (coming soon)
ZP-100 (coming soon)

Honeywell

Galaxy G2 (coming soon)

Pyronix

(coming soon)

Olarm
GW-L-Olarm MAX W4E
