Blackmagic Design Micro Converter HDMI to SDI 3G (Power Supply included)

GW-T-Blackmagic Micro Converter
>Earn 13 points/R13 Earn 13 points/R13 (Each R100 spent = 1 point, 1 point = R1 discount)
Your cart will total 13 points that can be converted into a voucher of R13.
  • 1 x HDMI Input, 2 x SD/HD/3G-SDI Outputs
  • Selectable SD/HD Level A/B SDI Ports
  • Supports up to 1080p60 Resolution I/O
  • USB Power/SDI re-clocking/Timecode
  • Automatic Input Signal Detection
  • Compact, Rugged Design
  • Embedded Audio
  • LED Video & Power Signal Indicators
R1,296 incl. VAT
R1,127 excl. VAT
FREE DELIVERY

Volume discounts

Quantity Price You Save
5 R1,244 4%
10 R1,218 6%
30+ click to email

IN STOCK AT OVERSEAS SUPPLIER - DISPATCHED/COLLECTION IN 14-20 DAYS

Quantity

PRODUCT DESCRIPTION

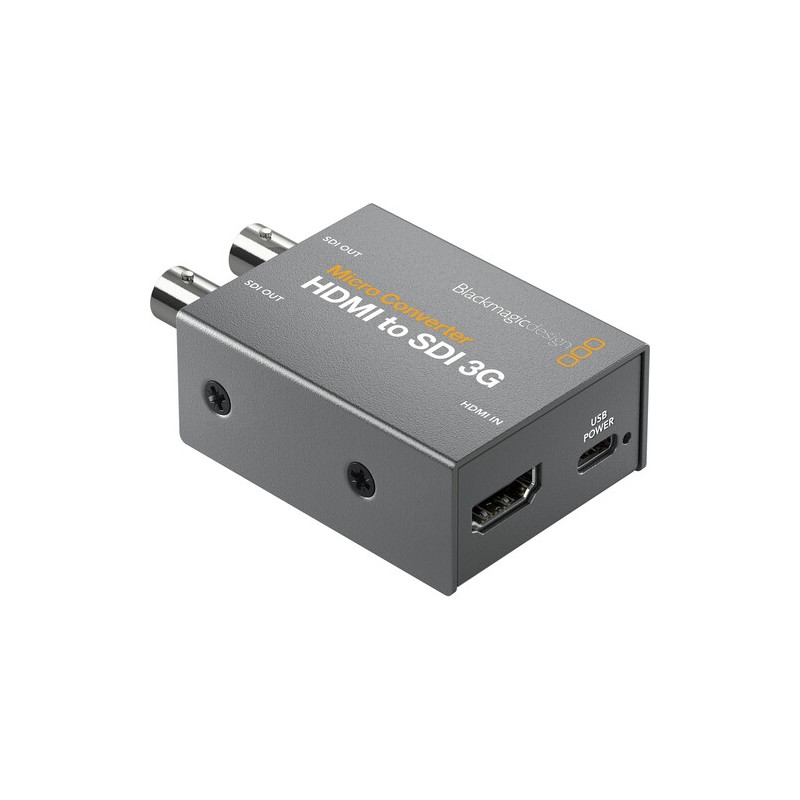

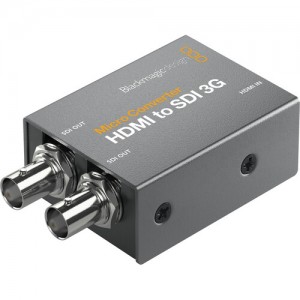

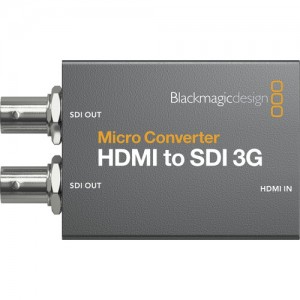

Super compact and rugged, the Micro Converter HDMI to SDI 3G from Blackmagic Design enables you to link HDMI cameras or computers to pro-style SDI (BNC) monitors or components. You can also use several units to extend HDMI over long distances using SDI cable. This compact converter has one HDMI input and two 3G-SD/HD/SDI outputs that can be set to Level A or B. It auto-detects and matches your HDMI input to the SDI output and is compatible with input/output resolutions up to 1080p60. The Micro Converter HDMI to SDI 3G features HDMI timecode support, SDI re-clocking for stability over long cable runs, and support for a wide range of pro broadcast resolutions including cine-style 48 fps.

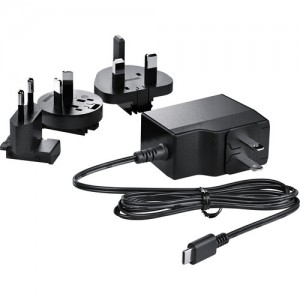

This pocket-sized converter features a sturdy metal housing with power and signal LED status indicators and rugged connector interfaces. A USB Type-C port enables the HDMI to SDI 3G converter to easily connect to and be powered by large-screen monitors, laptops, desktop computers, or projectors. You can also power this converter using the included 100-240 VAC power supply, complete with four international socket adapters.

  • Dual SDI Outputs
  • One HDMI input
  • Two 3G-SDI outputs
  • Selectable A and B level formats

Compact, Rugged Design

  • Robust metal housing and rugged connectors
  • USB Type-C port for powering via a compatible component like a monitor or laptop
  • Updatable via the USB Type-C port and your Mac or PC

SDI & HDMI Timecode

  • HD and SD timecode support
  • Converts HDMI timecode to SDI

SDI Re-Clocking

  • Built-in re-clocking on 3G-SDI output enables stable output over longer cable runs
  • Compatible with SMPTE 259M/292M/296M/424M/425M level A and B

Wider Resolution Support

  • SDI support from NTSC and PAL up to DCI 2Kp60
  • HDMI support from NTSC and PAL up to 1080p60

Embedded Audio

Supports embedded HDMI input and embedded SDI output

LED Indicators

LED indicators for video and power signals

Versatile Power Options

  • Power from a monitor, laptop, or other component using the USB Type-C port

PRODUCT SPECIFICATIONS

Input

  • Video Input Connectors: 1 x HDMI (HDMI 2.0)
  • Input Video Format: HDMI (8/10-Bit 4:2:2 RGB, YUV)

1080p: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080i: 50/59.94/60 fps
720p: 50/59.94/60 fps
NTSC: 29.97 fps
PAL: 25 fps

  • Audio Input Connectors: None
  • Embedded Audio Input: HDMI

Output

  • Video Output Connectors: 2 x BNC (3G-SDI / HD-SDI / SD-SDI)
  • Output Video Format: SDI (8/10-Bit 4:2:2 RGB, YUV)

DCI 2K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
DCI 2KPsF: 25/29.97/30 fps
1080p: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080PsF: 25/29.97/30 fps
1080i: 50/59.94/60 fps
720p: 50/59.94/60 fps

NTSC: 29.97 fps
PAL (768 x 576): 25 fps

  • Audio Output Connectors: None
  • Embedded Audio Outpu: SDI

Standards

  • Video Standard Compliance: SMPTE 259M/292M/296M/424M/425M
  • HDCP Support: Version 2.2

Connectivity

  • Other I/O: 1 x USB Type-C Input
  • Expansion Slots: None

Hardware

  • OS Compatibility: macOS 10.14.15 or Later, Windows 10

Power

Power Connector: 1 x USB Type-C (4.4 to 5.2 VDC) Input

Power Consumption: 2 W

Environmental

  • Operating Temperature: 32 to 104°F / 0 to 40°C
  • Storage Temperature: -4 to 140°F / -20 to 60°C
  • Operating Humidity: 0 to 90%

General

  • Dimensions: 76.45 x 45.7 x 24.89 mm
  • Weight: 150 g
