5 Port 10/100 Switch
Get registered and you will earn 1 point
(Each R100 spent = 1 point).Your cart will total 1 point.
- Comply With IEEE802.3, IEEE802.3ii, IEEE 802.3u, IEEE802.3x IEEE802.3az Ethernet Standards
- Support 5 x 10/100Mbps Auto-Negotiation RJ45 Ports,
- Support Auto MDI/MDIX
- Supports IEEE802.3x Flow Control Tor Full-Duplex Mode And Backpressure For Half-Duplex Mode
- Supports IEEE802.3az Energy Efficient Ethernet (EEE) Technology
IN STOCK at EXTERNAL supplier.
If ordered before 10AM:
DELIVERED 2-3 business days (main centres)
or 4-5 business days (regional areas or large items)
COLLECTION from GeeWiz available 1-2 days

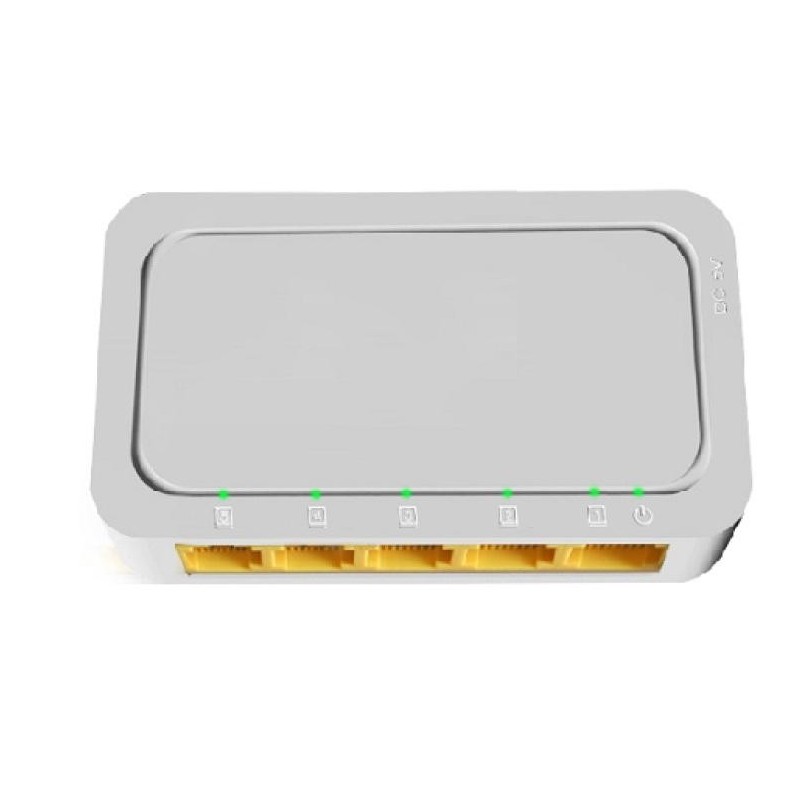

MLINK 5 PORT 10/100 SWITCH - TXE070
5-Ports 10/100Mbps Unmanaged Switch
Description
TXE070 Is A 10/100Mbps Non-Management Switch Which Provides 5 10/100Mbps RJ45 Ports
And Supports Wire Speed Forwarding Of All Ports
It Supports IEEE802.3az Energy Efficient Ethernet (EEE) Technology
- IEEE802.3x Full Duplex flow control function and Half Duplex back pressure flow control function
- TXE070 has a Durable Design, quiet operation, simple and Convenient Use
- No Configuration, Plug and Play, very suitable for Small Office
Home Office (SoHo), Small And Medium Business (SMB) Environment
Features
- Comply With IEEE802.3, IEEE802.3ii, IEEE 802.3u, IEEE802.3x IEEE802.3az Ethernet Standards
- Support 5 x 10/100Mbps Auto-Negotiation RJ45 Ports,
- Support Auto MDI/MDIX
- Supports IEEE802.3x Flow Control Tor Full-Duplex Mode And Backpressure For Half-Duplex Mode
- Supports IEEE802.3az Energy Efficient Ethernet (EEE) Technology
- 1K Entry MAC Address Table of the Switch with Auto-Learning and Auto-Aging
- LED Indicators for Monitoring Port Link / Activity
- External Power Supply, Exquisite Plastic Design, suitable for Desktop Install and Use
Specification
- Model Name: TXE070
- Chipset: IP175G
- Standards And Protocols: IEEE802.3, IEEE802.3ii, IEEE 802.3u, IEEE802.3x, IEEE802.3az
- Interface: 5 x 10/100Mbps Auto-Negotiation Ports
- Network Media :10Base-T: UTP Category 3, 4, 5 Cable (Maximum 100m)
- 100Base-Tx: UTP Category 5, 5e cable (Maximum 100m)
- Transfer Method: Store-and-Forward
- MAC Address Table: 1K
- Switching Capacity: 1Gbps
- Packet Forwarding Rate: 744Kpps
Indicators
- Per Device Power
- Per Port Link/Activity
- Power Supply DC:5V,0.5A External Power
- Power Consumption Maximum: 1.3W
- Dimensions (W x D x H): 88.2 x 52.7 x 21.8mm
Environment
- Operating Temperature: 0 - 45
- Storage Temperature: -40 - 70
- Operating Humidity: 10% - 90% Non - Condensing
- Storage Humidity: 5% - 90% Non-Condensing
