- Plastic shell of solid and robust design for long service life.
- Corrosion resistance, UV Stabilised, fibreglass reinforced polymer plastic.
- Optimum accuracy and performance in any position (horizontal or vertical).
- Grooved rotary piston.
- Clear, easily read, liquid sealed 8 digit counter.
- Measuring accuracy approved to SANS 1529-1.
- Internal Non-Return Valve and Strainer.
- Each meter has a unique serial number.
- Pulse prepared.
- Inlet and Outlet threads compatible with ISO metric sizes.

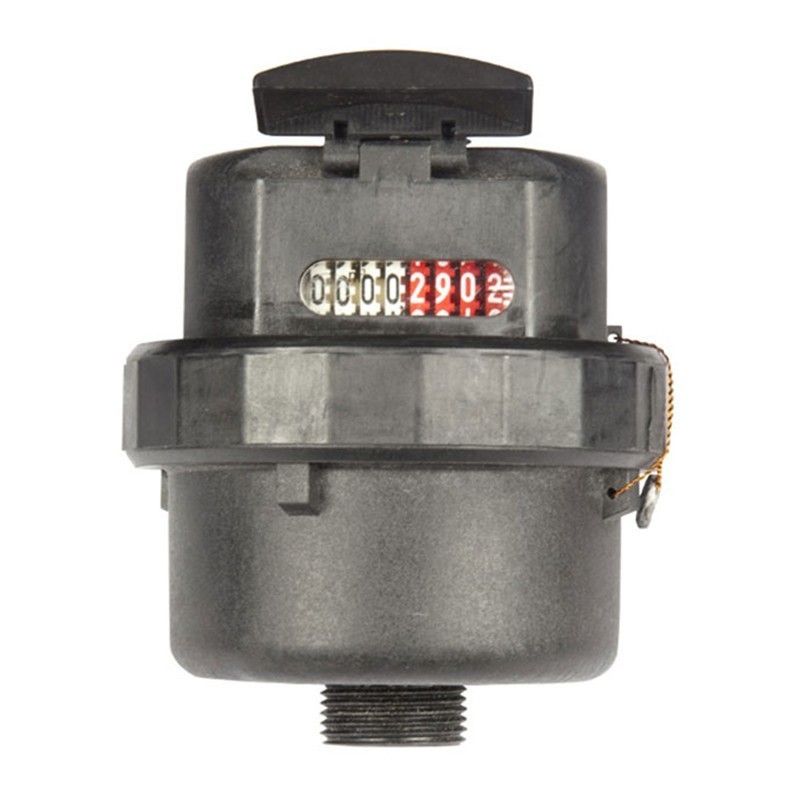

Water Meter 15MM Piston Type Plastic
6009507842711
Get registered and you will earn 5 points
(Each R100 spent = 1 point).Your cart will total 5 points.
- Plastic shell of solid and robust design for long service life.
- Corrosion resistance, UV Stabilised, fibreglass reinforced polymer plastic.
- Optimum accuracy and performance in any position (horizontal or vertical).
- Grooved rotary piston.
- Clear, easily read, liquid sealed 8 digit counter.
- Measuring accuracy approved to SANS 1529-1.
- Internal Non-Return Valve and Strainer.
- Each meter has a unique serial number.
- Pulse prepared.
- Inlet and Outlet threads compatible with ISO metric sizes.
R500 incl. VAT
R435 excl. VAT
IN STOCK at EXTERNAL supplier.
If ordered before 10AM:
DELIVERED 2-3 business days (main centres)
or 5-7 business days (regional areas or large items)
COLLECTION from GeeWiz available 2-3 business days (approx 4:30pm)
Or as low as R167 over 6 months interest-free, using your existing credit card. How it works
APPLICATION
- Measures the volume of clean, cold water passing through a pipeline.
- Domestic billing purposes.
FEATURES
- Plastic shell of solid and robust design for long service life.
- Corrosion resistance, UV Stabilised, fibreglass reinforced polymer plastic.
- Optimum accuracy and performance in any position (horizontal or vertical).
- Grooved rotary piston.
- Clear, easily read, liquid sealed 8 digit counter.
- Measuring accuracy approved to SANS 1529-1.
- Internal Non-Return Valve and Strainer.
- Each meter has a unique serial number.
- Pulse prepared.
- Inlet and Outlet threads compatible with ISO metric sizes.
MAXIMUM PERMISSIBLE ERRORS
- In the lower zone from qmin inclusive up to but excluding qt is plus minus 5 percent.
- In the upper zone from qt inclusive up to and including qs is plus minus 2 percent.
WORKING CONDITIONS
- Working temperature: 2 degree Celsius to 40 degree Celsius.
- Nominal pressure: 1600 kPa (16 Bar).
- Maximum test pressure: 4800 kPa (48 Bar).
COMPLIANCE STANDARD
- Conforms to SANS 1529-1:2006 (Class C).
- Conforms to ISO4064: Class C.
INSTALLATION REQUIREMENTS
- May be installed on a horizontal or vertical pipeline.
- Pipeline must be flushed before installation.
- Meters should be constantly full of water during operation.
IMPORTANT NOTICE
- Meter to be used with plastic Tailpieces or Connectors.
- No Hemp to be used during installation.
- No soldering or heat to be applied during installation.
Do not remove meter from installaion as that will void warrenty.
