Blackmagic Design ATEM Television Studio Pro 4K Live Production Switcher

GW-T-Blackmagic Design Production Switcher
>Earn 786 points/R786 Earn 786 points/R786 (Each R100 spent = 1 point, 1 point = R1 discount)
Your cart will total 786 points that can be converted into a voucher of R786.
  • 8-Channel 12G-SDI Switcher
  • HD and UHD Signal-Compatible to 2160p60
  • 12-Input, 2-Channel Audio Mixer
  • Re-Sync on All Inputs
  • UHD 4K Multiview Output
  • Low-Latency Converter
  • Built-In Talkback Feature
  • CCU Control for Select Cameras
  • ATEM Advanced Chroma Keyer
  • Powerful DVE Processor, 2 x Clip Pool
R78,645 incl. VAT
R68,387 excl. VAT
FREE DELIVERY

IN STOCK AT OVERSEAS SUPPLIER - DISPATCHED/COLLECTION IN 16-20 DAYS

Volume discounts

Quantity Price You Save
5 R77,073 2%
10 R75,500 4%
30+ click to email

Quantity

* This product includes a USA to SA adapter for it to work in SA

PRODUCT DESCRIPTION

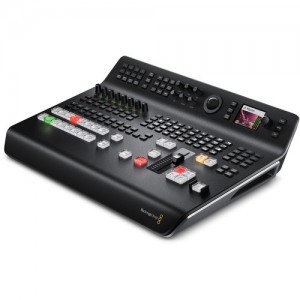

The Blackmagic Design ATEM Television Studio Pro 4K is a UHD 4K-compatible, 8-input live production switcher with an integrated control panel, suitable for broadcast, sports, web, and A/V productions. This versatile switcher's eight independent 12G-SDI inputs accept all popular HD and UHD signals up to 2160p60. A re-syncing feature on each input enables you to seamlessly use an amalgam of pro and consumer cameras, game consoles, and computer feeds.

Switch, add effects, color grade, and key in real-time using the control surface's buttons, knobs, and slider. CCU functions are available for controlling Blackmagic Studio and URSA Mini/Broadcast/Micro Studio cameras from the switcher. A software-based control panel is included and may be used independently, or on multiple laptops for delegating multicamera control. The ATEM Advanced Chroma Keyer, with one upstream and two downstream keys, offers live graphics and virtual set creation with improved image control and spill correction. Create PiP effects, resize and scale live video, and choose from 17 powered transitions with the ATEM Television Studio Pro 4K'S DVE processor.

Multi-view output is available for all eight channels, via HDMI or SDI, complete with tally, labeling, audio metering, and safe-area marking. A talkback function is available for director/operator communication with compatible cameras. The integrated Fairlight audio mixer features six-band parametric EQ, compression, limiting, and stereo simulation on analog and mic inputs. Mix solely from the panel, or use the multitrack interface on your Mac or Windows PC. Use the auxiliary output port to send your switched program or clean feed to a large-scale screen or other display.

  • Eight 12G-SDI inputs, each with re-sync and low-latency conversion
  • Supports HD video signals up to UHD 4K 2160p60
  • 12-input, 2-channel Fairlight audio mixer
  • UHD 4K multiviewer with up to 10 windows
  • CCU functions for compatible cameras
  • ATEM advanced chroma keyer
  • Integrated talkback feature for compatible cameras
  • Powerful DVE processor, 2-clip media pool with fill and key
  • Mac and PC compatible

PRODUCT SPECIFICATIONS

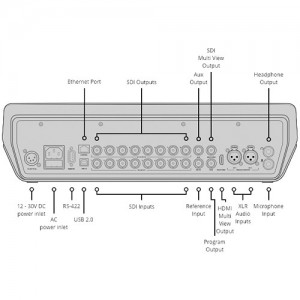

I/O
Inputs 12G/HD/SD-SDI: 8 x BNC
Audio: 2 x 3-Pin XLR
Reference: 1 x BNC
Outputs 12G/HD/SD-SDI: 8 x BNC
Auxiliary: 1 x BNC
Program: 1 x BNC
Multiview: 1 x BNC
Multiview: 1 x HDMI
Headphone: 1
Other 1 x RS-422
1 x Ethernet
1 x USB 2.0
1 x AC Power In
1 x 4-pin XLR Power In
Standards
Format Support UHD Video:
2160p: 59.94/50/29.97/25/24/23.98

HD Video:
1080p: 59.94/50/29.97/25/24/23.98
1080i: 59.94/50
720p: 59.94/50

Input Resolutions for Computers
2160p: 59.94/50/30/29.97/25/24/23.98
1080p: 59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 59.94/50
SDI Compliance 292M, 424M
2081, 2082
Video Sampling 4:2:2, 10-Bit
Color Precision 4:2:2, 10-Bit
Color Space 4:2:2 YUV
Color Space Conversion None
Processing Delay 6 Lines
General
Audio Mixer 12-Input x 2-Channel Mixer
Keyers Upstream: 1 with Chroma/Linear/Luma Key
Downstream: 2
Chroma: 1
Linear/Luma: 3
Transition (Stinger/DVE): 1
Layers Up to 5
Generators Pattern: 2
Color: 2
DVE Border and Drop Shadow: 1
Number of Windows Multiview: 1 x 10
Routable: 8
Fixed, Program, and Preview: 2
Media Player Players: 2 (Non-Volatile Flash Memory)

Media Pool Still Image Capacity: 20 (with Fill and Key)

Media Pool Still Image Format: PNG, TGA, BMP, GIF, JPEG, TIFF

Channels: Fill and Key for Each Media Player

Media Pool Clip Capacity: 2 (with Fill and Key / Shared Pool)

Media Pool Clip File Format: TGA Sequence

Media Player Clip Length:
UHD 4K: 90 Frames
1080 HD: 360 Frames
720 HD: 1440 Frames

Media Pool Audio File Format: WAV, MPE, AIFF
Operating System Support MacOS 10.12 Sierra
MacOS High Sierra 10.13 or Higher
Windows 8.1 or 10
Power Supply AC: 110-240 VAC Internal
DC: 1 x 4-Pin XLR
Power Draw 70 W
Environmental Operating: 41 to 104°F / 5 to 40°C
Storage: -4 to 140°F / -20 to 60°C
Relative Humidity: 0 to 90% Non-Condensing
Dimensions (WxD) 16.65 x 11.89" / 42.29 x 30.2 cm
