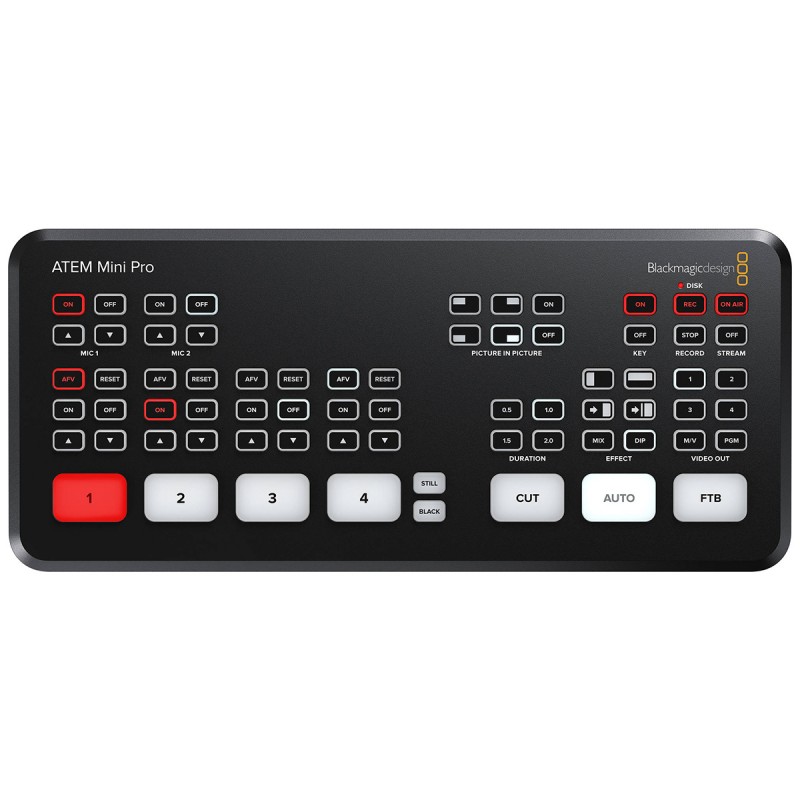

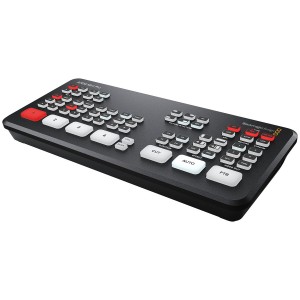

Blackmagic Design ATEM Mini Pro - 4 Channel Live Stream HDMI  Switcher

Blackmagic Design ATEM Mini Pro - 4 Channel Live Stream HDMI Switcher

GW-T-Blackmagic Design ATEM Mini Pro
>Earn 86 points/R86 Earn 86 points/R86 (Each R100 spent = 1 point, 1 point = R1 discount)
Your cart will total 86 points that can be converted into a voucher of R86.
  • 4-Channel Live Stream HDMI Switcher
  • Control up to Four BMPCC 6K/4K Cameras
  • Live Tally, Stream and Record Status
  • Record Button, Channel Preview Multiview
  • 2-Channel Digital Audio Mixer per Source
  • HDMI Output, Ethernet ATEM Control
  • Media Player, Computer Input Support
  • Upstream and Downstream Keyers
  • Color and Pattern Generators
  • DVE Transition, Chroma/Luma Keyers
R8,575 incl. VAT
R7,457 excl. VAT
FREE DELIVERY

IN STOCK AT OVERSEAS SUPPLIER - DISPATCHED/COLLECTION IN 14-20 DAYS

Volume discounts

Quantity Price You Save
5 R8,404 2%
10 R8,232 4%
30+ click to email

Quantity

Similar to its predecessor, the ATEM Mini, the ATEM Mini Pro from Blackmagic Design is a four-input live production switcher with an integrated control panel designed for multicamera live streaming up to HD video to the internet or broadcast applications from gaming consoles, corporate computer streams, or HD cameras. Along with the software control update, the Mini Pro builds on the Mini with features such as live stream data rate and status information, a built-in hardware encoder, simultaneous recording to USB drives, drive hot swapping with the Blackmagic MultiDock, added record and stream buttons, stream caching, a timecode generator, program preview multiview, tally support, and support for Blackmagic Design Pocket Cinema Camera 6K and 4K to utilize as your broadcast sources.

Features

- Same rear panel as ATEM Mini with added buttons and software features
- Stream video up to 1080p HD
- Quick stream, on-air and record buttons
- Hardware encoder so there's no need for additional streaming software
- Control and configure timecode, stream status
- Full support and control features for BMPCC 6K and 4K cameras
- Simultaneous USB recording to computer via USB Type-C
- Integration with MultiDock for live hard drive switching
- Customize advanced settings with XML files
- Software multiview with program previews, graphics, record status, on air status, audio meters
- Program preview input and output buttons
- Tally light control for BMPCC 6K/4K cameras
- Automatic timecode sync for all cameras

Specifications

- Available M/E Layers: 5 M/E
- Effect Types: 1 x DVE, Graphic, Transition, Chroma Key, Alpha Key, Luma Key
- Downstream Keys: 1 x Chroma, DVE, 2 x Luma
- Audio Mixing: 2-Channel Mixing

Processing

- Switching Type: Pushbutton

Input

- Number of Video Input Sources: 4
- Video Input Connectors: 4 x HDMI Female
- Input Video Format: HDMI (10-Bit 4:2:2 YUV), 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps, 1080i 50/59.94/60 fps, 720p 50/59.94/60 fps
 -Audio Input Connectors: 2 x 1/8" / 3.5 mm TRS Stereo Analog Female
- Embedded Audio Input: HDMI: 2-Channel (per Input)

Output

- Video Output Channels: 1
- Video Output Connectors: 1 x HDMI
- Output Video Format: HDMI / RJ45 (10-Bit 4:2:2 YUV), 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
- Embedded Audio Output: HDMI: 2-Channel (per Output)
- Multiview Output: Yes
- Monitor Output: 1 x HDMI

Connectivity

Other I/O

- 1 x RJ45 LAN, Sync, Tally, Timecode, Firmware, Control Input/Output
- 1 x USB Type-C Firmware, Control Input/Output

Hardware

- OS Compatibility: macOS 10.14 or Later, Windows 10, *As of April, 2020: Check with manufacturer for the most up-to-date compatibility
- Power Connector: 1 x Barrel (12 VDC) Input
- Power Consumption: 36 W

Environmental

- Operating Temperature:  5°C to 40°C
- Storage Temperature: -10°C to 60°C
- Operating Humidity: 0 to 90%

General

- Dimensions: 23.75 x 10.34 x 3.51 cm / 9.35 x 4.07 x 1.38"
- Weight: 550 g

Packaging Info

- Package Weight: 1 kg
- Box Dimensions: 29.9 x 14.4 x 11.9 cm /  11.8 x 5.7 x 4.7"
