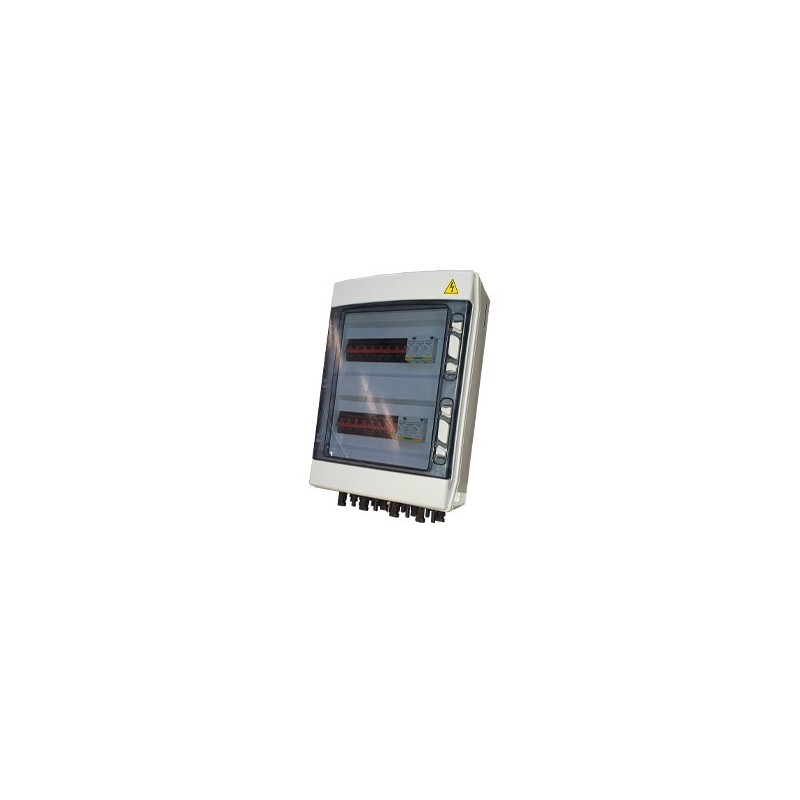

1000V 4-MPPT Protection Box 8-In 8-Out 20A Type I & II SPD
Get registered and you will earn 324 points
(Each R100 spent = 1 point).Your cart will total 324 points.
Ensure reliable photovoltaic system protection with this comprehensive 1000V protection box, designed for compatibility with inverters containing up to four MPPT charge controllers. Pre-fitted with MC4 connectors and a gland output for earthing, it offers efficient string protection.
- Features 8 PV input pairs and 8 output pairs with pre-fitted MC4 connectors.
- Equipped with a gland output for proper earthing.
- Each string is protected by a 20A circuit breaker.
- DC isolation rated at 20A and 1000V.
- Includes Type 1 & 2 DC SPDs as standard for lightning-prone sites.
IN STOCK at EXTERNAL supplier.
If ordered before 10AM:
DELIVERED 3-4 Days (main centres)
or 5-6 days (regional areas or large items)
COLLECTION from GeeWiz available in 3-4 Days
The 1000V 4-MPPT Protection Box is engineered to safeguard your photovoltaic installation, offering robust protection for setups utilizing up to four MPPT charge controllers with each SPD protecting the entire MPPT.
- Designed with 8 PV input pairs and 8 output pairs for seamless system integration.
- Fitted with pre-fitted MC4 connectors on inputs and outputs for installation convenience.
- Includes a dedicated gland output for secure earthing.
- Each string is independently protected by a reliable 20A circuit breaker.
- Features DC isolation rated at 20A and 1000V for enhanced safety.
- Contains Type 1 & 2 DC SPDs as standard, ideal for installation sites that experience frequent lightning strikes.
- Compatible with inverters containing a maximum of 4 x MPPT charge controllers, with each SPD protecting the entire MPPT.
Please note that this product must be installed by a qualified electrician or technician in strict accordance with local wiring regulations and standards.
Specifications
| Input Configuration | 8 PV input pairs with pre-fitted MC4 connectors |
| Output Configuration | 8 PV output pairs with pre-fitted MC4 connectors |
| Circuit Protection | 20A circuit breaker per string |
| DC Isolation Rating | 20A and 1000V |
| Surge Protection | Type 1 & 2 DC SPDs |
| MPPT Compatibility | Maximum of 4 x MPPT charge controllers |
