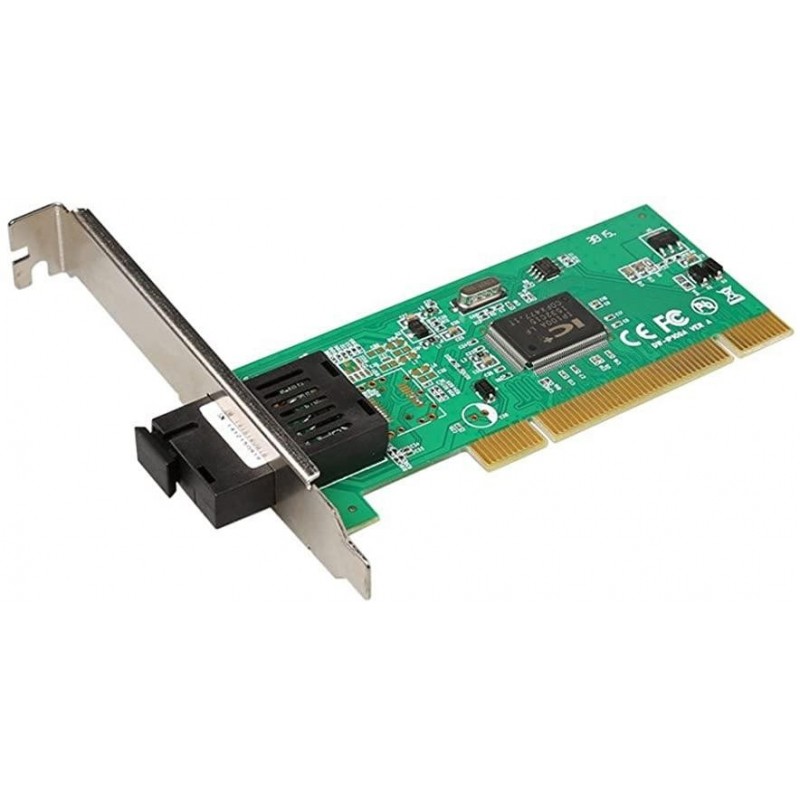

PCI Fibre Card 100MBPS T1550
Get registered and you will earn 5 points
(Each R100 spent = 1 point).Your cart will total 5 points.
IN STOCK at EXTERNAL supplier.
If ordered before 10AM:
DELIVERED 2-3 business days (main centres)
or 4-5 business days (regional areas or large items)
COLLECTION from GeeWiz available 1-2 days
PCI FIBRE CARD 100MBPS - TXA025-01
Product specification
Model number: TXA025
Chipset: ICplus IP100A Ethernet Controller
Port number: 2 x SC or 1 x SC
Standard: IEEE 802.3?IEEE 802.3u?IEEE 802.3x?IEEE 802.1p
Data Rate: 10/100Mbps
Transmission Distance: 20 km
Interface: PCI
LED Indicator: 10/100Mb(Link/Act)
Dimension: 120 x 51 x 13.8mm
Support OS
Windows 10(32/64), 8 / 8.1 (32/64), 7 (32/64), Vista(32/64), XP(32/64), 2000
Windows Server 2012, 2008 R2, 2003(32/64)
Mac OS 10. x (Intel based, tested up to 10.9)
Linux 2.4. x and later (Tested up to 3.5)
Environment
Operating Temperature: 0 -70
Relative Humidity: 10%-90% (non-condensing)
Storage Temperature: -0?-80
Relative Humidity: 5%-90% (non-condensing)
Other Functions: WOL
Support PXE
Chipset Description:
The IP100A is a single-chip, full duplex, 10/100Mbps Ethernet MAC + PHY incorporating a 32-bit PCI with bus master support
The IP100A is designed for use in a variety of applications including workstation NICs, PC motherboards, and
Other systems utilizing a PCI bus that require network connectivity to an Ethernet or Fast Ethernet LAN.
The IP100A includes a PCI bus interface unit, IEEE 802.3 compliant MAC, transmit and receive FIFO buffers
IEEE 802.3 compliant 100BASE-TX, 10BASE-T, and 100BASE-FX PHY, serial
EEPROM interface, expansion ROM interface, and LED drivers
The IP100A implements a rich set of control and status registers
Accessible via the PCI interface, these registers provide a host system visibility into the features
And operating state of the IP100A
Network management statistics are also recorded
And host access to registers of the PHY device are facilitated through the IP100A's PCI interface
The IP100A supports features for use in "Green PCs" or systems where control over system power consumption is desired
The IP100A supports several power down states, and the ability to issue a system
Wake event" via reception of unique user defined Ethernet frames
In addition, the IP100A can assert a wake event in response to changes in the Ethernet link status
Features:
Single chip 10/100BASE, half or full duplex Ethernet Media Access Controller
IEEE 802.3 compliant 100BASE-TX/100BASE-FX/10BSE-T
PCI Bus master scatter/gather DMA on any byte boundary
Full operation with PCI Clock from 25 MHz to 33 MHz
PCI Revision 2.2 compliant
On-chip transmit and receive FIFO buffers
On-chip LED drivers
Power management capabilities for ACPI 1.0 compliant systems
WakeOnLAN support
Management statistics gathering
IP multicast receive and filter support using 64 bit hash table
Transmit polling
Auto pad insertion for short packets
Programmable minimum Inter Packet Gap
Programmable transmit and receive FIFO watermarks
Smart Cable Analyzer (SCA) Support
Capable of using 93C46 or 93C56 EEPROM
On-chip crystal oscillator
On-chip voltage regulator
2.5/3.3V CMOS with 5V tolerant I/O
0.25µm technology
128-pin PQFP
