Barcode Scanner

DS6202B
>Get registered and you will earn 11 points Get registered and you will earn 11 points (Each R100 spent = 1 point).
Your cart will total 11 points.

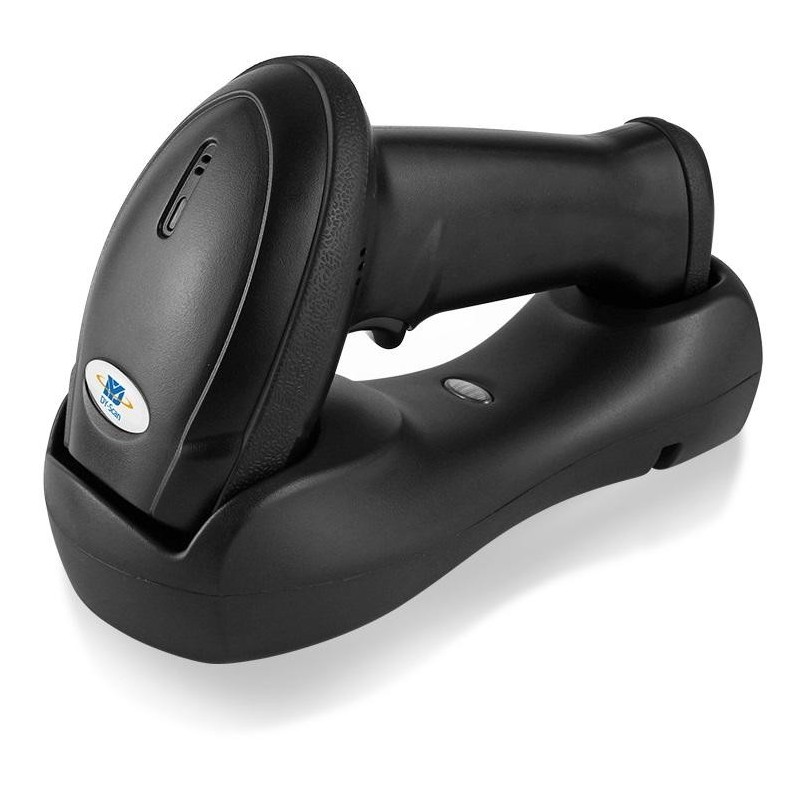

2D WIRELESS BARCODE SCANNER WITH STAND
R1,057 incl. VAT
R920 excl. VAT
FREE DELIVERY

IN STOCK at EXTERNAL supplier.
If ordered before 10AM:
DELIVERED 2-3 business days (main centres)
or 4-5 business days (regional areas or large items)
COLLECTION from GeeWiz available 1-2 days

Or as low as R353 over 6 months interest-free, using your existing credit card. How it works

Volume discounts

Quantity Price You Save
5 R1,036 2%
10 R1,015 4%
38+ click to email

Quantity

DY BARCODE SCANNER - DS6202B

Product Description

DS6202 is a high-performance 2D barcode scanner with leading CMOS image recognition technology

It can easily read the paper, goods, screen and other media barcodes

Widely used in manufacturing, warehouse, logistics, health care, retail chain, mobile payment

Express delivery, inventory management, food traceability, asset inventory, etc

Features

Ergonomic design, comfortable using

Read all the mainstream 1D & 2Dcodes in the market easily

High-performance processor, fast decoding (3mil)

Support interface: USB

Support multiple languages and systems

Interface: USB, Wireless 2.4G Bluetooth

Long tramission distance, intelligent automatic connection when its beyond range

Not manual setting

Widely used in  supermarket, warehouse, mobile payment, chain stores

Application

Supermarket

Warehouse

Mobile payment

 Retail chain

Courier

Health care

Cable Interface DS6202B scanner must be connected with terminals, PC host, POS and Android host etc.

Performance

Scan Type: CMOS

Light Source: Red light LED 625nm (aiming & Illumination )

CPU: 32-bit

Resolution: 4mil

Decoding speed: 35CM/S

Depth Of Field:  35mm-500mm

Scan Mode: Manual, Auto sense

Scan Angle: Roll360 ,Pitch±60 ,Skew±55 (PCS90%, Code 39,10mil / 0.25mm)

Print Contrast Signal: 20%

Ambient Light: Dark environment , indoor natural light

Wireless communication mode: Synchronization , storage

Wireless transmission distance: 2.4GHz 100m, Bluetooth 30m,(Open distance)

Storage 350Kb:(over 20,000 Product code)

Battery capacity: 2200mAh

Battery charging time: About 7 h

Continuous working time: 15 h

Symbologies: 1D:UPC-A, UPC-E, EAN-8, EAN-13, Code 128, GS1-128, Code 39,Code 32

Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5

(Straight 2 of 5) Codabar (NW-7),  MSI, GS1 Databar (Omnidirectional, Limited, Expanded), etc

2D: QR Code, Micro QR Code, Data Matrix, PDF417, Micro PDF 417, Aztec, Maxicode etc

Physical Parameter

Weight: 205g(scanner), 230g(base)(without cable)

Dimension: L175mm x W72mm x H100mm

L200mm * W90mm * H51mm(Communication base)

Interface Type: USB

Communication: USB, Wireless 2.4G, Bluetooth

Power Supply: DC 5V@180mA(work)

Environmental

Operating Temperature: 20 to 50

Storage Temperature: 20 to 60

Humidity: 5% to 95%(non-condensing)

Drop Height: 1.8m

Temp. Test: 30 minutes for high Temp., 30 minutes for low Temp

 High Temp. 60

Low Temp. -20

Transport Vibration Test: 10H@125RPM

Accessories List

Cable: USB, Connect The Scanner To A Host Device And Charging

Communication: Used to receive and transmit scanner data

No USB Receiver Included

Stand To Be Connected To Host Device Through USB Cable






Microworld
DS6202B
