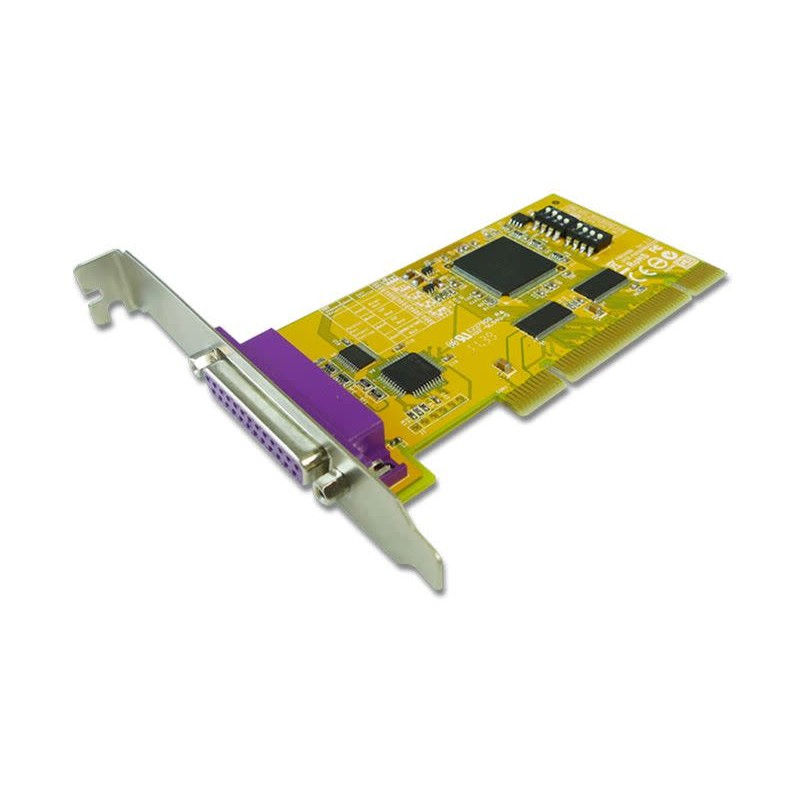

Sunix PAR5008R PCI 1-Port Remappable Parallel IEEE1284 Card

AC-SI5008R+L
>Earn 8 points/R8 Earn 8 points/R8 (Each R100 spent = 1 point, 1 point = R1 discount)
Your cart will total 8 points that can be converted into a voucher of R8.
  • High reliability SUNIX UL7502AQ JiWen Parallel controller on-board.
  • Expand single IEEE1284 compatible DB-25 type Parallel LPT port on system.
  • Universal PCI compatible with 64/32-bit PCI-X/PCI Bus and 3.3/5V connector key.
  • Compliance with PCI 33MHz Version 3.0/2.3/2.2/2.1 specification.
  • Support IEEE 1284-1994 parallel port standard with user configuration
  • * ECP (Enhance Capacity Port) / EPP (Enhance Parallel Port)
  • * SPP (Standard Parallel Port) / BPP (Bi-direction Parallel Port)
  • Support legacy ISA address (278, 378, 3BC) or standard PCI Plug-n-Play modes.
  • Install as a fully featured I/O mapped and operation configured as computer's native parallel LPT port.
  • Certified by CE, FCC, RoHS, and Microsoft WHQL approval.
  • Support Microsoft Windows, Linux, and DOS.
R779 incl. VAT
R678 excl. VAT
FREE DELIVERY

IN STOCK at EXTERNAL supplier.
If ordered before 10AM:
DELIVERED next business day (main centres)
or 3-5 business days (regional areas or large items)
COLLECTION from GeeWiz available Same Day (approx 4:30pm)

Product is expected to be in stock, however stock levels are LOW, so stock may be finished. If ordered, we will contact you if this product is sold out

Volume discounts

Quantity Price You Save
5 R764 2%
10 R748 4%
30+ click to email

Quantity

FEATURES

SUNIX PAR5008R PCI Remap Parallel card enables users to expand one additional real ECP/EPP/SPP/BPP communication LPT port on their PC-based system for connecting their parallel device. This board can be installed as a fully featured I/O mapped parallel port as 278, 378, and 3BC legacy ISA address under Microsoft Windows and DOS operation systems. Besides, there’re some software (hardware) could not switch operation mode automatically, and user has to require changing LPT settings to the particular mode. SUNIX PAR5008R can force setting SPP, Bi-Directional, EPP, or ECP mode by jumper settings!

Easy Hardware Settings for Legacy LPT Configuration

Unlike USB to parallel adapters, SUNIX Remap Parallel Card function exactly likes a computer's native parallel port and provides a true LPT port in order for your PC to work properly with devices that require a LPT port for setup and configuration. For many legacy devices like parallel scanners, zip drives or other older parallel-port devices, they only work with a real parallel LPT port from a computer and in many cases can not work with virtual parallel ports provided from those USB to parallel port adapter cables to simulate parallel connection.

Support for Any Windows-based PC

SUNIX parallel card supports all Microsoft Windows operation systems, including 32/64-bit Microsoft Windows Server (2008, 2003, 2000) and Widows Client (7, Vista, XP, 98). Furthermore, Remapping function is workable with windows system default driver. It makes your whole system working properly without any potential conflicting issue when connecting legacy parallel devices.

Support All Devices Requiring Hardware DB25-Pin Connection

The DB 25-pin connector of this board is suitable for connection with Printer requiring parallel interface, Scanners, LapLink, Zip Drive, Tape Drive, LS-120 Drive, CD-R/RW, EPROM Programmer, Intelligent UPS, Plotter, Bank Passbook Printer, software protection dongles, JTAG chip programmers, data acquisition, machine process control, scientific measurement systems, etc.

PRODUCT SPECIFICATIONS

Brand Sunix
Item model number AC-SI5008R+L
Product Type PCI Board
Sunix
AC-SI5008R+L
