UltraLAN Multi-Function Fiber &ampamp Network Cable Tester (FIB-T-MPCT-OPM-VFL)

FIB-T-MPCT-OPM-VFL
>Get registered and you will earn 13 points Get registered and you will earn 13 points (Each R100 spent = 1 point).
Your cart will total 13 points.
  • Tests RJ45 cable sequence, continuity, crimping quality, and pin faults
  • Cable length test up to 600m with ±3% accuracy
  • Real-time PoE testing (IEEE 802.3af/at/bt) up to 90W: Voltage, power, polarity
  • Switch/router port identification using port flash mode
  • Digital cable tracer with adjustable sensitivity and anti-interference design
  • NCV detection with live/neutral wire identification and audible alerts
  • Optical Power Meter (optional): -70 to +6 dBm, 8501650nm wavelengths
  • Visual Fault Locator (optional): 10mW red laser, 650nm, range up to 10km
  • LED light and auto power-off features
R1,322 incl. VAT
R1,150 excl. VAT
FREE DELIVERY

IN STOCK at EXTERNAL supplier.
If ordered before 10AM:
DELIVERED next business day (main centres)
or 3-5 business days (regional areas or large items)
COLLECTION from GeeWiz available Same Day (approx 4:30pm)

Or as low as R441 over 6 months interest-free, using your existing credit card. How it works

Volume discounts

Quantity Price You Save
5 R1,296 2%
10 R1,270 4%
30+ click to email

Quantity

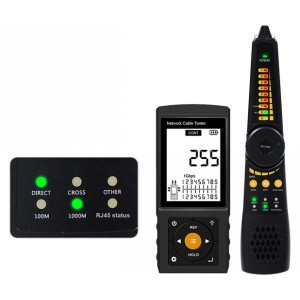

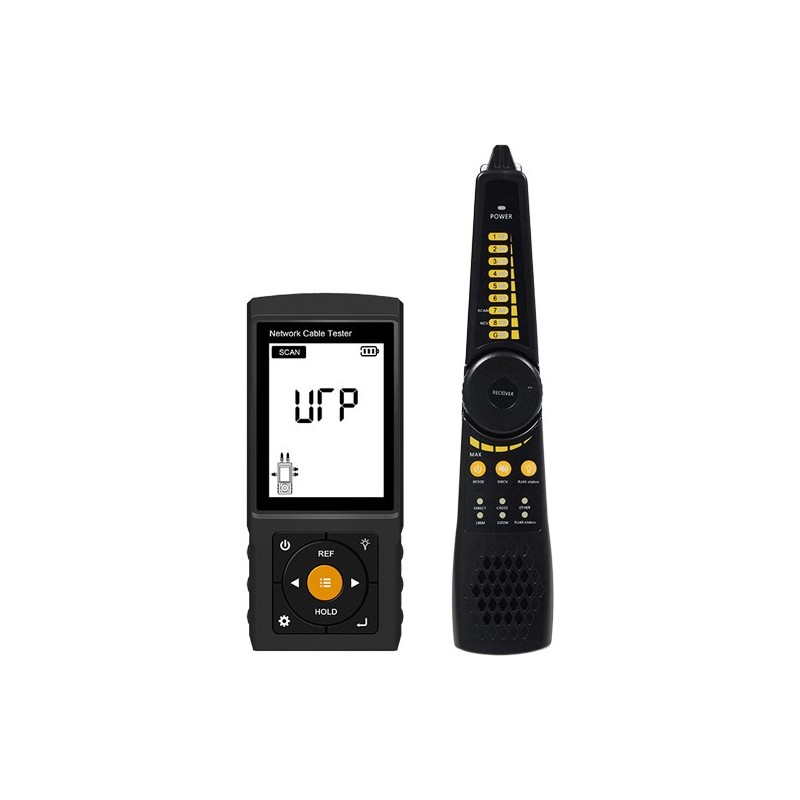

UltraLAN Multi-Function Fiber & Network Cable Tester

The UltraLAN FIB-T-MPCT-OPM-VFL is a powerful hybrid tester combining RJ45 cable diagnostics with fiber optic testing making it the ultimate tool for both copper and fiber environments. In addition to standard network functions like cable tracing, pin sequence checks, length measurement (up to 600m), and PoE diagnostics, this unit also features an integrated Optical Power Meter (OPM) and Visual Fault Locator (VFL). These built-in fiber tools enable quick and accurate identification of optical signal strength, fiber continuity, and break detection all from one compact device. Ideal for technicians working across both wired and fiber infrastructure.

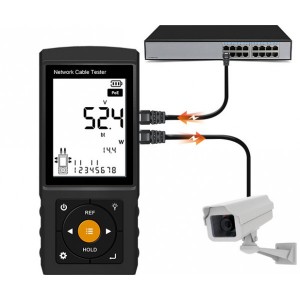

Support for PoE testing up to 90W (IEEE 802.3bt/at/af and non-standard) makes it perfect for CCTV, VoIP, and access control setups. Additional features include switch port flashing, cable tracing with adjustable sensitivity, NCV detection for live wires, and optional built-in modules for optical power measurement and visual fault location.

Key Features:

  • Tests RJ45 cable sequence, continuity, crimping quality, and pin faults
  • Cable length test up to 600m with ±3% accuracy
  • Real-time PoE testing (IEEE 802.3af/at/bt) up to 90W: Voltage, power, polarity
  • Switch/router port identification using port flash mode
  • Digital cable tracer with adjustable sensitivity and anti-interference design
  • NCV detection with live/neutral wire identification and audible alerts
  • Optical Power Meter (optional): -70 to +6 dBm, 8501650nm wavelengths
  • Visual Fault Locator (optional): 10mW red laser, 650nm, range up to 10km
  • LED light and auto power-off features

Specifications:

General:

  • Display: 3" high-contrast LCD
  • Operating Temperature: -10°C to +50°C
  • Operating Humidity: 30%90%
  • Power: 3x AA batteries (emitter), 2x AA batteries (receiver)


Network Cable Testing

  • Supported Cable Types: RJ45 (UTP/STP), RJ11, low-voltage metal cables
  • Cable Length Measurement: 1600m (±3% ±1m accuracy)
  • Wiremap Test: Detects open, short, miswire, cross, and split pairs
  • Continuity Test: Pin-level fault detection and crimp verification
  • Port Flashing: Locates switch/router ports and identifies 100M/1000M link speed
  • PoE Testing: Supports IEEE802.3af/at/bt and non-standard PoE detection
  • Power supply pinout, polarity, real-time voltage & wattage (090W load)
  • Cable Tracer: Anti-interference digital signal tracing with adjustable sensitivity
  • NCV Function: Detects AC voltage in cables and power outlets

Fiber Testing:

  • Optical Power Meter (OPM):
    Supported Wavelengths: 980, 1270, 1300, 1577, 1650nm
    Measurement Range: -70 to +6 dBm
    Features: Real-time optical power display, wavelength selection, REF mode for fiber loss comparison, and user calibration support
  • Visual Fault Locator (VFL):
    Output Power: 10mW
    Wavelength: 650nm red laser
    Modes: Continuous and pulse (1Hz, 2Hz)
    Detection Range: Up to 10km ideal for locating fiber breaks, cracks, and bends
UltraLAN
FIB-T-MPCT-OPM-VFL
