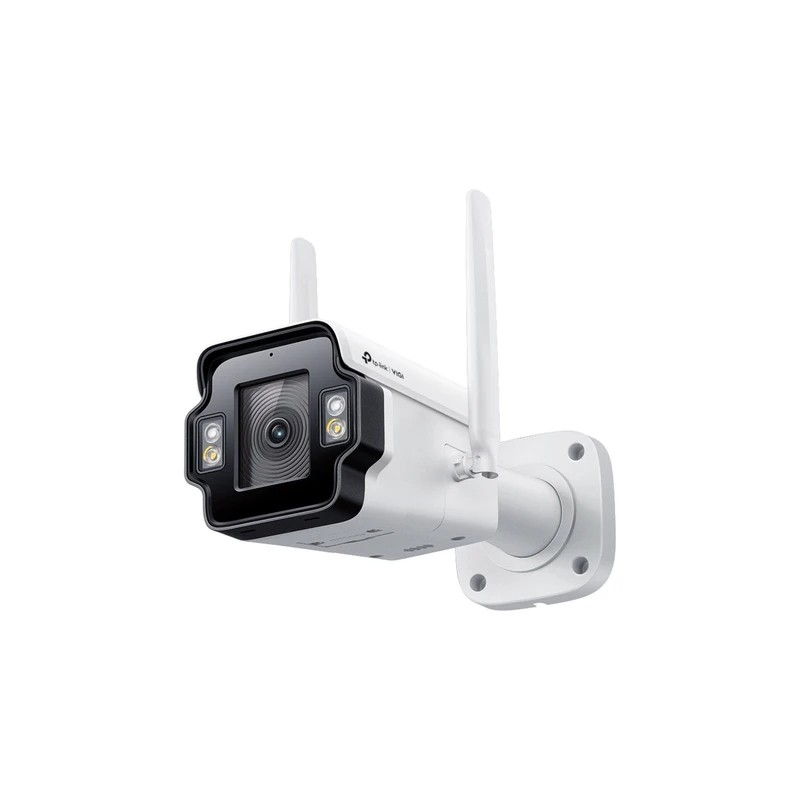

TP-Link VIGI InSight S345-4G 4mm 4MP Outdoor Full-Colour 4G Bullet Network Camera
3 LAN Ports Meet Minimal Deployment Effort
InSight S345-4G offers industry-first three LAN ports, enabling simultaneous connectivity for up to three devices as you need. It is ideal for coupling with solar power systems to eliminate additional wiring deployments.
Human & Vehicle Classification
Distinguish humans and vehicles from other objects and receive more accurate event notifications.
LightPro Night Vision Technology
The VIGI LightPro Night Vision Technology intelligently switches between IR night vision and full-color night vision by detecting people or vehicles. This allows the camera to capture clearer and more critical details with the white light on, and to reduce light pollution and energy consumption with the IR light on at most time, effectively adapting to a broader range of scenarios.
When no vehicle and person are monitored, only IR night vision is displayed.
IR Light On
When a vehicle or a person is being monitored, full-color night vision is displayed.
White Light On
When a vehicle or a person leaves, switches back to IR night vision.
Smart Video Enhancement Technology
True WDR
By analyzing and blending different exposures, True WDR ensures both bright and dark areas remain properly exposed, delivering a well-balanced and natural-looking image even in environments with high-contrast lighting.â–³
Smart IR
Smart IR dynamically adjusts infrared lighting to prevent overexposure and glare, improve visibility at different distances, and ensure clearer footage.
3D DNR
3D DNR is a noise reduction technology that analyzes image data across frames to selectively reduce noise while preserving important details.
White Balance
White Balance ensures that white appears neutral in an image, regardless of the lighting conditions.
Efficient H.265+ Compression Technology
H.265+ reduces the required bandwidth and storage space for videos while maintaining excellent image quality. It saves 57.5% and 15% more storage space compared to H.264 and H.265, respectively.
Specifications
CAMERA
Image Sensor: 1/2.7“ Progressive Scan CMOS
Shutter Speed: 1/3 to 1/10000 s
Slow Shutter: Yes
Minimum Illumination: 0.005 Lux; 0 Lux with IR/White LightDay/
Night Mechanism: IR Cut FilterDay/
Night Switch: Unified/ Scheduled/ Auto
LENS
Type: Fixed Focal Lens
Focal Length: 4 mm
Aperture: F1.6FOV
Lens Mount: M12
Illuminator On/Off Control: Auto/Scheduled/Always on/Always off
DORI Distance
Detect: 80m (262 ft)
Observe: 33m (109 ft)
Recognize: 16m (52 ft)
Identify: 8m (26 ft)
ILLUMINATORIR LED
- Quantity: 2
- Range: 50m
- Wavelength: 850nm
White LED
- Quantity: 2
- Range: 30m
VIDEO
Max. Resolution: 2688 X 1520Main Stream
Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps; 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 2688x1520,2560x1440,2304x1296,2048x1280,1920x1080,1280x720
Bit Rate Control: CBR, VBR
Video Compression: Main Stream: H.265+/H.265/H.264+/H.264; Sub-Stream: H.265/H.264
H.264 Type: High Profile
H.264+: Main Stream Supported
H.265 Type: Main Profile
H.265+: Main Stream Supported
Video Bit Rate: Main Stream: 256 Kbps to 6 Mbps; Sub-Stream: 64 Kbps to 512 Kbps
Sub-Stream
- Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps; 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
- Resolution: 848x480,704x576, 640x480, 640x360,352x288, 320x240 (Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.)
Image Settings
- Mirror
- Brightness
- Contrast
- Saturation
- Sharpness
- Exposure
- WDR
- White Balance
- Prevent Overexposure to Infrared Light
Image Enhancement: BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range: 120dB
Image Parameters Switch: Yes
Privacy Mask: Up to 4 Masks
OSD Setting: Yes
AUDIO
Audio Communication: Two-Way Audio
Audio Input: Yes (Built-in Microphone)
Audio Output: Yes (Built-in Speaker)
Audio Compression: Yes
Audio Sampling Rate: 8KHz
Environment Noise Filtering: Yes
Audio Bit Rate: 64 Kbps(G.711 alaw)
NETWORK
Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
ONVIF: Yes
API: Open Network Video Interface (Profile S/G/T)
Simultaneous Live View: 3 Main Streams & 3 Sub-Streams
Client: VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS
Web Browser
- Google Chrome® 57 and above
- Firefox® 52 and above
- Safari® 11 and above
- Microsoft® Edge 91 and above
- Cloud: Yes
- Security: Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
4G
Standard: LTE-TDD/LTE-FDD/WCDMA
SIM Type: Nano SIM
Category: 4
Uplink and Download Data Rate: Uplink: 50 Mbps, Downlink: 150 Mbps
Frequency
- LTE-FDD: B 1/3/5/7/8/20/28
- LTE-TDD: B 38/40/41
- WCDMA: B 1/5/8
Antenna
Quantity: 2
Type: 690~960&1710~2690MHz Dipole Omni-Directional Antenna
Gain: Ant1：0.84dBi@690~960MHz, 2.85dBi@1710~2690MHz; Ant2：0.74dBi@690~960MHz, 3.06dBi@1710~2690MHz
INTERFACES
Network Interface: 3x RJ45 10/100M LAN Ports
Alarm: N/A
Reset Button: Yes
Power: DC Power Port
On-board Storage: Built-In Memory Card Slot, Support MicroSD Card, Up to 512 GB

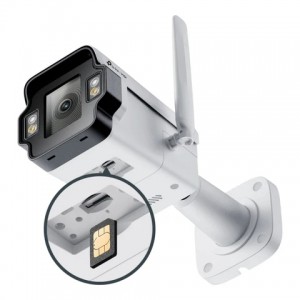

Built-in Nano-SIM Card Slot: Yes
Built-in Microphone: Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera
Built-in Speaker: Yes
Audio: N/A
