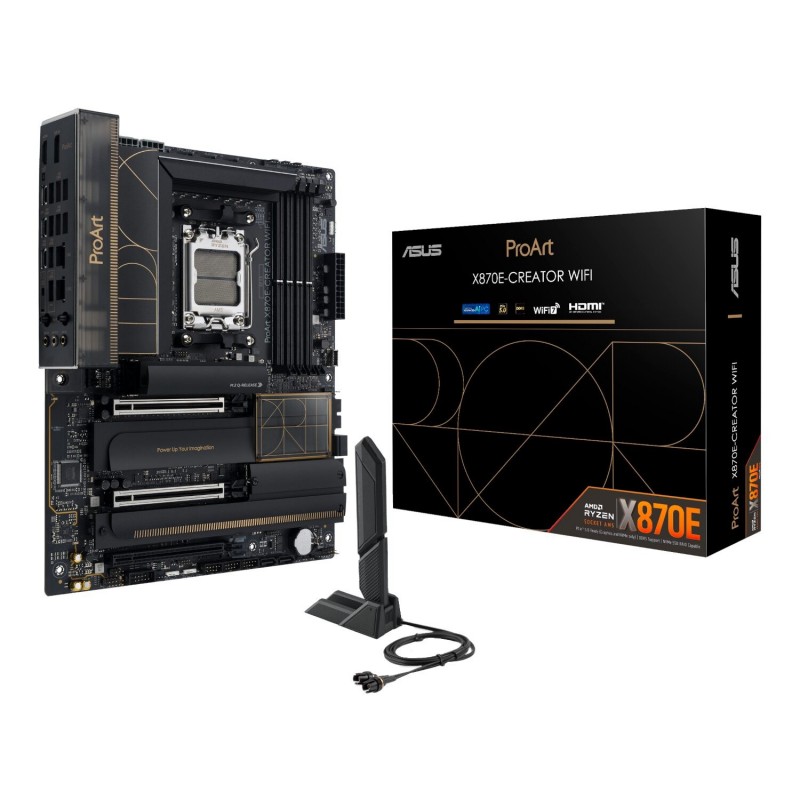

ASUS ProArt X870E-Creator WiFi AM5 ATX Motherboard

PROARTX870E-CREATORWIFI
>Get registered and you will earn 127 points Get registered and you will earn 127 points (Each R100 spent = 1 point).
Your cart will total 127 points.

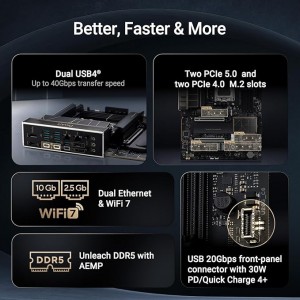

FEATURES:

  • Four ultra-fast M.2 slots, including dual PCIe 5.0 x4 for high-speed NVMe storage
  • WiFi 7 with Bluetooth® 5.4 for next-gen wireless performance and multi-device connectivity
  • Front Type-C® 20Gbps with Quick Charge 4+ up to 30W and USB Wattage Watcher support
  • Sleek ATX form factor with professional black-and-gold aesthetic and translucent I/O shroud
  • AI Overclocking, AI Cooling II and AI Networking for optimised, intelligent system performance
  • PCIe 5.0 x16 slots with SafeSlot and Q-Release Slim for premium GPU support and easy upgrades
  • 16+2+2 power stages (80A) engineered for reliable, high-performance content creation workloads
  • ProArt Creator Hub with Colour Control, Fan Management and CreationFirst network prioritisation
  • Supports up to 256GB DDR5 memory with speeds up to 8000+ MT/s (OC) and EXPO/AEMP profiles
  • Powered by AMD X870E chipset, supporting Ryzen™ 9000, 8000 and 7000 Series desktop processors
  • Marvell® 10Gb Ethernet and Intel® 2.5Gb LAN with ASUS LANGuard for high-speed, stable networking
  • Dual USB4® Type-C® ports with 40Gbps bandwidth for ultra-fast transfers and external display support

R12,749 incl. VAT
R11,087 excl. VAT
FREE DELIVERY

IN STOCK at EXTERNAL supplier.
If ordered before 10AM:
DELIVERED next business day (main centres)
or 3-5 business days (regional areas or large items)
COLLECTION from GeeWiz available Same Day (approx 4:30pm)

From R1,188
per month
Or as low as R4,250 over 6 months interest-free, using your existing credit card. How it works

Volume discounts

Quantity Price You Save
5 R12,495 2%
10 R12,240 4%
30+ click to email

Quantity
Wishlist

Power your vision with the ASUS ProArt X870E-Creator WiFi motherboard, a next-generation platform built for creators who demand more from every render, compile and export. Designed to unleash the full potential of AMD Ryzen™ 9000, 8000 and 7000 Series processors, this motherboard transforms your PC into a precision tool for high-performance content creation.

At its core, 16+2+2 power stages rated at 80A deliver stable, efficient power to support multi-threaded workloads with ease. DDR5 memory support, up to 256GB and 8000+ MT/s (OC), ensures lightning-fast responsiveness in editing suites, simulation environments and 3D rendering applications.

Connectivity is second to none. The ASUS ProArt X870E-Creator WiFi motherboard integrates dual USB4® (40Gbps) Type-C® ports, 10Gb and 2.5Gb Ethernet, and cutting-edge WiFi 7 — enabling seamless collaboration, ultra-fast file transfers and cloud-based production pipelines. A front-panel USB-C® connector with Quick Charge 4+ (up to 30W) keeps your devices powered while you create.

Storage flexibility is extensive, with four M.2 slots (two PCIe 5.0 x4 enabled) and four SATA ports, giving creators the bandwidth and space for high-res assets, project archives and scratch disks. PCIe 5.0 x16 support enables workstation-class GPU performance, while ASUS Q-Release and SafeSlot features streamline hardware swaps.

Optimised for professional workflows, the ProArt Creator Hub offers system-level customisation, while integrated AI Overclocking, Cooling, and Networking features adapt performance in real time. Pantone® colour validation utilities ensure accuracy across your visual pipeline.

Housed in a sleek, matte-black PCB with metallic gold accents and a translucent I/O shroud, the ASUS ProArt X870E-Creator WiFi motherboard balances form and function in every detail. It’s a premium foundation for creators who won’t compromise — whether you’re building in Blender, editing in DaVinci Resolve or designing across Adobe Creative Cloud.

FEATURES:

  • Four ultra-fast M.2 slots, including dual PCIe 5.0 x4 for high-speed NVMe storage
  • WiFi 7 with Bluetooth® 5.4 for next-gen wireless performance and multi-device connectivity
  • Front Type-C® 20Gbps with Quick Charge 4+ up to 30W and USB Wattage Watcher support
  • Sleek ATX form factor with professional black-and-gold aesthetic and translucent I/O shroud
  • AI Overclocking, AI Cooling II and AI Networking for optimised, intelligent system performance
  • PCIe 5.0 x16 slots with SafeSlot and Q-Release Slim for premium GPU support and easy upgrades
  • 16+2+2 power stages (80A) engineered for reliable, high-performance content creation workloads
  • ProArt Creator Hub with Colour Control, Fan Management and CreationFirst network prioritisation
  • Supports up to 256GB DDR5 memory with speeds up to 8000+ MT/s (OC) and EXPO/AEMP profiles
  • Powered by AMD X870E chipset, supporting Ryzen™ 9000, 8000 and 7000 Series desktop processors
  • Marvell® 10Gb Ethernet and Intel® 2.5Gb LAN with ASUS LANGuard for high-speed, stable networking
  • Dual USB4® Type-C® ports with 40Gbps bandwidth for ultra-fast transfers and external display support

SPECIFICATIONS:

  • CPU
  • AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
  • Chipset
  • Socket: AMD X870E
  • Memory
  • 4 x DIMM slots, max. 256GB, DDR5
  • Supports:
  • 8000+MT/s(OC) with Ryzen™ 9000 Series Processors,
  • 8000+MT/s(OC) with Ryzen™ 8000 Series Processors,
  • 8000+MT/s(OC) with Ryzen™ 7000 Series Processors,
  • ECC and Non-ECC Unbuffered DIMM
  • Dual Channel Memory Architecture
  • Supports AMD Extended Profiles for Overclocking (EXPO™)
  • ASUS Enhanced Memory Profile (AEMP)
  • Graphics
  • 1 x HDMI™ port
  • 2 x USB4® (40Gbps) ports support USB Type-C® display outputs
  • Expansion Slots
  • 2 x PCIe 5.0 x16 slots with Q-Release Slim (supports x16 or x8/x8** or x8/x4/x4 modes
  • 1 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEX16(G5)_1 & total bandwidth of x8, PCIEX16(G5)_2 will be disabled)
  • 1 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEX16(G5)_1 & total bandwidth of x4,  PCIEX16(G5)_2 will be disabled)
  • 1 x PCIe 4.0 x16 slot (supports x4 mode)
  • Storage
  • 4 x M.2 slots and 4 x SATA 6Gb/s ports
  • M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
  • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
  • M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  • M.2_2 slot is not supported
  • M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  • M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
  • 4 x SATA 6Gb/s ports
  • Ryzen™ 7000 series processors: PCIe RAID 0/1/10
  • Ryzen™ 8000 series processors: PCIe RAID 0/1
  • Ryzen™ 9000 series processors: PCIe RAID 0/1/5/10
  • X870/B850/X670/B650/A620 chipset: SATA RAID 0/1/10
  • Ethernet
  • 1 x Marvell® AQtion 10Gb Ethernet
  • 1 x Intel® 2.5Gb Ethernet
  • ASUS LANGuard
  • Wireless & Bluetooth
  • Wi-Fi 7 320MHz bandwidth, up to 6.5Gbps transfer rate.
  • 2x2 Wi-Fi 7 (802.11be)
  • Bluetooth® v5.4 2.4/5/6GHz frequency band
  • USB Ports
  • 2 x USB4® (40Gbps) port(s) (2 x USB Type-C®)
  • 1 x USB 20Gbps port(s) (1 x USB Type-C®)
  • 7 x USB 10Gbps port(s) (7 x Type-A)
  • 1 x USB 2.0 port (1 x Type-A)
  • 1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD/QC4+)
  • 1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports
  • 3 x USB 2.0 headers support 6 additional USB 2.0 ports
  • Audio
  • Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*
    • Impedance sense for front and rear headphone outputs
    • Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
    • Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
    • High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
    • Supports up to 32-bit/192 kHz playback*
  • Audio Features:
    • Audio Shielding
    • Premium audio capacitors
    • Dedicated audio PCB layers
    • Unique de-pop circuit
  • Back Panel I/O Ports
  • 2 x USB4® (40Gbps) port(s) (2 x USB Type-C®)
  • 1 x USB 20Gbps port (1 x USB Type-C®)
  • 7 x USB 10Gbps ports (7 x Type-A)
  • 1 x USB 2.0 port (1 x Type-A)
  • 1 x DisplayPort (Input only)
  • 1 x HDMITM port
  • 1 x Wi-Fi Module
  • 1 x Marvell® AQtion 10Gb Ethernet
  • 1 x Intel® 2.5Gb Ethernet
  • 3 x Audio jacks
  • 1 x BIOS FlashBack™ button
  • 1 x Clear CMOS button
  • Internal I/O Connectors
  • Fan and Cooling:
    • 1 x 4-pin CPU Fan header
    • 1 x 4-pin CPU OPT Fan header
    • 1 x 4-pin AIO Pump header
    • 5 x 4-pin Chassis Fan headers
  • Power related:
    • 1 x 24-pin Main Power connector
    • 2 x 8-pin +12V CPU Power connector
  • Storage-related:
    • 4 x M.2 slots (Key M)
    • 4 x SATA 6Gb/s ports
  • USB:
    • 1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD/QC4+)
    • 1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports
    • 3 x USB 2.0 headers support 6 additional USB 2.0 ports
  • Miscellaneous:
    • 3 x Addressable Gen 2 headers
    • 1 x Chassis Intrusion header
    • 1 x COM Port header
    • 1 x CPU Over Voltage jumper
    • 1 x Front Panel Audio header (F_AUDIO)
    • 1 x 10-1 pin System Panel header
    • 1 x Thermal Sensor header
  • Special Features
  • ASUS 5X PROTECTION III
    • DIGI+ VRM (- Digital power design)
    • Enhanced DRAM Overcurrent Protection
    • ESD Guards
    • LANGuard
    • Overvoltage Protection
    • Safeslot
    • Stainless-Steel Back I/O
  • ASUS Q-Design
    • M.2 Q-Latch
    • M.2 Q-Release
    • M.2 Q-Slide
    • PCIe Slot Q-Release Slim (with PCIe SafeSlot)
    • Q-Antenna
    • Q-Connector
    • Q-DIMM
    • Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
    • Q-Slot
  • ASUS Thermal Solution
    • M.2 heatsink backplate
    • M.2 heatsinks
    • VRM heatsink design
  • ASUS EZ DIY
    • BIOS FlashBack™ button
    • BIOS FlashBack™ LED
    • ProCool
    • Pre-mounted I/O shield
    • SafeSlot
    • SafeDIMM
  • AURA Sync
    • Addressable Gen 2 headers
  • Bespoke Motherboard Design & Business-Focused Features
    • 24/7 Reliability
    • Overcurrent Protection
  • Front Panel USB 20Gbps with Quick Charge 4+ Support
    • Support: up to 30W fast charging and USB Wattage Watcher
    • Output: 5V/9V max. 3.0A, 12V max 2.5A, 15V max2.0A
    • Compatible with PD3.0
  • Software Features
  • ASUS Exclusive Software
  • Armoury Crate
    • Aura Creator
    • Aura Sync
    • Fan Xpert 4 with AI Cooling II
    • Power Saving
  • ASUS DriverHub
  • ASUS GlideX
  • USB Wattage Watcher
  • TurboV Core
  • ASUS CPU-Z
  • ProArt Creator Hub
  • CreationFirst
  • Adobe Creative Cloud (Free Trial)
  • Norton 360 Deluxe (60 Days Free Trial)
  • WinRAR (40 Days Free Trial)
  • UEFI BIOS
    • ASUS EZ DIY
    • ASUS CrashFree BIOS 3
    • ASUS EZ Flash 3
    • ASUS UEFI BIOS EZ Mode
  • FlexKey
  • Remote Management Features
  • IT Management software is supported
    • ASUS Control Center Express(ACCE)
  • BIOS
  • 256 Mb Flash ROM, UEFI AMI BIOS
  • Manageability
  • WOL by PME, PXE
  • Operating System
  • Windows® 11
  • Form Factor
  • ATX Form Factor
  • Dimensions: 30.5 cm x 24.4 cm

WHAT'S IN THE BOX:

  • ASUS ProArt X870E-Creator WiFi AM5 ATX Motherboard x1
  • DisplayPort cable x1
  • SATA 6Gb/s cables x4
  • Thermal pad for M.2 22110 x1
  • ASUS WiFi Q-Antenna x1
  • Q-connector x1
  • M.2 Q-Latch package x1
  • M.2 Q-Latch Q-Slide package for M.2 backplate x1
  • Rubber Packages for M.2 x2
  • ProArt ruler x1
  • Quick start guide x1
  • ACC Express Activation Key Card x1
PROARTX870E-CREATORWIFI
  • Returns Policy

  • Return of merchandise (RMA) and Warranty

    We want you to be happy with the purchase you have made from us. If you are not completely satisfied, you may return the product to us and we will either refund, credit, repair/replace it, subject to the below terms and conditions.

    You can return purchases for a refund (excl shipping). Please notify us within 7 days and ensure item is ready maximum 10 days after delivery date.

    Please ensure to log your return request within 7 days of receipt of your item. Please ensure to select the correct reason for return:

    - Changed my mind / Item exchange

    - Faulty on arrival

    - Incorrect item received

    All items are covered by a 12 month warranty (unless otherwise stated) which will be honoured directly by GeeWiz. All products will either be replaced/repaired/refunded depending on stock availability. Products will require evaluation by GeeWiz before a warranty claim can be accepted.

    Should the item being returned for assessment be found to be in good working order, unfortunately, there will be a collection fee that will apply.

    The collection fees are as follows:

    - For returns on items that were sent with free shipping: R198

    - For returns that had a surcharge, the same surcharge will apply for collection.

    Please log your return on your account, under the returns manager.

    We do not reimburse your fee to ship to us, but we will pay for return shipping if the item is subject to replacement. If the item you wish to return was ordered incorrectly / is no longer required / you have changed your mind, there is a collection fee that will be charged (please refer to the above) and this will be deducted from the refund amount once the supplier has credited us. Please note GeeWiz will only cover return shipping of a faulty unit within 6 months of purchase, after which, a shipping fee (starting from R198) will be applicable to you for the return of the unit.

    Any disputes relating to ordered items being short/incorrectly shipped will only be entertained if reported to GeeWiz within 3 days of delivery/collection.

    Refunds are subject to inspection of item(s) - in some cases, items will need to be sent to supplier for evaluation and testing. This can take up to 15 working days. Once a refund has been approved, this may take 3 - 5 business days to be processed.

    ALL returns are subject to up to a 30% restocking fee if item is no longer in BRAND NEW condition or if item seal/packaging has been broken.

    Please re-package safely and include all original product packaging.

    All software products are unfortunately not eligible for credit or refund once purchased.

    After the 6-month period, you will no longer be eligible and won't be able to receive a refund. We can however replace or repair depending on the outcome after our team of professionals has inspected the product.

    Should a warranty sticker not be present on an item, the warranty is immediately null and void.

    Batteries are covered under warranty, but please note that GEL, AGM and LEAD ACID have limited cycle runs. These are typically around 200 cycles and may run out before the end of the warranty. Once the cycles have been depleted, it means the battery has reached the end of life and will no longer be a warranty claim.

    GeeWiz reserves the right to refuse a refund if the item is damaged from misuse, items are missing, or if the product is altered in any way.

    GeeWiz or its affiliates are not responsible for damage or loss of any kind that may occur as a result of using or misusing any product purchased from us.

    The warranty will no longer be valid, and GeeWiz will not be responsible for damage or injury of any kind resulting from:

    • Electricity fluctuations and surges, lightning strikes, faults in the building wiring, faulty installations, and improper use of controls
    • Failure to use the product in accordance with the operating instructions and or general misuse and or abuse
    • Damage caused by a superior force (vis major) or if the product has been infested with insects or pests
    • If the product is physically damaged after it left the store
    • If water or liquid caused the damage to the product
    • If the warranty seal is tampered with
    • Any repair or tampering by an unauthorised person or attempt to repair or tamper with the equipment, or use of parts not supplied by authorised agents, or alterations or modification to the equipment shall render the warranty null and void.

    For hygiene purposes.

    Please note we cannot accept returns for apparel that has been worn, stained, frayed, or otherwise shows signs of use.

    We can only accept returns for items that are damaged upon receipt or are faulty.

    • Click here to get more details

If you have any further questions, please feel free to use the form below to ask:

(optional)
*(Required to be notified when an answer is available)
Send question!

Related products

(8 other products in the same category)

Details
