MB-GB840ME+W

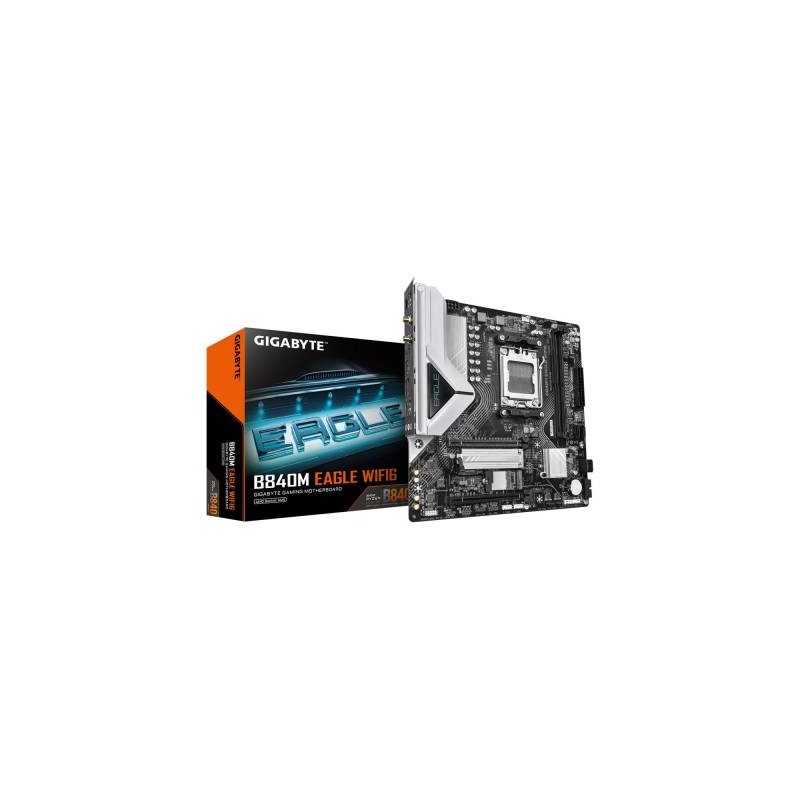

Gigabyte B840M EAGLE WIFI6 B840 Chipset AMD Ryzen AM5 Socket Micro ATX Motherboard

Features:

• X3D Turbo Mode :Unleash new era gaming performance
• AMD Socket AM5 :Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
• Digital 5+2+2 phases VRM solution
• Dual Channel DDR5:2*DIMMs with AMD EXPO™Memory Module Support
• D5 Bionic Corsa for Infinite Memory Performance
• EZ-Latch :PCIe and M.2 slots with Quick Release & Screwless Design
• EZ-Latch :M.2 heatsinks with screwless design
• Friendly UI :Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
• Ultra-Fast Storage :2*M.2 slots
• Efficient Thermal :VRM Thermal Armor Advanced & M.2 Thermal Guard
• Fast Networking :2.5GbE LAN & Wi-Fi 6
• Extended Connectivity :HDMI, Displayport
• PCIe UD Slot :PCIe x16 slots with 10X strength for graphics card & Better Heat dissipation effect

X3D Turbo Mode

X3D Turbo Mode's unique optimization parameters allow even Ryzen™ 9000 X3D gaming Performance enhance & Ryzen™ 9000 non-X3D processors to achieve similar gaming performance levels as their Ryzen™ X3D counterparts. Experience smoother gameplay, higher frame rates, and reduced latency with GIGABYTE's BIOS innovation- X3D Turbo Mode.

AORUS AI SNATCH

Unleash Ultimate Performance with One-Click Activation.

Auto CPU & DDR5 Memory Boost

With just a single click, unleash the full potential of CPU & DDR5 memory, instantly boosting your gaming and work efficiency.

One-Click Acceleration:

Enhance CPU & DDR5 speeds with a single click.

• Real time Analyze
• OC accuracy UP
• EZ to Pro

Fast AI Performance

Accelerate AI processing for greater performance

Up to 8% AI Performance*

• Accelerated AI decision-making
• Boosted reinforcement learning
• Streamlined language processing

Boost CPU & Memory Performance
Raise system speed and performance.

Up to 9% CPU & Memory Performance Boost

• Tailored-overclocking for your CPU and memory
• Faster data transfer and application loading
• Improved multitasking performance
• Optimized overall system performance

Maximize performance in a snap

Enable users to easily become overclocking experts through a simple interface.

Smart & Safe overclocking

Protect your motherboard through multiple over-temperature and over-current safeguards.

• Over Temperature Protection
• Over Current Protection
• Over Voltage Protection
• Over Power Protection
• Under Voltage Protection
• Short Circuit Protection

Less Power Usage Optimal power-efficiency, Enhance Up to 9% CP/Per Watt*

With faster computations, it also means reduced power consumption, making it more environmentally friendly and energy-efficient, continuously contributing to the well-being of our planet.

AI-Driven PCB Technology-Redefining PCB Design with Artificial Intelligence

AI-Driven PCB Technology employs AI algorithms to optimize vias, routing and stackups. It ensures peak performance and signal integrity across single and cross-layer throughout the design process.

AI-ViaFusion Technology

Optimized vias & pads for signal integrity

AI-Trace Technology

Smart routing for peak performance

AI-Layer Technology

Tailored stackups for enhanced functionality

Key Features:

• AI-Generated Design Recipes
• AI-Driven Simulation
• AI-Powered Signal Verification
• Single and cross-layer signal optimization

AI-ViaFusion™ Technology - AI-Powered Excellence in Signal Integrity

Reduction in Signal Reflection Up to 28.2%. AI-ViaFusion, an AI-assisted via optimization technology, determines optimal via and pad sizes across PCB areas. This technology enhances cross-layer signal integrity and transmission efficiency, outperforming traditional design methods.

Best-in-class Signal Quality

• Superior signal transmission efficiency
• Dramatically reduced signal reflection
• Elevated signal quality and reliability
• Enhanced cross-layer PCB signal performance

AI-ViaFusion Technology - AI-Engineered Via Design Formula

AI-ViaFusion is a proprietary AI-generated hybrid via structure design. This PCB technology, validated through AI simulations and testing, aims to enhance high-speed signal transmission.

Optimized Via Design

Varied via sizes for optimized signal and power paths

Driven Pad Optimization

Custom pad sizes for performance and production balance

Precision Impedance Matching

Via & pad sizes selected for optimal signal impedance

Minimized Insertion Loss

Optimized vias reduce signal loss

Enhanced Return Loss

Precision impedance matching reduces reflections

Optimized Eye Diagram

Wider eye opening improves signal integrity

AI-ViaFusion Technology - AI-Driven Revolution in PCB Design

Vias (Vertical Interconnect Access) are critical for multi-layer PCB connectivity. Via size significantly impacts signal integrity, affecting capacitance, reflections, and crosstalk.

Strategic Via Sizing

Optimized for varied signals across PCB

Enhanced Impedance Matching

Precise control via machine learning

Space Optimization

Maximized layout efficiency with signal integrity

AI-Trace Technology-Revolutionizing PCB Routing with AI

AI-Trace Technology transforms PCB design by leveraging AI to optimize trace routing, resulting in enhanced performance and signal integrity.

Fiber Weave Effect Mitigation

Optimized signal synchronization

Shielded Memory Routing

Optimized signal shielding and precision

Impedance-Optimized Topology

Refined traces with minimal resistance

Isolated Memory Routing

Optimized trace layout and layer separation

Daisy-Chained Routing

Innovative design eliminates signal bottlenecks

Mitigating Fiber Weave Effect with AI-Trace Technology

Fiber Weave Effect in high-speed PCBs stems from varying dielectric constants of epoxy resin and glass fibers, this causes varying signal propagation speeds, leading to signal integrity issues such as crosstalk and jitter. AI-Trace Technology implements innovative routing angles to mitigate this effect.

Benefits of Mitigation:

• Reduces signal distortion
• Improves transmission reliability
• Supports higher data rates
• Enhances overall system stability

AI-Layer Technology -Next-Generation Multi-Layer PCB Design

AI-Layer Technology creates innovative layer materials for multi-layer PCBs, delivering unparalleled performance.

Core Innovation:

• AI-Optimized Layer Customized Design
• AI-optimized layer design
• Unique material for each layer
• AI-verified signal integrity
• Tailored PCB for peak performance

Key Features:

• AI-optimized PCB layer and design material
• Server-Grade Low Loss PCB*
• Enhanced 2X Copper Technology

HyperTune BIOS - AI-Driven Advanced BIOS Optimization Technology

BIOS Efficiency Boost Up to 95%+. HyperTune BIOS uses AI to optimize signals. The 800 series implements this for peak efficiency, enabling significant memory clock speed boosts and enhanced overall performance.

AI-Enhanced Performance Optimization

• Adaptive signal strength tuning
• AI tuning accuracy exceeds 95%
• Continuous learning advances performance limits

Infinite Memory Performance

EAGLE motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods.

Steady Power

Eagle Series with steady power keeps your AI operation smooth.

Digital Twin VRM Design

Delivers consistent, high-powered performance to elevate your overclocking to the next level.

5 VCORE Phases DrMOS 60A

Unlock the full power of your multi-core CPU for unmatched performance.

2 SOC Phase DrMOS 60A

Optimized for integrated GPU performance and memory management within the CPU.

2 MISC Phases Ppak

Deliver reliable power to your CPU-connected PCIe lanes for uninterrupted performance.

Comprehensive Thermal

Advanced full-metal thermal design and durable heatsinks to keep your system cool and efficient.

"Stay Cool, Game On"

High-coverage MOSFETs with integrated molded heatsinks

4X larger surface area for enhanced heat dissipation

With up to 4 times the surface area of traditional coolers, this advanced design significantly boosts MOSFET cooling performance.

Multi-cut design with channels for improved airflow

• More grooves, more airflow.
• Better airflow, cooler system.

5 W/mK thermal pad for efficient thermal conductivity

• High-performance thermal pad
• Keeps your system cool and running at peak efficiency

True one-piece heatsink design

• Outperforms competitors' multi-piece solutions
• Integrated design and expanded surface area deliver exceptional cooling performance

Smart Fan 6

Superior cooling performance and whisper-quiet operation for your gaming rig.

High Current Support

• Supports both PWM and DC fans, plus water cooling pumps
• Up to 24W (12V x 2A) capacity per fan header
• Built-in over-current protection

Precision Control

• Multiple temperature and fan speed points
• Customizable fan curves for optimal performance

Dual Curve Mode

• Choose between slope and stair modes
• Tailor cooling to your specific needs and preferences

Fan Stop Technology

• Fans can be completely turned off at low temperatures
• Ensures silent operation during light loads

Enhance Fan Curve UI

• 7 adjustable control points
• Expanded speed graph for precise adjustments

Slope/Stair Dual Graph Mode

• Slope mode: Smooth fan speed curve
• Stair mode: Steady speeds within temperature ranges
• Easy switching between modes

Manual Input

• Fine-tune fan speeds for optimal performance
• Precise control for enthusiasts

EZ Tuning

• Quick setup with 4 temperature and fan speed points
• Automatic optimization of fan curve

Fan Curve Profile

• Save personalized settings to BIOS ROM
• Maintain custom settings through BIOS updates

Hassle-free Assembly

Our cutting-edge motherboard is designed for the ultimate DIY experience. Creating your own PC becomes a delightful and smooth process.

EZ-Latch Designs

User-friendly designs simplifying the assembly process.

Fast-Access Controls

Handy, Revert, Refresh

EZ Debug Zone

Centralized debug LEDs and control buttons provide a handy and organized troubleshooting process when building a new computer.

Optimal DRAM Installation Indicator

The DRAM Indicator LED will turn on when a module is installed into a non-recommended slot.

Q-FLASH Auto Scan

The new Auto Scan function featues when using USB flashdrive during Q-Flash, the BIOS file will be auto scanned instead of searching manually.

Q-FLASH PLUS

Effortlessly upgrade your BIOS without the need to install CPU, RAM, or GPU.

All-round Connectivity

Experience ultimate connectivity with next-generation network, storage, and Wi-Fi solutions, delivering lightning-fast data transfer speeds.

2.5GbE LAN

Supercharge your gaming with 2.5GbE LAN Achieve lightning-fast speeds, minimal lag, and unbeatable performance to elevate your gaming setup and dominate the competition.

802.11ax Wi-Fi 6

The Wireless solution 802.11ax Wi-Fi 6 enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps and 5Gbps. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission.

High-End Audio Capacitors

These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects.

Audio Noise Guard

Essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.

Born from Ultra Durable™

Technology embodies our commitment to excellence, providing gamers with a platform that's not only powerful but also built for longevity and reliability. GAMING series motherboards are engineered to endure and excel.

UD Power Connector

Our innovative UD Power Connector design enhances power conductivity and thermal dissipation.

Solid Pins

Delivers superior conductivity and signal transmission and reduces metal wear from repeated connections.

Collaborative Excellence in Computing

GIGABYTE motherboards showcases our devotion to BIOS improvement. Through synergy with our user community, we democratize next-level computing power.

UC BIOS

Restructured with user-centered and intuitive performance adjustment mechanisms.

Multi-Theme

Multiple BIOS skin with newly exclusive grayscale mode

AIO Fan Control

Adjust AIO fan speed in the BIOS

Multi-Theme

Now users can choose different BIOS themes with one simple click It not only delivers an immersive user experience but also offers a brand new user-friendly theme: Grayscale.

AIO Fan Control

Enable non-windows users to adjust AIO fan speed in the BIOS before entering the OS.

Refined BIOS Interface

GIGABYTE User-Centred (UC) BIOS elevates the interface, delivering an optimized experience through an easy-to-navigate layout and attractive design for optimal usability.

Quick Access Function

GIGABYTE UC BIOS' Quick Access function selects brings 9 key options from Advanced Mode directly into Easy Mode, enabling swift adjustments without extensive navigation.

GIGABYTE Control Center

A unified software platform encompassing multiple GIGABYTE product.

RGB Fusion

Personalize the RGB illumination on your motherboard and connected peripherals.

Spotlight your flair

Liberate your imagination using GCC's versatile illumination options for your motherboard. Tailor your setup with eye-catching displays that mirror your unique personality and preferences.

Varnish your shine

Programmable RGB LED connectors enable precise control over individual LEDs (for ARGB GEN2 devices), seamlessly managed through the GCC.

AORUS & HWiNFO Co-branded OSD

AORUS and HWiNFO co-branded OSD(On-Screen Display) can display values as text or graphs in an overlay or independent window, also in full-screen applications and games, with no need for additional software installation.

Default AORUS skin

When using HWiNFO on a GIGABYTE motherboard, a custom AORUS-themed interface automatically activates, offering light and dark options. This AORUS Skin can be manually applied to non-GIGABYTE boards as well.

Memory Timings Monitor

Thanks to the collaborative efforts of GIGABYTE and HWiNFO experts, this sophisticated monitoring tool now provides unprecedented detail in memory timing readouts. This empowers users to closely track memory performance and gather crucial insights.

Detailed BIOS information

GIGABYTE motherboard users can now access comprehensive BIOS details in real-time through HWiNFO. This includes toggle and tweaker statuses, as well as BIOS versions. No need for system reboots to check BIOS info. anymore.
