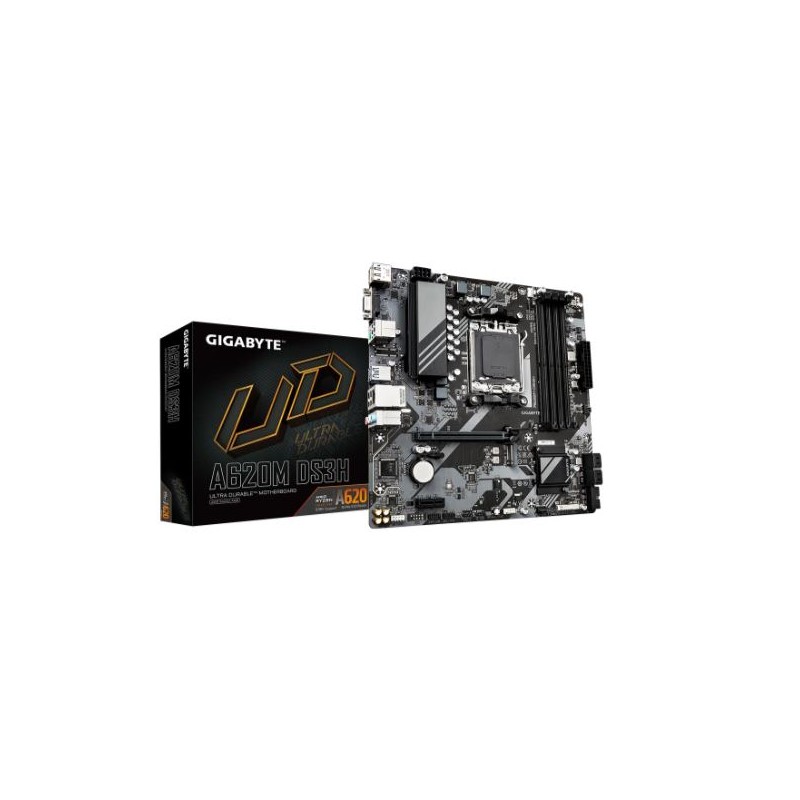

Gigabyte A620M DS3H Motherboard

MB-GA620MDS3H
>Earn 31 points/R31 Earn 31 points/R31 (Each R100 spent = 1 point, 1 point = R1 discount)
Your cart will total 31 points that can be converted into a voucher of R31.
  • Gigabyte Motherboard
R3,081 incl. VAT
R2,680 excl. VAT
FREE DELIVERY

IN STOCK at EXTERNAL supplier.
If ordered before 10AM:
DELIVERED next business day (main centres)
or 3-5 business days (regional areas or large items)
COLLECTION from GeeWiz available Same Day (approx 4:30pm)

Product is expected to be in stock, however stock levels are LOW, so stock may be finished. If ordered, we will contact you if this product is sold out

Volume discounts

Quantity Price You Save
5 R3,020 2%
10 R2,958 4%
30+ click to email

Quantity

FEATURES

GIGABYTE A620 Motherboards are ready to work with the PCIe 4.0 devices which are expected to experience twice bandwidth than the current PCIe 3.0 devices. To reach the high speed and maintain good signal integrity, GIGABYTE R&D uses the low impedance PCB to provide the maximum performance.

GbE LAN with Bandwidth Management

GbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

  • CPU: AMD Socket AM5, support for: AMD Ryzen 7000 Series Processors (Please refer "CPU Support List" for more information.)
  • Chipset: AMD A620
  • Memory
    • Support for up to DDR5 6400(OC) MT/s memory modules
    • 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
    • Dual channel memory architecture
    • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    • Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules
    • (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)
  • Onboard Graphics - Integrated Graphics Processor:
    • 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
    • 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz ( Support for DisplayPort 1.4 version.)
    • 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz (Support for HDMI 2.1 version and HDCP 2.3., Support for native HDMI 2.1 TMDS compatible ports.)
    • Graphics specifications may vary depending on CPU support.
    • Support for up to 3 displays at the same time
  • Audio: Realtek HD Audio 2/4/5.1/7.1-channel CODEC (You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.)
  • LAN: Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
  • Expansion Slots
    • CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
    • Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
  • Storage Interface
    • CPU: 1 x M.2 connector (Socket 3, M key, type 2580 PCIe 4.0 x4/x2 SSD support)
    • Chipset: 4 x SATA 6Gb/s connectors
    • RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
    • RAID 0, RAID 1, and RAID 10 support for SATA storage devices
  • USB
    • CPU:
      • 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support
      • 1 x USB 3.2 Gen 1 port on the back panel
      • 1 x USB 2.0/1.1 port on the back panel
    • Chipset:
      • 2 x USB 3.2 Gen 1 ports available through the internal USB header
      • 5 x USB 2.0/1.1 ports (3 ports on the back panel, 2 ports available through the internal USB headers)
  • Form Factor: Micro ATX, 24.4 x 24.4 cm

PRODUCT SPECIFICATIONS

Brand Gigabyte
Item model number MB-GA620MDS3H
Product Type Motherboard
GIGABYTE
MB-GA620MDS3H
  • Name : Return policy
  • Description

    Return of merchandise (RMA) and Warranty

    We want you to be happy with the purchase you have made from us. If you are not completely satisfied, you may return the product to us and we will either refund, credit, repair/replace it, subject to the below terms and conditions.

    You can return purchases for a refund (excl shipping). Please notify us within 7 days and ensure item is ready maximum 10 days after delivery date.

    Please ensure to log your return request within 7 days of receipt of your item. Please ensure to select the correct reason for return:

    - Changed my mind / Item exchange

    - Faulty on arrival

    - Incorrect item received

    All items are covered by a 12 month warranty (unless otherwise stated) which will be honoured directly by GeeWiz. All products will either be replaced/repaired/refunded depending on stock availability. Products will require evaluation by GeeWiz before a warranty claim can be accepted.

    Should the item being returned for assessment be found to be in good working order, unfortunately, there will be a collection fee that will apply.

    The collection fees are as follows:

    - For returns on items that were sent with free shipping: R198

    - For returns that had a surcharge, the same surcharge will apply for collection.

    Please log your return on your account, under the returns manager.

    We do not reimburse your fee to ship to us, but we will pay for return shipping if the item is subject to replacement. If the item you wish to return was ordered incorrectly / is no longer required / you have changed your mind, there is a collection fee that will be charged (please refer to the above) and this will be deducted from the refund amount once the supplier has credited us. Please note GeeWiz will only cover return shipping of a faulty unit within 6 months of purchase, after which, a shipping fee (starting from R198) will be applicable to you for the return of the unit.

    Any disputes relating to ordered items being short/incorrectly shipped will only be entertained if reported to GeeWiz within 3 days of delivery/collection.

    Refunds are subject to inspection of item(s) - in some cases, items will need to be sent to supplier for evaluation and testing. This can take up to 15 working days. Once a refund has been approved, this may take 3 - 5 business days to be processed.

    ALL returns are subject to a 15% restocking fee if item is no longer in BRAND NEW condition or if item seal/packaging has been broken.

    Please re-package safely and include all original product packaging.

    All software products are unfortunately not eligible for credit or refund once purchased.

    After the 6-month period, you will no longer be eligible and won't be able to receive a refund. We can however replace or repair depending on the outcome after our team of professionals has inspected the product.

    Should a warranty sticker not be present on an item, the warranty is immediately null and void.

    Batteries are covered under warranty, but please note that GEL, AGM and LEAD ACID have limited cycle runs. These are typically around 200 cycles and may run out before the end of the warranty. Once the cycles have been depleted, it means the battery has reached the end of life and will no longer be a warranty claim.

    GeeWiz reserves the right to refuse a refund if the item is damaged from misuse, items are missing, or if the product is altered in any way.

    GeeWiz or its affiliates are not responsible for damage or loss of any kind that may occur as a result of using or misusing any product purchased from us.

    The warranty will no longer be valid, and GeeWiz will not be responsible for damage or injury of any kind resulting from:

    • Electricity fluctuations and surges, lightning strikes, faults in the building wiring, faulty installations, and improper use of controls
    • Failure to use the product in accordance with the operating instructions and or general misuse and or abuse
    • Damage caused by a superior force (vis major) or if the product has been infested with insects or pests
    • If the product is physically damaged after it left the store
    • If water or liquid caused the damage to the product
    • If the warranty seal is tampered with
    • Any repair or tampering by an unauthorised person or attempt to repair or tamper with the equipment, or use of parts not supplied by authorised agents, or alterations or modification to the equipment shall render the warranty null and void.
