Odroid N2+ - 4GB Ram with 12V 2A Power Supply

GW-T-Odroid N2+ - 4GB Ram with 12V 2A Power Supply
>Earn 47 points/R47 Earn 47 points/R47 (Each R100 spent = 1 point, 1 point = R1 discount)
Your cart will total 47 points that can be converted into a voucher of R47.
  • On board RTC(Real Time Clock) IC to keep date and time
  • The CR2032 coin battery holder was replaced with the 2-pin 1.25mm pitch connector
  • No battery is included on the board
  • You can keep the RTC time up to several years with a 200mAh CR2032 battery
  • 8MiB SPI Flash for boot manager
  • IR receiver for remote controller
  • Built with a large passive heatsink
  • Active Cooling Fan Connector (5V 2-pin) – Connector (2-pin, 1.25mm pitch)
R4,697 incl. VAT
R4,085 excl. VAT
FREE DELIVERY

IN STOCK AT OVERSEAS SUPPLIER - DISPATCHED/COLLECTION IN 14-20 DAYS

Volume discounts

Quantity Price You Save
5 R4,604 2%
10 R4,510 4%
30+ click to email

Quantity

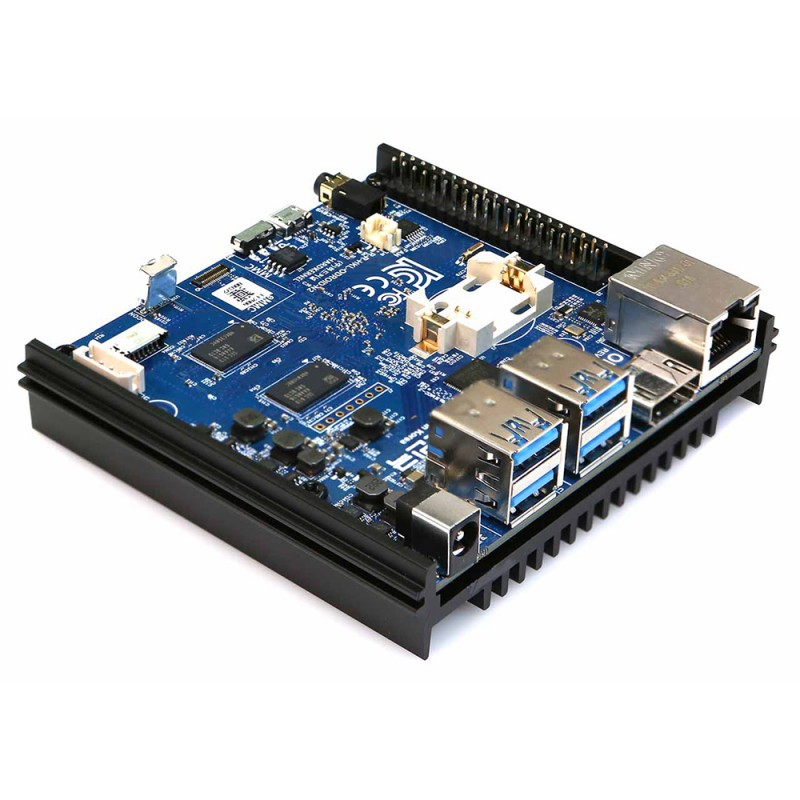

ODROID N2+ is a new generation single board computer that is more powerful, more stable, and faster performing than N1. The main CPU of the N2+ is based on an architecture which integrates a quad-core ARM Cortex-A73 2.4Ghz CPU cluster and a dual core Cortex-A53 2.0Ghz cluster with a new generation Mali-G52 GPU. Thanks to the modern 12nm silicon technology, the A73 cores runs at 2.4Ghz without thermal throttling using the stock metal-housing heatsink allowing a robust and quiet computer.
The CPU multi-core performance is around 20% faster and the GPU is 10% faster than the N1. The N2+’s DDR4 RAM is running at 1320Mhz with 1.2volt low power consumption. The large metal housing heatsink is designed to optimize the CPU and RAM heat dissipation and minimize throttling. The CPU is placed on the bottom side of the PCB to establish great thermal characteristics.
Heatsink size comparison : The system height decreased from 34mm to 29mm approximately thanks to the slimmer heatsink on the N2+

Features

- On board RTC(Real Time Clock) IC to keep date and time. A CR2032 coin battery holder was replaced with the 2-pin 1.25mm pitch connector. No battery is included on the board
- You can keep the RTC time up to several years with a 200mAh CR2032 battery
- 8MiB SPI Flash for boot manager
- IR receiver for remote controller
- Built with a large passive heatsink
- System LEDS Indicators: Red (PWR) – Solid light when DC power is connected, – Blue (ALIVE) – Flashing like heartbeat while Kernel is running
- Active Cooling Fan Connector (5V 2-pin) – Connector (2-pin, 1.25mm pitch)

Specifications

Form Factor
- Board Dimensions: 90mm x 90mm x 17mmHeatsink Dimensions: 100mm x 91mm x 18.75mm
- Weight: 200g including heatsink
Processor

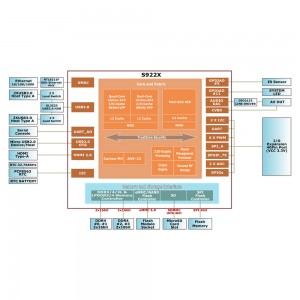

- Amlogic S922X Processor (12nm fab)Quad-core Cortex-A73(up to 2.4Ghz) and Dual-core Cortex-A53 (up to 2Ghz)
- ARMv8-A architecture with Neon and Crypto extensions
- Mali-G52 GPU with 6 x Execution Engines (800Mhz)
Memory
- DDR4 4GiB with 32-bit bus width, Data rate: 2640 MT/s (PC4-21333 grade)
- 1.2Volt low power design
Storage
- 1 x eMMC connector (8G, 16G, 32G, 64G and 128G are available)
- 1 x microSD slot (DS/HS modes up to UHS-I SDR104)
Networking
- 1 x GbE LAN ports (RJ45, supports 10/100/1000 Mbps)– Realtek RTL8211F (Ethernet transceiver)
- LED indicators: * Green LED: Flashing by data traffics at 100Mbps connection, * Amber LED: Flashing by data traffics at 1000Mbps connection
- Optional WiFi USB adapters
VideO
- 1 x HDMI 2.0 (up to 4K@60Hz with HDR, CEC, EDID)1 x Composite video (3.5mm jack)
Audio
- 1 x Stereo Audio line-out (3.5mm jack)1 x HDMI digital output
- 1 x Optional SPDIF optical output
External I/O
- 4 x USB 3.0 Host ports (shares one single root hub)
- 1 x USB 2.0 OTG port for Host or Device mode. (No power input)
- 1 x Debug serial console (UART)

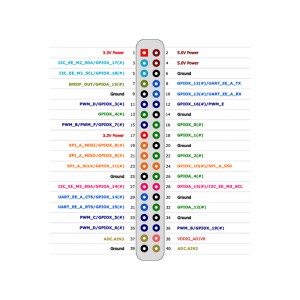

- 1 x Peripheral Expansion Header (40-pin, 2.54mm pitch)
- 2 x DC 5V, 2 x DC 3.3V, 1 x DC 1.8V, 8 x GND
- 1 x SPI
- 1 x UART
- 2 x I2C
- 25 x GPIO (Max)
- 2 x ADC input (10bit, 1.8V Max)
- All 3.3V I/O signal level except for ADC input at max 1.8Volt.
Power
- 1 x DC jack : outer (negative) diameter 5.5mm, inner(positive) diameter 2.1mmDC 7.5V ~ 18V (up to 25W)
- DC 12V/2A power adaptor is recommended and included!
Power Consumption
- IDLE : ≃ 2.2W (Performance governor)
- CPU Stress : ≃ 5.9W (@2016/2208MHz), 6.2W (@2016/2400MHz)
- Power-off : ≃ 0.2W

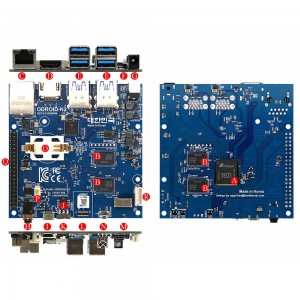

N2+ Board Guide (Note: Please do take a look at the images in the product gallery as a point of reference)

A S922X CPU J 1 x SPI Flash 8MiB
B 4 x DDR4 RAM K 1 x SPI Boot Select Switch
C 1 x RJ45 Ethernet Port (10/100/1000) L 1 x eMMC Module Socket
D 1 x HDMI 2.0 M 1 x Micro SD Slot
E 4 x USB 3.0 N 1 x IR Receiver
F 2 x System LED Indicators O 1 x RTC Backup Battery Holder
G 1 x DC Power Jack P 1 x Active Cooling Fan Connector (2-pin)
H 1 x AV Out (Stereo Audio with Composite video) Q 40 x GPIO Pins
I 1 x Micro USB2.0 OTG R 1 x UART for System Console
