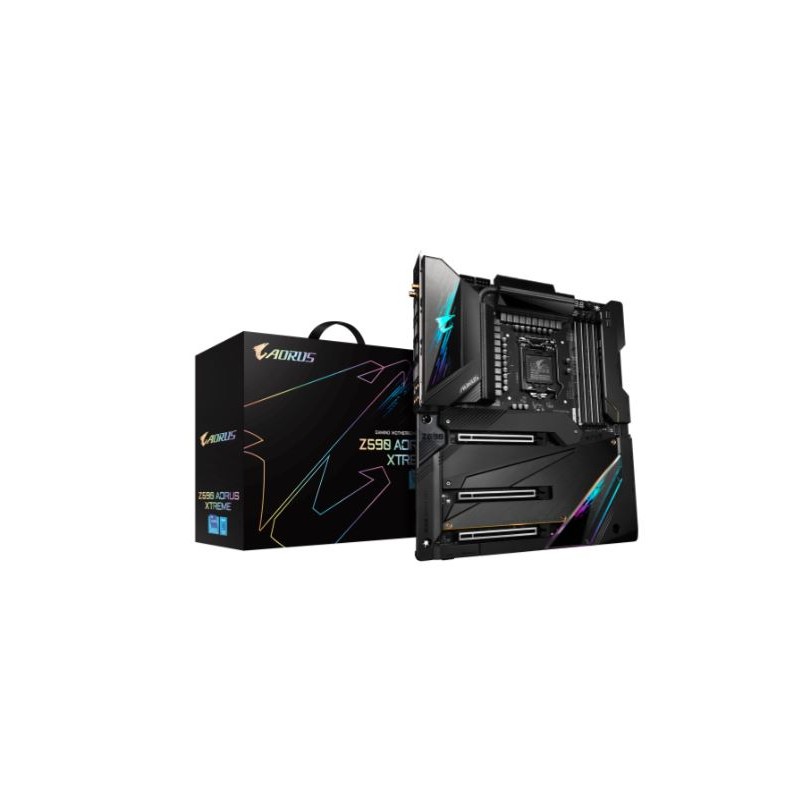

Gigabyte Aorus Z590 Extreme Wireless Motherboard

MB-GZ590AX+WT
>Earn 120 points/R120 Earn 120 points/R120 (Each R100 spent = 1 point, 1 point = R1 discount)
Your cart will total 120 points that can be converted into a voucher of R120.
  • Aorus Z590 Extreme Wireless Motherboard
R12,034 incl. VAT
R10,465 excl. VAT
FREE DELIVERY

IN STOCK at EXTERNAL supplier.
If ordered before 10AM:
DELIVERED next business day (main centres)
or 3-5 business days (regional areas or large items)
COLLECTION from GeeWiz available Same Day (approx 4:30pm)

Product is expected to be in stock, however stock levels are LOW, so stock may be finished. If ordered, we will contact you if this product is sold out

From R1,121
per month

Volume discounts

Quantity Price You Save
5 R11,794 2%
10 R11,553 4%
30+ click to email

Quantity
Add to Quote
Wishlist
Compare

FEATURES

Z590 AORUS XTREME

Showcasing a state-of-the-art design, excellent functionality, an impressive thermal design, next generation connectivity, a Hi-Fi level audio system, and AORUS aesthetics, the flagship Z590 AORUS XTREME motherboard dominates the competition.

ESSential USB DAC

Complete Digital to Analog Signal processing on front-access USB Type-C ports gets rid of any possibility of distortions and provides superb sound stage recreation so users can experience the vocal cohesion. Enjoy the depth of the music and the immersive sound profile.

  • USB Type-C for PC, Laptop and Android Devices
  • Replace Ancient Front Audio Interfaces
  • Powered by ESS SABRE HIFI DAC
  • Premium Power Processing
  • Left/Right Separation Routing
  • Superior Sound Stage by WIMA Capacitors

AORUS Gen4 AIC Adaptor

  • Easy One Click RAID by AORUS Storage Manager, Full PCIe 4.0 Design, Advanced Thermal Solution for PCIe 4.0 SSD
  • 4 x PCIe 4.0/3.0 M.2 Slots
  • Full PCI Express 4.0 Ready Design
  • Advanced Thermal Solution for PCIe 4.0 SSD
  • Easy Software RAID with Single Click to Get Amazing Performance
  • Custom AORUS Storage Manager
CPU
  • LGA1200 package
  • 11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors
  • 10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors*
  • Limited to processors with 4 MB Intel Smart Cache, Intel Celeron G5xx5 family.
  • L3 cache varies with CPU
Chipset
  • Intel Z590 Express Chipset
Memory
  • 11th Generation Intel Core i9/i7/i5 processors:
  • Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules
  • 10th Generation Intel Core i9/i7 processors
  • Support for DDR4 2933/2666/2400/2133 MHz memory modules
  • 10th Generation Intel Core i5/i3/Pentium/Celeron processors:
  • Support for DDR4 2666/2400/2133 MHz memory modules
  • 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  • Dual channel memory architecture
  • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics
  • Integrated Graphics Processor+Intel Thunderbolt 4 Controller:
  • 2 x Intel Thunderbolt 4 connectors (USB Type-C ports), supporting DisplayPort and Thunderbolt video outputs and a maximum resolution of 5120 x 2880@60 Hz with 24 bpp (via single display output)
  • Support for DisplayPort 1.4 version, HDCP 2.3
  • Integrated Graphics Processor-Intel HD Graphics support:
    • 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
    • Support for HDMI 1.4 version and HDCP 2.3.
  • Graphics specifications may vary depending on CPU support.
Audio
  • Realtek ALC1220-VB codec+ESS ES9018K2M DAC+TI OPA1622 operational amplifier
  • Support for DTS:X Ultra
  • High Definition Audio
  • 2/4/5.1/7.1-channel
  • Support for S/PDIF Out
LAN
  • 1 x Aquantia 10GbE LAN chip (10 Gbit/5 Gbit/2.5 Gbit/1 Gbit/100 Mbit) (LAN1)
  • 1 x Intel 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit) (LAN2)
  • Wireless Communication module
  • Intel Wi-Fi 6E AX210
  • WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.2
  • Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Expansion Slots
  • 1 x PCI Express x16 slot, running at x16 (PCIEX16)
  • 1 x PCI Express x16 slot, running at x8 (PCIEX8)
  • The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
  • The PCIEX16 and PCIEX8 slots conform to PCI Express 4.0 standard.
  • Supported by 11th Generation processors only.
  • 1 x PCI Express x16 slot, running at x4 (PCIEX4)
Multi-Graphics Technology
  • Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies
Storage Interface
  • CPU
    • 1 x M.2 connector (Socket 3, M key, type 2242/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)
    • Supported by 11th Generation processors only.
  • Chipset
    • 1 x M.2 connector (Socket 3, M key, type 2242/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB)
    • 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2M_SB)
  • 6 x SATA 6Gb/s connectors
  • Support for RAID 0, RAID 1, RAID 5, and RAID 10
  • Intel Optane Memory Ready
USB
  • Chipset+Intel Thunderbolt 4 Controller
  • 2 x USB Type-C ports on the back panel, with USB 3.2 Gen 2 support
  • Chipset
    • 1 x USB Type-C port with USB 3.2 Gen 2x2 support, available through the internal USB header
    • 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
  • Chipset+2 USB 3.2 Gen 2 Hubs
    • 6 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
    • 2 x USB 3.2 Gen 1 ports available through the internal USB header
  • Chipset+USB 2.0 Hubs
    • 4 x USB 2.0/1.1 ports available through the internal USB headers (with the included front USB header extension cable)
Internal I/O Connectors
  • 1 x 24-pin ATX main power connector
  • 2 x 8-pin ATX 12V power connectors
  • 1 x CPU fan header
  • 1 x water cooling CPU fan header
  • 6 x system fan headers
  • 2 x system fan/water cooling pump headers
  • 1 x noise detection header
  • 2 x integrated extension cable headers for addressable and RGB LED strips
  • 6 x SATA 6Gb/s connectors
  • 3 x M.2 Socket 3 connectors
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x USB Type-C header, with USB 3.2 Gen 2x2 support
  • 1 x USB 3.2 Gen 1 header
  • 1 x USB 2.0/1.1 headers
  • 2 x temperature sensor headers
  • 1 x power button
  • 1 x reset button
  • 1 x OC Ignition button
  • 2 x BIOS switches
  • Voltage Measurement Points
Back Panel Connectors
  • 1 x Q-Flash Plus button
  • 1 x Clear CMOS button
  • 2 x SMA antenna connectors (2T2R)
  • 2 x Thunderbolt 4 connector (USB Type-C port, with USB 3.2 Gen 2 support)
  • 8 x USB 3.2 Gen 2 Type-A ports (red)
  • 1 x HDMI port
  • 2 x RJ-45 port
  • 1 x optical S/PDIF Out connector
  • 5 x audio jacks

PRODUCT SPECIFICATIONS

Brand Gigabyte
Item model number MB-GZ590AX+WT
Product Type Motherboard
GIGABYTE
