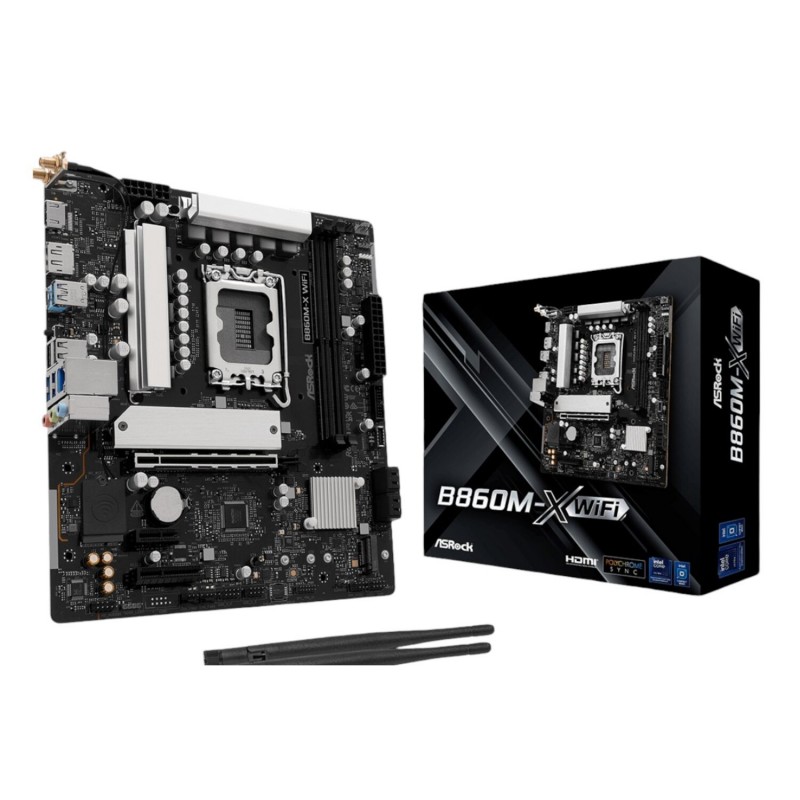

ASRock B860M-X Micro ATX DDR5 Motherboard (PCIe 5 and Wi-Fi 6E)

B860M-XWIFI
>Get registered and you will earn 31 points Get registered and you will earn 31 points (Each R100 spent = 1 point).
Your cart will total 31 points.
  • PCIe Gen5 M.2 slot delivers ultra-fast 128Gb/s storage speeds for high-performance applications
  • Dual DDR5 DIMMs support up to 128GB at 9066+ MHz (OC) for enhanced multitasking and future-proof memory bandwidth
  • Intel Wi-Fi 6E and 2.5GbE LAN with smart traffic control for ultra-reliable, low-latency networking
  • Robust 7+1+1+1+1 power phase design with 6-layer PCB ensures stable performance and thermal efficiency
  • BIOS Flashback and preloaded LAN driver enable CPU-less firmware updates and seamless system setup
  • HDMI 2.1 and DisplayPort 1.4 support 4K 120Hz and 8K 60Hz output for next-gen integrated graphics workflows
  • ASRock Polychrome SYNC with RGB and addressable headers for system-wide custom lighting control
  • Smart fan tuning with auto-detection, curve configuration, and A-Tuning software for intuitive thermal management
  • Compact Micro ATX form factor balances component compatibility with space-saving design
  • Compatible with Intel® Core™ Ultra (Series 2) CPUs featuring AI acceleration and Hybrid Technology
R3,060 incl. VAT
R2,661 excl. VAT
FREE DELIVERY

IN STOCK at EXTERNAL supplier.
If ordered before 10AM:
DELIVERED next business day (main centres)
or 3-5 business days (regional areas or large items)
COLLECTION from GeeWiz available Same Day (approx 4:30pm)

From R285
per month
Or as low as R1,020 over 6 months interest-free, using your existing credit card. How it works

Volume discounts

Quantity Price You Save
5 R2,999 2%
10 R2,938 4%
30+ click to email

Quantity
Wishlist

For system builders who want performance without the bulk, the ASRock X-Series Micro ATX DDR5 Motherboard with PCIe Gen5 & Wi-Fi 6E stands out as a compact powerhouse engineered for serious productivity. It’s designed to support the latest Intel® Core™ Ultra Series 2 CPUs on the LGA1851 socket, combining next-gen processing with high-speed memory and lightning-fast connectivity.

The Micro ATX form factor makes it ideal for compact setups, but there’s nothing small about what it delivers. Dual DDR5 DIMM slots support up to 128GB with overclocking speeds north of 9066MHz. This level of headroom means smoother multitasking, faster compile times, and more responsive virtualisation—especially useful for professionals working across demanding workflows.

Storage is handled with equal ambition: a blazing PCIe Gen5 M.2 slot on the CPU lane delivers up to 128Gb/s, complemented by Gen4 M.2 and four SATA ports with RAID support. Visual output is equally robust, with support for 4K 120Hz via HDMI 2.1 and up to 8K 60Hz through DisplayPort 1.4, ideal for content creators and multi-monitor users.

Networking and I/O are where the board quietly excels. You get 2.5GbE LAN with smart bandwidth controls and Wi-Fi 6E for reliable wireless throughput—even in congested environments. Add BIOS Flashback, driver-free installation, and ASRock’s signalRGB lighting control, and you’ve got a board that’s as functional as it is forward-looking.

This is more than just a Micro ATX DDR5 motherboard with PCIe Gen5—it’s a strategic backbone for professionals who demand desktop-grade stability in a smaller footprint. If versatility, speed, and build efficiency matter, this board deserves a serious look.

FEATURES

  • PCIe Gen5 M.2 slot delivers ultra-fast 128Gb/s storage speeds for high-performance applications
  • Dual DDR5 DIMMs support up to 128GB at 9066+ MHz (OC) for enhanced multitasking and future-proof memory bandwidth
  • Intel Wi-Fi 6E and 2.5GbE LAN with smart traffic control for ultra-reliable, low-latency networking
  • Robust 7+1+1+1+1 power phase design with 6-layer PCB ensures stable performance and thermal efficiency
  • BIOS Flashback and preloaded LAN driver enable CPU-less firmware updates and seamless system setup
  • HDMI 2.1 and DisplayPort 1.4 support 4K 120Hz and 8K 60Hz output for next-gen integrated graphics workflows
  • ASRock Polychrome SYNC with RGB and addressable headers for system-wide custom lighting control
  • Smart fan tuning with auto-detection, curve configuration, and A-Tuning software for intuitive thermal management
  • Compact Micro ATX form factor balances component compatibility with space-saving design
  • Compatible with Intel® Core™ Ultra (Series 2) CPUs featuring AI acceleration and Hybrid Technology

SPECEFICATIONS

CPU

  • Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851)
  • Intel® Hybrid Technology
  • Intel® Turbo Boost Max 3.0, Thermal Velocity Boost (TVB) & Adaptive Boost Technology (ABT)
  • Integrated NPU for dedicated AI acceleration

Chipset

  • Intel® B860

Memory

  • Dual Channel DDR5 Memory Technology
  • 2 x DDR5 DIMM Slots
  • Supports DDR5 non-ECC, un-buffered memory up to 9066+ MHz (OC)
  • Supports Clocked Unbuffered DIMM (CUDIMM)
  • Max capacity: 128GB
  • Intel® Extreme Memory Profile (XMP) 3.0x support

BIOS

  • 256Mb AMI UEFI Legal BIOS with GUI

Graphics

  • Intel® Xe LPG Graphics Architecture
  • 1 x HDMI 2.1 TMDS/FRL 8G (HDR, HDCP 2.3, up to 4K 120Hz)
  • 1 x DisplayPort 1.4 with DSC (HDCP 2.3, up to 8K 60Hz / 5K 120Hz)

Audio

  • 7.1 CH HD Audio (Realtek ALC897 Codec)

LAN

  • 2.5GbE LAN (Dragon RTL8125BG)
  • Dragon 2.5G LAN Software
  • Smart Auto Adjust Bandwidth, visual UI, network stats, and profile optimisation

Wireless LAN

  • 802.11axe Wi-Fi 6E (Dual-Band 2x2, extended 6GHz)
  • Supports IEEE 802.11a/b/g/n/ac/ax/axe
  • Bluetooth 5.3
  • MU-MIMO support
  • 2x antenna diversity

Expansion Slots

  • 1 x PCIe 4.0 x16 (x16 mode)
  • 1 x PCIe 4.0 x1
  • 1 x PCIe 4.0 x4
  • 1 x M.2 (Key E) for Wi-Fi/BT (2230), Intel® CNVio/CNVio2

Storage

  • 1 x Blazing M.2 (Key M) PCIe Gen5x4 (128 Gb/s, 2260/2280)
  • 1 x Hyper M.2 (Key M) PCIe Gen4x4 (64 Gb/s, 2230–2280)
  • 4 x SATA3 6Gb/s

RAID

  • RAID 0, 1, 5, 10 (SATA only)

USB

  • 1 x USB 3.2 Gen2x2 Type-C (Rear)
  • 1 x USB 3.2 Gen1 Type-C (Front)
  • 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front)
  • 6 x USB 2.0 (2 Rear, 4 Front)

Internal Connectors

  • 1 x SPI TPM Header
  • 1 x Power LED + Speaker Header
  • 1 x RGB LED Header
  • 2 x Addressable LED Headers
  • 2 x CPU Fan (4-pin, Smart Control)
  • 2 x Chassis Fan (4-pin, Smart Control)
  • 1 x AIO Pump Fan (4-pin, Smart Control)
  • 1 x 24-pin ATX Power
  • 1 x 8-pin 12V Power (Hi-Density)
  • 1 x 4-pin 12V Power (Hi-Density)
  • 1 x Front Panel Audio
  • 2 x USB 2.0 Headers (up to 4 ports)
  • 1 x USB 3.2 Gen1 Header (2 ports)
  • 1 x Front Panel USB 3.2 Gen1 Type-C Header

Rear I/O Ports

  • 2 x Antenna Ports
  • 1 x HDMI
  • 1 x DisplayPort 1.4
  • 1 x USB 3.2 Gen2x2 Type-C
  • 3 x USB 3.2 Gen1
  • 2 x USB 2.0
  • 1 x RJ-45 LAN
  • 1 x BIOS Flashback Button
  • 3 x HD Audio Jacks (Line-in, Front Speaker, Mic)

Software & UEFI

  • ASRock A-Tuning, Dragon 2.5G LAN Software
  • ASRock Polychrome SYNC
  • EZ Mode & Full HD UEFI
  • My Favourites, Auto Driver Installer, Instant Flash

Form Factor

  • Micro ATX (24.4cm x 21.8cm)

Operating System

  • Microsoft Windows® 11 64-bit

Certifications

  • FCC, CE, ErP/EuP Ready

WHAT'S IN THE BOX

  • ASRock B860M-X Micro ATX DDR5 Motherboard x1
  • I/O Shield x1
  • SATA Data Cables x2
  • ASRock WiFi 2.4/5/6 GHz Antennas x2
  • Screw for M.2 Socket x1
  • Standoff for M.2 Socket x1
