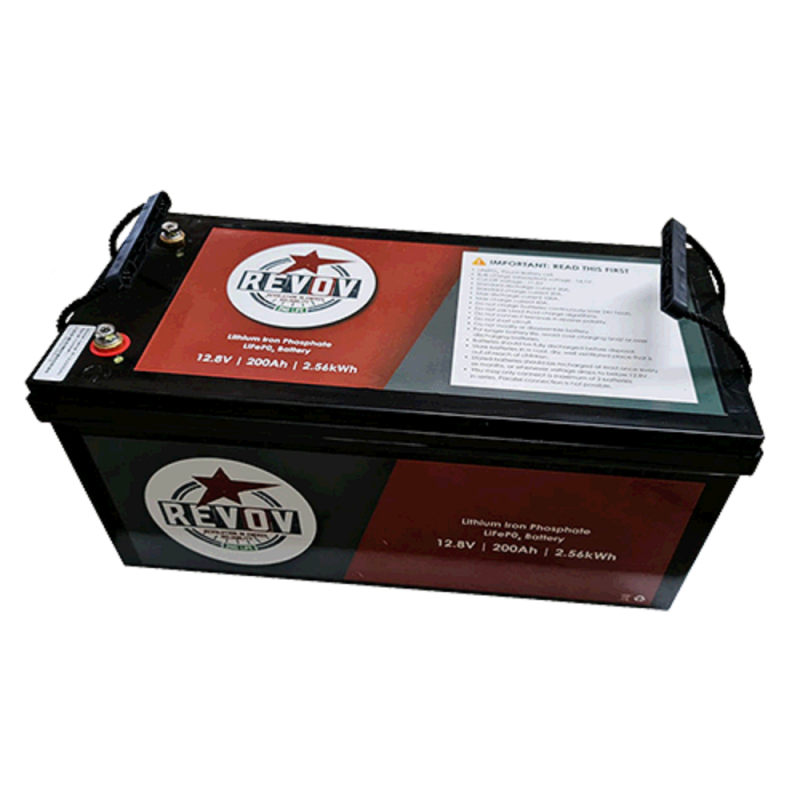

REVOV 200Ah 12.8V 12V LifePO4 Lithium-ion Battery - 2nd Life Cells / 2.56kWh WITH BLUETOOTH

GW-A-REVOV 12V 200ah Battery
>Earn 85 points/R85 Earn 85 points/R85 (Each R100 spent = 1 point, 1 point = R1 discount)
Your cart will total 85 points that can be converted into a voucher of R85.
  • Ultra-safe Lithium Iron Phosphate (LiFePO4) technology
  • Integrated battery management System (BMS)
  • Light weight & compact
  • Water & dust resistant (IP56)
  • Highly durable ABS enclosure
  • Drop-in lead acid replacement (with LI consideration) for static storage
  • Internal BMS for self protecting and maintenance
  • The battery can be connected in series up to 24V
  • Under and over voltage protection
  • The Bluetooth app allows for the display of the battery’s Total Voltage, Remaining Voltage, Temperature and Time Left until fully Discharged
  • MAX 2 x batteries in series for 24V
  • MAX 4 x batteries in parallel in 12V system only
  • 3 years or 2 000 cycles Warranty
  • ** Operating Current: Max 100a
R8,495 incl. VAT Save R1,000
R7,387 excl. VAT
R9,495
+ R395 courier surcharge
Owing to the weight/size of this item, it will incur an additional R395 shipping fee. Collection from GeeWiz is at no charge

IN STOCK at GeeWiz!
If ordered before 4PM (excl. Sundays & Public holidays):
DELIVERED next business day (main centres)
or 3-5 days (regional areas or large items)
COLLECTION from GeeWiz available SAME DAY
Also available for in-store purchase during business hours!

Volume discounts

Quantity Price You Save
5 R8,326 2%
10 R8,156 4%
30+ click to email

Quantity

The 12.8V 200 Ah battery is (LiFePO4) chemistry and has an integrated battery management system making it the perfect portable power solution.

Lithium Iron Phosphate battery technology has greater energy density and lifecycle, it is a stable chemistry that maintains a high thermal runaway, resulting in a long life at low costs .

Bluetooth APP:
XIAOXIANG

Android
https://play.google.com/store/apps/details?id=com.jiabaida.little_elephant&hl=en&gl=US

iOS:
https://apps.apple.com/us/app/xiaoxiang-bms/id1375405426

Axpert Voltages:
Bulk: 14.1v
Float: 13.7v
CutOff: 11.2v

MUST 1Kw Inverter:
Bulk: 14.1v
Float: 13.5v
CutOff: 11.2v

Failing to set the above, will VOID the warranty as the history is recorded in the BMS

Application
Camping Equipment companies
4x4 enthusiasts
24V Backup Systems

Specifications
Nominal Capacity: 200Ah
Nominal Energy: 2560Wh
Nominal Voltage: 12.8V
End of Discharge Voltage: 11.5V
Standard Charge Voltage: 14.1±0.2V
Float Charge Voltage: 13.7V
Standard Charge Current: 40A
Recommended Continuous Current: 70A ( Confirmed by Revov Technical Department )
Max Discharge Current: 100A ( Confirmed by Revov Technical Department )
BMS peak Current: 110A, 0.5Sec ( Confirmed by Revov Technical Department )
Internal Resistance: <20mΩ
Size (Length x Width x Height): 500mm x 235mm x 220mm
Weight: 23kg
Ex-factory Capacity SOC: Approx. 50% SOC
Discharge Temperature: -20°C – 60°C
Charge Temperature (must be reduced at 0°C – 5°C): 0°C – 45°C
Recommended Storage Environment: 15 – 45°C @ 75% SOC
Cycle Storage: @ 50% 56C within 6 months

Electrical Characteristics & Test Condition
- Nominal Capacity: <200Ah
- Internal Impedance: <40mΩ
- Short Circuit Protection under and over Voltage Protection: Auto Cutoff Load when Short Circuit

- MAX 2 x batteries in series for 24V
- MAX 4 x batteries in parallel in 12V system only

*Please note - delivery will take 1-2 days extra to any area outside of Gauteng
*Please note - an additional charge of R395 shipping applies owing to the weight of the battery
*Collection from our Johannesburg office will be at no additional charge

GeeWiz
GW-A-REVOV 12V 200ah Battery
  • Name : Return policy
  • Description

    Return of merchandise (RMA) and Warranty

    We want you to be happy with the purchase you have made from us. If you are not completely satisfied, you may return the product to us and we will either refund, credit, repair/replace it, subject to the below terms and conditions.

    You can return purchases for a refund (excl shipping). Please notify us within 7 days and ensure item is ready maximum 10 days after delivery date.

    Please ensure to log your return request within 7 days of receipt of your item. Please ensure to select the correct reason for return:

    - Changed my mind / Item exchange

    - Faulty on arrival

    - Incorrect item received

    All items are covered by a 12 month warranty (unless otherwise stated) which will be honoured directly by GeeWiz. All products will either be replaced/repaired/refunded depending on stock availability. Products will require evaluation by GeeWiz before a warranty claim can be accepted.

    Should the item being returned for assessment be found to be in good working order, unfortunately, there will be a collection fee that will apply.

    The collection fees are as follows:

    - For returns on items that were sent with free shipping: R198

    - For returns that had a surcharge, the same surcharge will apply for collection.

    Please log your return on your account, under the returns manager.

    We do not reimburse your fee to ship to us, but we will pay for return shipping if the item is subject to replacement. If the item you wish to return was ordered incorrectly / is no longer required / you have changed your mind, there is a collection fee that will be charged (please refer to the above) and this will be deducted from the refund amount once the supplier has credited us. Please note GeeWiz will only cover return shipping of a faulty unit within 6 months of purchase, after which, a shipping fee (starting from R198) will be applicable to you for the return of the unit.

    Any disputes relating to ordered items being short/incorrectly shipped will only be entertained if reported to GeeWiz within 3 days of delivery/collection.

    Refunds are subject to inspection of item(s) - in some cases, items will need to be sent to supplier for evaluation and testing. This can take up to 15 working days. Once a refund has been approved, this may take 3 - 5 business days to be processed.

    ALL returns are subject to a 15% restocking fee if item is no longer in BRAND NEW condition or if item seal/packaging has been broken.

    Please re-package safely and include all original product packaging.

    All software products are unfortunately not eligible for credit or refund once purchased.

    After the 6-month period, you will no longer be eligible and won't be able to receive a refund. We can however replace or repair depending on the outcome after our team of professionals has inspected the product.

    Should a warranty sticker not be present on an item, the warranty is immediately null and void.

    Batteries are covered under warranty, but please note that GEL, AGM and LEAD ACID have limited cycle runs. These are typically around 200 cycles and may run out before the end of the warranty. Once the cycles have been depleted, it means the battery has reached the end of life and will no longer be a warranty claim.

    GeeWiz reserves the right to refuse a refund if the item is damaged from misuse, items are missing, or if the product is altered in any way.

    GeeWiz or its affiliates are not responsible for damage or loss of any kind that may occur as a result of using or misusing any product purchased from us.

    The warranty will no longer be valid, and GeeWiz will not be responsible for damage or injury of any kind resulting from:

    • Electricity fluctuations and surges, lightning strikes, faults in the building wiring, faulty installations, and improper use of controls
    • Failure to use the product in accordance with the operating instructions and or general misuse and or abuse
    • Damage caused by a superior force (vis major) or if the product has been infested with insects or pests
    • If the product is physically damaged after it left the store
    • If water or liquid caused the damage to the product
    • If the warranty seal is tampered with
    • Any repair or tampering by an unauthorised person or attempt to repair or tamper with the equipment, or use of parts not supplied by authorised agents, or alterations or modification to the equipment shall render the warranty null and void.
  • Click here to get more details

3 Question(s) answered

  • Asked by Donny Felice
    24/02/2023
    Hi, I have an axpert 3kW inverter 24V with lead acid batteries connected. However they only lasted for about 1 year as upon further investigating, I saw they only had 250 cycles. Will thse batteries work with this inverter, I draw a load of about 500w during loadshedding and dieally would like it to last for 4 hours and atleast a couple of years. Answer:
    Hi Donny Thanks for your inquiry, so sorry that your old batteries are no longer lasting. This will be compatible with your inverter. It would last around 5hrs on a 500w load.
  • Asked by Japie Bezuidenhout
    01/03/2023
    How do i set this on my 1200 va inverter.(Please set voltages to Bulk - 14.1V, Float - 13.7V, Cut Off - 11.5V.) Answer:
    Hi Jappie Thanks for your email. The 1200va will not require the settings to be input for this battery, we have tested and confirmed it works without issues.
  • Asked by Shaun Laubscher
    03/03/2023
    Considering picking one of these up, I am in Cape Town though. Do you have stock and what would the delivery fee be? Answer:
    Hi Shaun Thanks for your inquiry. We don't have stock at the moment ETA is expected in 10-12 weeks, and the surcharge is R395.
