The controller is the most important element of the automatic irrigation system. With its help, we can control the irrigation zones, set the irrigation time and the irrigation frequency. Its types include the simplest tap controller or even the most complex industrial controller. We can distinguish several categories, network or battery-powered, with a fixed number of zones or expandable, indoor or outdoor design, manually programmable or smart controller (controller connected to the Internet). The controller's task is to open or close the solenoid valves, process the signals from the sensors, or even start the pump based on the set programs.

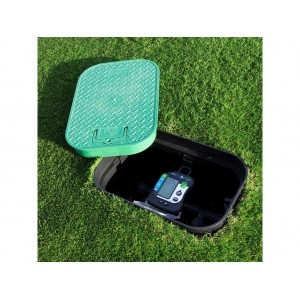

The Rain Amico PRO battery controller was developed for irrigating small gardens where there is no network connection option or its installation would be too expensive. An extremely reliable product that provides stable, balanced performance in the long term. This controller type is available in 1, 2, or 4 zone versions. The Amico PRO controller is made with a special casing, with IP68 protection, so it can be installed in the valve shaft (it can even work underwater). The controller can be installed directly on the solenoid of the solenoid valve using the included brackets, or it can be attached to the Rain valve box bracket . Its operation is extremely simple, thanks to its clear interface, everyone can easily understand how to set the programs, start or even stop the irrigation. It can be placed in 2 1.5 V AA batteries (not included), which guarantee operation throughout the season. Rain controllers follow the company's philosophy of easy 3-step programming:

• The beginning of irrigation,
• The duration of irrigation,
• Repetition of irrigation.

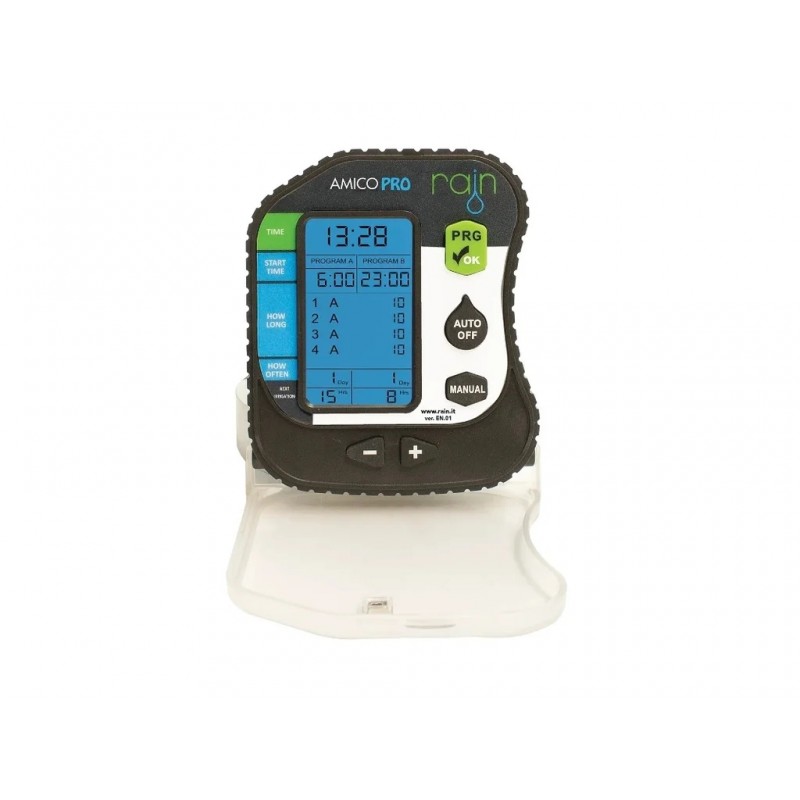

The controller can be connected to a closed rain sensor in the default state . This controller has 2 programs (A and B), watering can be started every 6, 12 or 24 hours or up to a maximum of 15 days according to repeating cycles. The running time of each zone can be set between 1 minute and 240 minutes for the 1-zone controller, between 1 minute and 180 minutes for the 2 or 4-zone controller in 1-minute increments. Amico PRO controllers are equipped with a wide LCD display with backlight, which displays the next watering time and the battery level. It is possible to start watering manually using a push button.

The Rain Amico PRO - 4 is a 4-zone battery-powered controller. Extremely reliable, versatile automation developed for home use. It is a battery-powered controller, so it is suitable for operating any 9 V solenoid valve . Its programming is extremely simple, it was developed so that anyone can make the settings on it. All settings can be easily read from the display.

FEATURES

• 2 program
• Irrigation duration of one circuit: 1 - 240 minutes
• Start every 6, 12 or 24 hours, or between 1-15 days
• Current time display
• Irrigation start indication
• Watering duration display
• Irrigation frequency pronunciation
• Indication of the start of the next watering
• Remaining watering time display
• Large 3” LCD display with backlight
• Low battery indicator

ELECTRICAL CHARACTERISTICS

• IP68 waterproof design
• Operates DC pulse retractor solenoid only: 9 VDC
• Rain sensor can be connected
• Power requirement: 2 x 1.5 V AA alkaline batteries (not included)

DIMENSIONS

• Height: 19 cm
• Width: 12.9 cm
• Depth: 4.9 cm
