- 100mm rewindable submersible motor for standard applications with maintenance-free lubricated bearings and non-toxic vegetable oil.
- Dimensions and flange follow NEMA4 standards.
- Requires matching stairs control boxes or a USB control box.

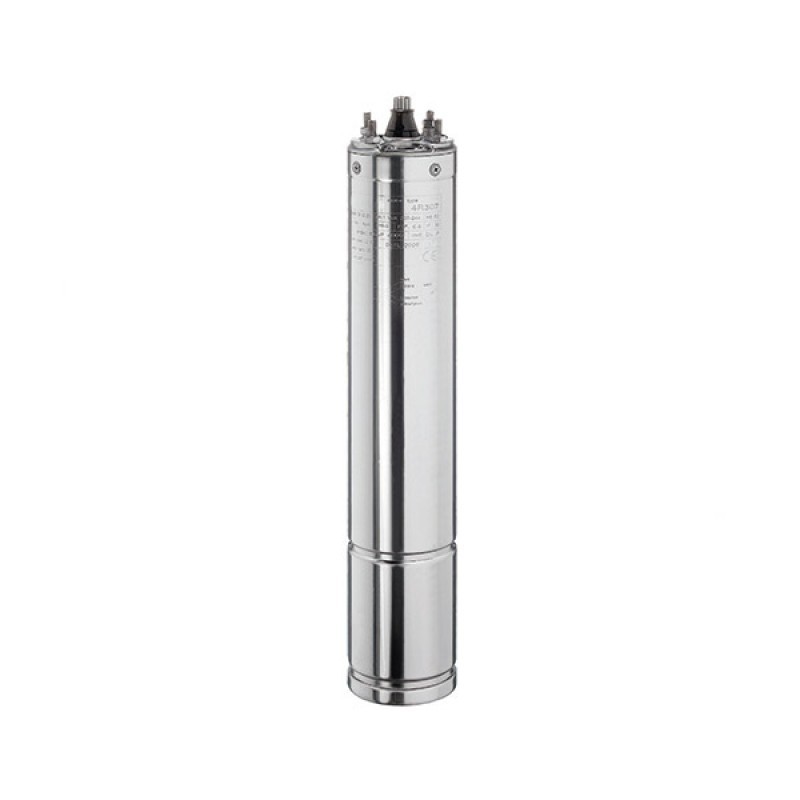

Stairs Motor Submersible 1.50KW 230V
6009507834709
Get registered and you will earn 34 points
(Each R100 spent = 1 point).Your cart will total 34 points.
- 100mm rewindable submersible motor for standard applications with maintenance-free lubricated bearings and non-toxic vegetable oil.
- Dimensions and flange follow NEMA4 standards.
- Requires matching stairs control boxes or a USB control box.
R3,410 incl. VAT
R2,966 excl. VAT
+ R195 courier surcharge
IN STOCK at EXTERNAL supplier.
If ordered before 10AM:
DELIVERED 2-3 business days (main centres)
or 5-7 business days (regional areas or large items)
COLLECTION from GeeWiz available 2-3 business days (approx 4:30pm)
Or as low as R1,137 over 6 months interest-free, using your existing credit card. How it works
100 mm Rewindable Submersible Motor For Standard Applications With Maintenance Free Lubricated Bearings And Approved Non-Toxic Vegetable Oil. Dimensions And Flange According To Nema4-Standards. Matching Stairs Control Boxes Must Be Installed Or A Usb Control Box. Maximum Water Temperature Of 35 degreesC And Immersion Depth Of 200 M. Motor Can Be Installed In A Horizontal Or Vertical Position. Motor Fitted With A Removable Lead-Out Cable. 0.37 Kw To 4 Kw. General Specifications: Mounting Flange: 4 Nema Standard; Insulation Class F; Protection Ip68; single phase Motors: 0.37 Kw Up To 4.0 Kw. Three-Phase Motors: 0.37 Kw Up To 7.5 Kw; Standard Voltages: 1 ~ 230 V (50 Hz); 3 ~ 230 V Or 400 V (50 Hz). Cable Length: 1.7 M - 0.37 Kw Up To 1.5 Kw; 2.5 M - 2.2 Kw Up To 7.5 Kw. Materials: Motor Shell - 304 Stainless Steel; Mechanical Seal - Ceramic/Carbon; Shaft (0.5 - 3 Hp) - 304 Stainless Steel; Shaft (4 -10 Hp) - 630 Stainless Steel.
