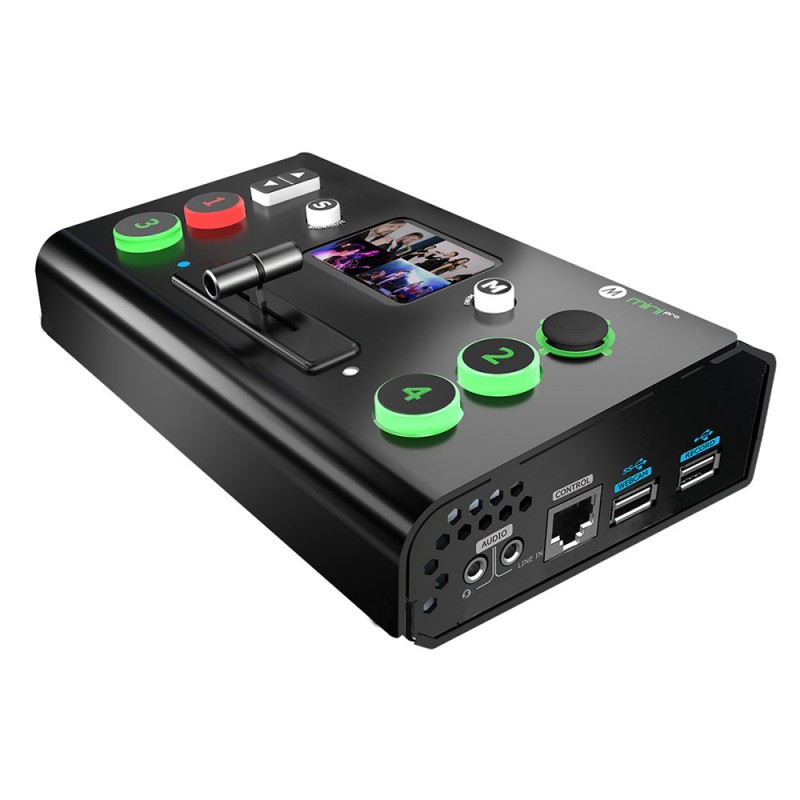

RGBlink Mini PRO - 4 Channel / 4K HDMI Live Streaming Production Switcher

GW-A-RGBLINK Mini Pro
>Earn 77 points/R77 Earn 77 points/R77 (Each R100 spent = 1 point, 1 point = R1 discount)
Your cart will total 77 points that can be converted into a voucher of R77.
  • Compact: Mini switcher, easy to carry
  • Stream: Driver-free, connect mini-pro easily to any platform
  • 4k: Resolution support for single input plus three 2K inputs
  • Scale: True dual-layer video scalable pixel-to-pixel
  • Mix:  transition between video sources & presets with effect
  • Preview: Six window previews selectable to any output
  • Touch: Modern intuitive controls
  • Apps: Remote control from mobiles, tablets, and computers
  • Follow: Pan, tilt, zoom, and focus cameras from the switcher
  • Key: Add transparency to a video to layer over a background
  • Listen: Embed an extract selected audio channel
R7,730 incl. VAT
R6,722 excl. VAT
FREE DELIVERY

IN STOCK AT EXTERNAL SUPPLIER - DISPATCHED/COLLECTION IN 5-7 DAYS

Volume discounts

Quantity Price You Save
5 R7,576 2%
10 R7,421 4%
30+ click to email

Quantity

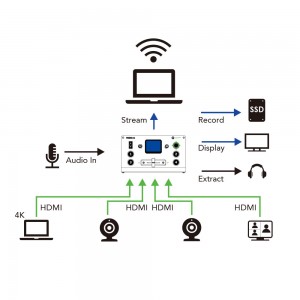

The mini-pro, a dual-channel video switcher mixer for the streaming generation, boasts four resolution-independent inputs—up to full 4K60—letting you take advantage of native high-performance sources, like cameras or laptops, without compromise.
While presets exist for PIP (Picture-in-Picture) and PBP (Picture-by-Picture), the mini-pro truly stands out with its full pixel-to-pixel scaling capabilities for both PIP and background video layers, a feature usually found only on larger professional mixers.
This versatility extends to audio, with selectable output from embedded sources or an external connection. Both Line and Mic level audio are supported onboard, complete with variable delay controls for perfect audio sync.

Beyond HDMI and USB 3.0 streaming outputs, the mini-pro features a dedicated USB recording port, allowing direct connection and recording to a portable drive.
Its unique built-in display not only offers video previews but also boasts touch controls for intuitive operation of features and settings. For added convenience, remote control is also available via free companion apps for laptops and mobile devices.

Packed with features, the mini-pro offers dynamic output control, preview multi-view, picture-in-picture, Chroma Key, video transitions, onboard PTZ camera controls, and much more.

Features

Mini switcher for convenient portability
Built-in LCD for video previews
Joystick Camera Control for easy adjustments
T-Bar switch with 14 transition effects for smooth transitions
4K HDMI inputs for high-resolution video
Support for live streaming via USB 3.0
Support for recording via USB 2.0
Embedded & Insert Audio with Sync for enhanced audio capabilities
Audio mixing from multiple inputs
Configurable PIP (Picture-in-Picture) video overlay
Chroma Key for advanced video effects
Support for third-party apps, including OBS Studio
Remote control using XPOSE mini software for computers, mobiles, and tablets

Specifications

Connectors

Input: HDMI 4K: 4× HDMI-A
Output: HDMI 2K: 1× HDMI-A
Streaming: 1× USB Type-A
Recording: 1× USB Type-A
Audio: In: 2× 3.5mm Stereo Jack, Out: 1× 3.5mm Stereo Jack
Communication: LAN: 1× RJ45
Power: 1× USB-C

Performance

Input Resolutions

HDMI SMPTE: 720p@50/60, 1080i@50, 1080p@24/30/50/60, 2160p@60
VESA: 1024×768@60, 1280×720@60, 1280×768@60, 1280×800@60, 1280×1024@60, 1360×768@60, 1366×768@60, 1440×900@60, 1600×1200@60, 1680×1050@60, 1920×1080@60, 1920×1200@60, 3840×2160@60, 4096×2160@60

Output Resolutions

HDMI SMPTE: 720p@50/60, 1080p@24/25/30/50/60
VESA: 1024×768@60, 1280×720@50/60, 1280×768@60, 1280×1024@60, 1360×768@60, 1920×1080@24/25/30/50/60
USB: 1024×768@60, 1280×720@50/60, 1280×768@60, 1280×1024@60, 1360×768@60, 1920×1080@24/25/30/50/60

Supported Standards: HDMI: 2.0, USB: 3.0, H.265: ITU-T H.265/ISO/IEC 23008-2
Supported Protocol: PTZ: VISCA
Video Formats: HDMI 2.0 | HDCP 2.2
Streaming Formats: ITU-T H.265 | ISO/IEC 23008-2
Disk Formats: FAT32(≤32 GB) | exFAT(64GB~2T)
Recording Formats: MP4 | WAV
Color Space: RGB
Video Sampling: 4:4:4 YUV
Latency: <4 frames
Line In Delay: Up to 8 frames

Power

Input Voltage: DC 12V/1.5A (via plug pack supplied)
Max Power: 20W
Compatibility: USB Power Delivery (PD) 3.0
Supported Cables: Certified USB PD Aware

Environment

Temperature: 0℃~60℃
Humidity: 10%~85%

Physical

Weight

Net: 0.42 kg
Package: 1.20 kg

Dimension

Net: 180 × 118.3 × 58.4 mm
Package: 255 × 145mm x 85 mm
