PAHT-CF from Bambu Lab is a high-performance 3D printing filament designed for engineering and industrial applications. It is a composite material combining a PA12 (nylon) base with carbon fibre reinforcement.
By merging the low moisture-absorption attributes of PA12 with the stiffness and strength of carbon fibre, PAHT-CF offers mechanical and thermal properties well above standard filaments.

Key Features

• Low Moisture Absorption: The PA12 base gives the filament significantly lower water absorption compared to typical PA-CF filaments — making it more dimensionally stable in humid or wet environments. For example, a saturated water absorption rate of ~0.88 % is cited vs ~1.7 % for standard PA-CF.
• Exceptional Mechanical Properties & Layer Adhesion: Thanks to carbon fibre reinforcement and optimized formulation, the filament offers high tensile strength, good bending modulus and strength, and stronger Z-layer bonding (the bond between print layers) than comparable materials.
• High Thermal Resistance: The material delivers a high heat deflection temperature (HDT) — for example ~194 °C under 0.45 MPa load. That means parts printed from this material can withstand elevated temperatures without deforming.
• Reusable High-Temperature Spool: The filament comes on a spool rated for high temperature, reducing risk of spool deformation during drying/pre-print prep, and it supports the brand’s reuse ethos.
• RFID & AMS Support: For models of Bambu Lab’s ecosystem that support AMS (Automatic Material System), parameters are embedded via RFID so the printer can automatically load correct settings.

Technical Specifications

• Filament diameter: 1.75 mm ± 0.03 mm.
• Roll Weight: 1.02kg
• Density: ~1.06 g/cm³.
• Vicat softening temperature: ~220 °C.
• Heat deflection temperature (HDT): approx. 194 °C at 0.45 MPa.
• Mechanical properties example (dry state): Tensile strength: ~92 ± 7 MPa. - Breaking elongation: ~8.4 ± 1.8 %. - Bending modulus: ~4230 ± 210 MPa. - Bending strength: ~125 ± 7 MPa. Saturated water absorption rate: ~0.88 % (25 °C, 55 % RH) for PAHT-CF vs ~1.70 % for typical PA-CF.

Recommended Printing & Handling Guidelines

• Drying: Before printing, the filament should be thoroughly dried (e.g., ~80 °C for 8–12 hours) to reduce moisture content. Moisture can degrade print quality and mechanical performance.
• Nozzle / Hotend: Use a hardened steel nozzle (recommended 0.6 mm) owing to the carbon fibre content (which is abrasive). Stainless steel nozzles are not recommended. A 0.2 mm nozzle is also not recommended.
• Printing conditions: Nozzle temperature recommended in the ~260-290 °C range; bed temperature ~80-100 °C. Print speed should be moderate (e.g., <100 mm/s) to maintain quality.
• Printer environment: Because of high thermal requirements and potential warping, printing inside an enclosure is strongly recommended. Open-frame printers (without enclosure) are considered unsuitable.
• Build plate & adhesion: Compatible build surfaces include textured or smooth PEI plates; “Cool Plate” (low-temp) is not recommended. Use of a glue stick may help for adhesion.
• Storage: Keep filament sealed, with desiccant, humidity <20% RH is recommended when not printing. Because of the hygroscopic nature of nylon composites, moisture uptake will degrade properties.

Typical Applications

Thanks to its strength, stiffness, heat resistance, and resistance to moisture, PAHT-CF is well suited for:

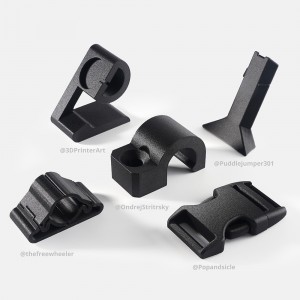

• Functional prototypes / engineering parts
• Machining fixtures, jigs
• Low-volume production parts
• Injection moulds or moulding tooling
• Situations where the printed part may see moisture, humidity, heat, or mechanical loading

Limitations & Considerations

• Because of the carbon fibre content, the filament is abrasive; you must use a hardened steel nozzle or equivalent to avoid rapid nozzle wear.
• Moisture uptake is still a risk (though reduced vs typical PA-CF); proper storage and drying are vital.
• Warping and print challenges are more likely than with standard PLA/PETG; emphasis on enclosed build chamber, proper adhesion, and bed temperature is needed.
• Print speed should be conservative compared to standard materials; going too fast may reduce mechanical performance or quality.
• The cost is higher than standard filaments; intended for demanding applications rather than general hobby use.

In short, the Bambu Lab PAHT-CF filament is a premium, carbon-fibre reinforced nylon composite engineered for technical 3D printing tasks. If you need parts that are dimensionally stable in humid environments, can handle elevated temperatures, and require strong mechanical properties (tension, bending, impact), this filament represents a strong choice. On the other hand, it demands more from your printer setup (enclosure, hardened nozzle, drying/storage discipline) than typical hobby filaments.
