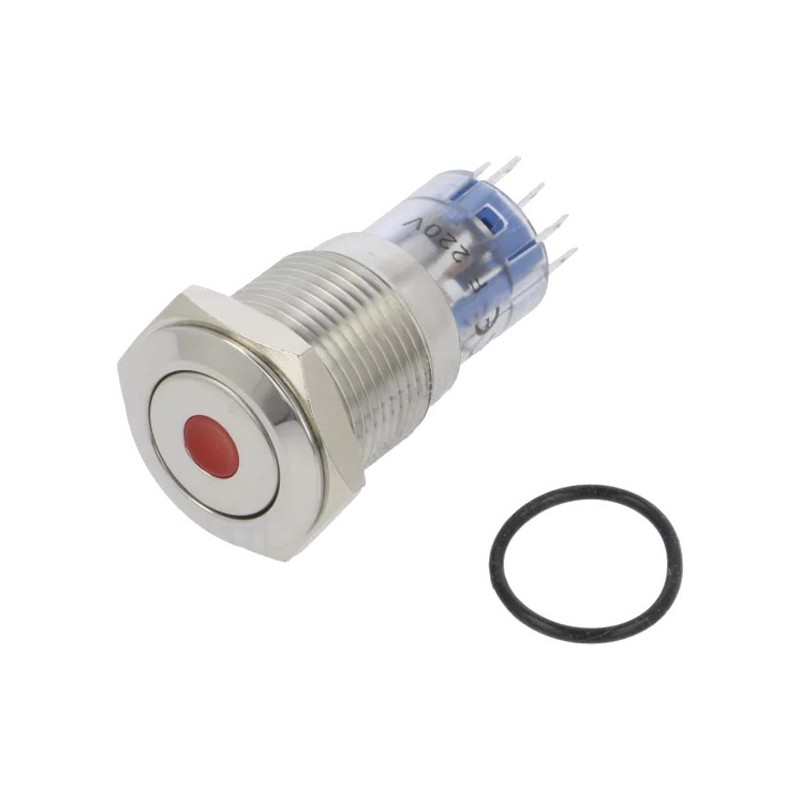

The LAS2-16F-22DL/S is a round metal push button switch designed for reliable latching control. Featuring red dot illumination powered by 220V, this 16mm switch provides clear status indication and durable performance for panel-mount applications.
- Switch Type: Round metal latching push button switch
- Illumination: Red dot illuminated at 220V
- Contact Configuration: DPDT (Double Pole Double Throw)
- Electrical Rating: 3A @ 250VAC
- Mounting Hole: 16mm diameter
- Design: IP rated and vandal resistant construction
LAS2-16F-22DL/S Red 16mm 220V Latching DPDT Push Button Switch
ME107798
Get registered and you will earn 2 points
(Each R100 spent = 1 point).Your cart will total 2 points.
The LAS2-16F-22DL/S is a round metal push button switch designed for reliable latching control. Featuring red dot illumination powered by 220V, this 16mm switch provides clear status indication and durable performance for panel-mount applications.
- Switch Type: Round metal latching push button switch
- Illumination: Red dot illuminated at 220V
- Contact Configuration: DPDT (Double Pole Double Throw)
- Electrical Rating: 3A @ 250VAC
- Mounting Hole: 16mm diameter
- Design: IP rated and vandal resistant construction
R166 incl. VAT
R145 excl. VAT
IN STOCK at EXTERNAL supplier.
If ordered before 10AM:
DELIVERED in 2-3 business days (main centres)
or 3-5 business days (regional areas or large items)
COLLECTION from GeeWiz in 1-2 business days
Or as low as R56 over 6 months interest-free, using your existing credit card. How it works
The LAS2-16F-22DL/S round metal push button switch offers a robust latching mechanism paired with red dot illumination at 220V. Ideal for control panels requiring a 16mm mounting hole, this switch delivers reliable switching and clear visual feedback.
- Latching Operation: Maintains switch position until toggled again.
- Red Dot Illumination: Integrated 220V red dot indicator light.
- DPDT Contact Configuration: Double Pole Double Throw for versatile control.
- Durable Construction: Made with a round metal body for vandal resistance.
- 16mm Mount Fit: Fits standard 16mm mounting cutouts.
- Rated Capacity: Specified for up to 3A @ 250VAC.
This round latching switch provides durable metal construction and reliable panel control.
Specifications
| Model | LAS2-16F-22DL/S |
| Switch Type | Push Button Switch |
| Shape | Round |
| Operation | Latching |
| Material | Metal |
| Illumination | Red Dot (220V) |
| Contact Type | DPDT |
| Electrical Rating | 3A @ 250VAC |
| Mounting Hole | 16mm |
| Protection/Rating | IP, Vandal Resistant |
