Upgrade your circuit designs with the Solid State Relay ESR4-D05-D40-000Z. This SIL PCB mount component delivers reliable optically isolated switching performance for your electronic applications.
- SIL PCB Mount: Designed for easy integration onto printed circuit boards.
- Optically Isolated: Features input control of 3-10VDC at 12mA.
- Output Rating: Handles 0-30VDC at 4A.
- Load Capacity: Requires a 1mA minimum load.
- Compact Dimensions: Measures L=20, H=17, W=5mm.

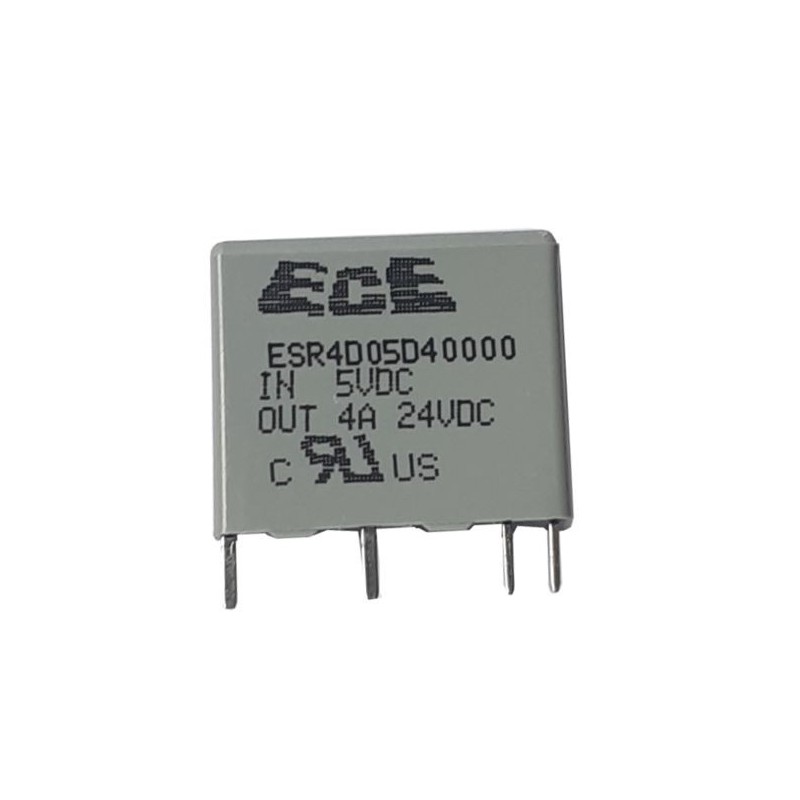

Solid State Relay ESR4-D05-D40-000Z SIL PCB 5V 24VDC 4A
35M0869
Get registered and you will earn 2 points
(Each R100 spent = 1 point).Your cart will total 2 points.
Upgrade your circuit designs with the Solid State Relay ESR4-D05-D40-000Z. This SIL PCB mount component delivers reliable optically isolated switching performance for your electronic applications.
- SIL PCB Mount: Designed for easy integration onto printed circuit boards.
- Optically Isolated: Features input control of 3-10VDC at 12mA.
- Output Rating: Handles 0-30VDC at 4A.
- Load Capacity: Requires a 1mA minimum load.
- Compact Dimensions: Measures L=20, H=17, W=5mm.
R246 incl. VAT
R214 excl. VAT
IN STOCK at EXTERNAL supplier.
If ordered before 10AM:
DELIVERED in 2-3 business days (main centres)
or 3-5 business days (regional areas or large items)
COLLECTION from GeeWiz in 1-2 business days
Or as low as R82 over 6 months interest-free, using your existing credit card. How it works
The Solid State Relay ESR4-D05-D40-000Z provides efficient and reliable switching for electronic projects requiring PCB mounting. Built with optical isolation, it ensures secure signal separation between input and output stages.
- Component Type: Solid State Relay designed in a SIL package format.
- Mounting: PCB mount configuration for straightforward circuit board integration.
- Isolation: Optically isolated design for enhanced protection.
- Input Specification: Operates at 3-10VDC @ 12mA.
- Output Specification: Supports 0-30VDC at 4A.
- Load Requirement: 1mA minimum load requirement.
- Physical Size: Compact dimensions of L=20, H=17, W=5mm.
Ensure reliable circuit control and precise electronic management with this high-performance solid state relay.
Specifications
| Relay Type | Solid State Relay |
| Mounting Type | PCB Mount, SIL |
| Input | 3-10VDC @ 12mA |
| Output | 0-30VDC 4A |
| Minimum Load | 1mA |
| Dimensions | L=20 H=17 W=5mm |
| Model Code | ESR4-D05-D40-000Z |
