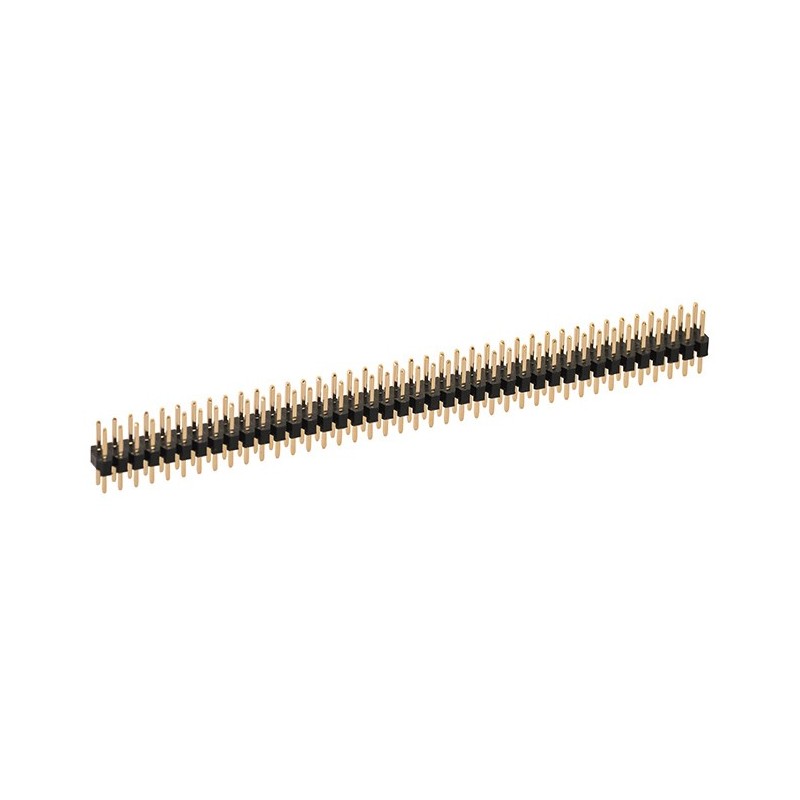

80-Pin DIL Straight Pin Header 2x40 2.0mm Pitch (80MPS2)
Get registered and you will earn 1 point
(Each R100 spent = 1 point).Your cart will total 1 point.
This 80-pin DIL straight pin header features a double-row 2x40 pin arrangement designed for PCB and circuit assembly projects. It features precise 2.0mm pitch spacing to ensure accurate pin alignment.
- Pin Layout: 80-pin configuration arranged in a 2x40 dual in-line layout.
- Header Type: DIL straight pin orientation for vertical mounting.
- Pitch Spacing: Features 2.0mm pitch pin spacing.
- Pin Height: Pin height measures exactly 6.0mm.
- Overall Height: Total height measures 15mm.
IN STOCK at EXTERNAL supplier.
If ordered before 10AM:
DELIVERED in 2-3 business days (main centres)
or 3-5 business days (regional areas or large items)
COLLECTION from GeeWiz in 1-2 business days
Integrate reliable connections into your electrical builds with this 80-pin DIL straight pin header. Designed with a standard 2x40 pin arrangement and a 2.0mm pitch spacing, this connector header offers accurate pin positioning for circuit boards and electronic hardware.
- 80-Pin Configuration: Arranged in a dual-row 2x40 pin structure.
- DIL Straight Design: Straight pin header orientation for straightforward mounting.
- 2.0mm Pitch Spacing: Designed with a 2.0mm pitch between pins.
- 6.0mm Pin Height: Features a dedicated pin height of 6.0mm.
- 15mm Total Height: Constructed with a total overall height of 15mm.
- Model Identifier: Designated with part code 80MPS2 for easy matching.
An essential structural component for precise dual in-line pin header connections on circuit assemblies.
Specifications
| Pin Layout | 2x40 Pin (80 Pins Total) |
| Header Type | DIL Straight Pin Header |
| Pitch | 2.0mm |
| Pin Height | 6.0mm |
| Total Height | 15mm |
| Model Code | 80MPS2 |
