Multifunctional Adapter Compatible with Raspberry Pi 5

GW-T-Pi5 Connector Adapter
>Get registered and you will earn 2 points Get registered and you will earn 2 points (Each R100 spent = 1 point).
Your cart will total 2 points.
  • PCIe expansion board designed for Raspberry Pi 5
  • Adds support for NVMe M.2 SSDs (2230 / 2242 formats)
  • Enables high-speed PCIe storage for faster boot and data performance
  • Provides dual full-size HDMI ports with up to 4K output
  • Converts Pi 5’s micro-HDMI to standard HDMI for easier connectivity
  • Offers two power input options: USB-C or terminal block
  • Includes PWR and ACT LED indicators for status monitoring
  • Comes with 16-pin PCIe cable, connectors, and SSD mounting screws
  • Ideal for media centers, dual-display setups, and performance projects
  • Compact, stable design for tidy integration with Pi 5 systems

R195 incl. VAT
R170 excl. VAT

IN STOCK at GeeWiz!
If ordered before 4PM:
DELIVERED next business day (main centres)
or 3-5 days (regional areas OR large/heavy packages)
COLLECTION from GeeWiz available SAME DAY
Also available for in-store purchase during business hours!

Or as low as R65 over 6 months interest-free, using your existing credit card. How it works

Volume discounts

Quantity Price You Save
5 R192 2%
10 R188 4%
205+ click to email

Quantity

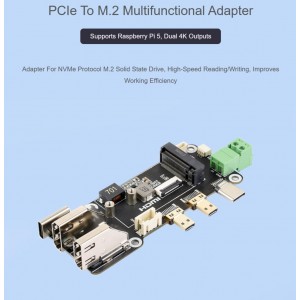

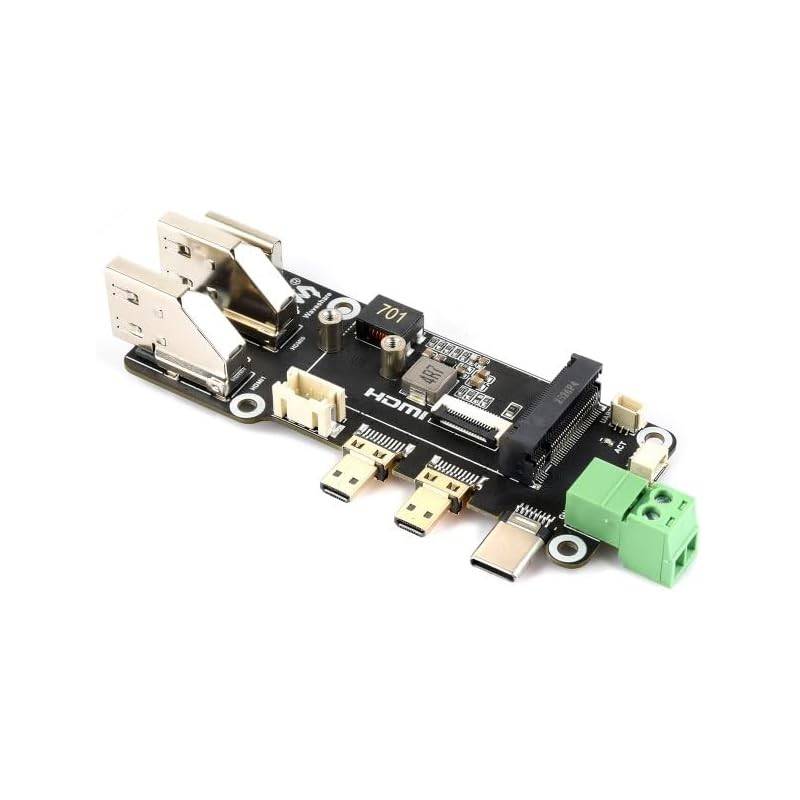

The PCIe to M.2 Multifunctional Adapter is a versatile expansion board designed specifically for the Raspberry Pi 5. It extends the Pi’s capabilities by adding support for high-speed storage, enhanced video outputs, and flexible power options — transforming a standard Pi 5 into a more capable mini-computer or multimedia station.

Key Features & Capabilities

PCIe & M.2 SSD Support

  • Connects to the Raspberry Pi 5’s PCIe interface for fast data transfer.
  • Enables use of NVMe M.2 SSDs (solid state drives) with support for common sizes like 2230 and 2242.
  • This upgrade allows much higher read/write speeds compared to microSD cards, improving performance for storage-intensive applications.

Dual 4K Video Outputs

  • Provides dual HDMI outputs supporting up to 4K resolution — ideal for running multiple displays or high-resolution media projects.
  • Converts the Raspberry Pi 5’s micro-HDMI ports into full-size HDMI female connectors, simplifying connectivity.

Flexible Power Supply Options

  • The adapter supports two ways to power it — either via a USB-C port or through a terminal block connection — giving flexibility depending on your project setup.

Status Indicators

  • On-board LED indicators show power state (PWR) and activity (ACT), helping you monitor device operation at a glance.

Package & Connectivity

Includes all necessary connectors and accessories for installation:

  • 16-pin PCIe cable

  • Various connectors/cables for power and status signals

  • SSD mounting screws

  • Connects directly to the Raspberry Pi 5’s PCIe header, expanding its native capabilities.

Who Is This For?

This adapter is ideal if you want to:

  • Add high-speed storage to your Raspberry Pi 5 — especially for booting from an SSD or running heavy file-based applications.

  • Use multiple displays or a dual-monitor setup with full-size HDMI connections.

  • Build media center projects, digital signage, or multitasking Pi setups with better performance and connectivity.

Generic
GW-T-Pi5 Connector Adapter
