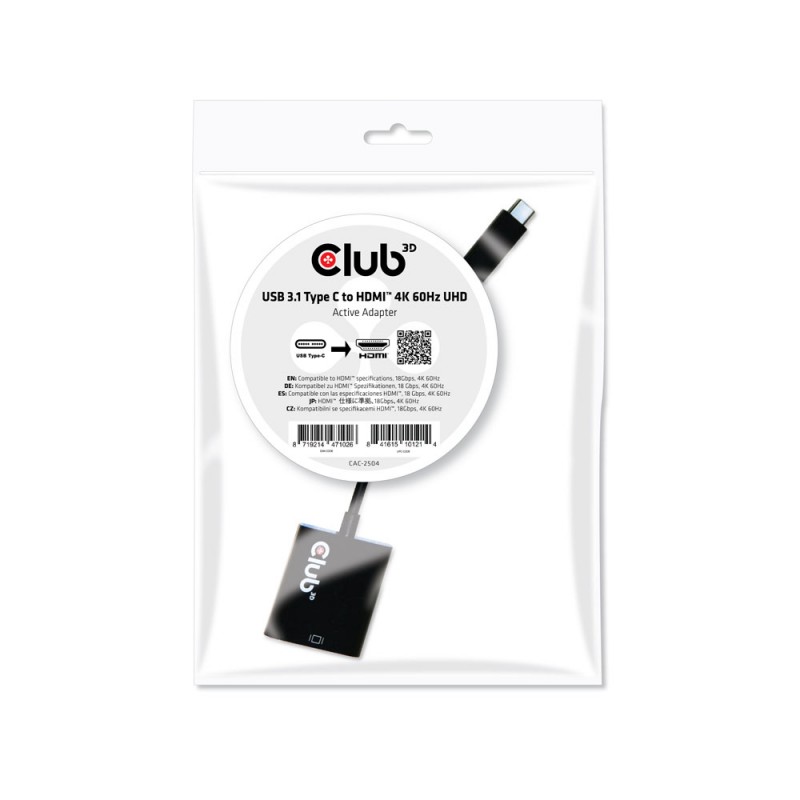

Club 3D USB Type-C 3.1 to HDMI 2.0 UHD Active Adapter (CAC-2504)

CAC-2504-CLUB3D
>Earn 6 points/R6 Earn 6 points/R6 (Each R100 spent = 1 point, 1 point = R1 discount)
Your cart will total 6 points that can be converted into a voucher of R6.

• Reversible USB Type C Connector
• DisplayPort 1.4 Receiver, up to 5.4Gbps link Rate, HBR2/HBR/RBR
• Video Stream Handling
- Up to 600Mhz dual pixel path and 16bpc
- RGB/YCbCr 4:2:2/4:2:0 pixel format
- Horizontal expansion of Vesa CVT to CEA Timings (as per DP 1.4 spec)
• DisplayPort to HDMI Stereoscopic 3D Transport
- Frame Sequential to Stacked Top-Bottom Conversion
- Pass-trough of ther 3D Formats
• Audio Stream Handling
- LPCM and compressed Audio encoding formats
- Max audio sample rate of 192 Khz x 8 Channel or 768 KHz x 2 Channel
• HDCP Support
- HDCP 1.3 to HDCP 1.4 repeater function
- HDCP 2.2 to HDCP 1.4 and 2.2 repeater function
• HDMI transmitter
- Compliant to HDMI specifications version 2.0 b
- 600MHz max TMDS character clock
- High Daynamic Range (HDR) support both Static- and Dynamic HDR.
- CEC Support - snooping, tunneling
• Max Video resolution and color depth on HDMI output
- 4K 60Hz YCbCr 4:2:2, up to 12bpc
- 4K 60Hz YCbCr 4:2:0, up to 12bpc
- 4K 30Hz RGB/YCbCr 4:2:2, up to 12bpc

R614 incl. VAT
R534 excl. VAT

IN STOCK at EXTERNAL supplier.
If ordered before 10AM:
DELIVERED in 2-3 Days (main centres)
or 4-5 days (regional areas or large items)
COLLECTION from GeeWiz available in 1-2 Days

Volume discounts

Quantity Price You Save
5 R602 2%
10 R590 4%
33+ click to email

Quantity

FEATURES

The Club 3D CAC-2504 is an Active HDMI signal converter. The USB 3.1 Type C to HDMI 2.0 UHD 4K 60Hz HDR Active Adapter is the easiest solution for connecting your USB 3.1 Type C source device featuring DisplayPort 1.4 Alternate Mode to an HDMI 2.0 enabled UHD Monitor, Television or Projector. It features support for HDR Video quality for deep color media content playback. The DisplayPort receiver supports up to 5,4 Gbps per lane over 4 lanes.

Supports up to 4K UHD Resolution at 60Hz
The USB 3.1 Type C to HDMI 2.0 UHD 4K 60Hz Active Adapter supports UHD resolutions of up to 4K @ 60Hz for a clear, sharp picture. The support for 60 frames per second provides exceptionally smooth video. Use the adapter to play games, view video or browse the internet from your USB 3.1 Type-C enabled source system on a (Ultra) high-resolution monitor or TV. Supporting up to 8 channels of audio, the adapter provides high-definition digital audio and video.

Compatible with all Operating Systems
The USB 3.1 Type C to HDMI 2.0 UHD 4K 60Hz HDR Active Adapter supports all USB 3.1 Type-C source systems with DisplayPort Alternate Mode and operating systems, including Apple OS X, Windows 8.1 and 10 and Google Chrome OS.

Please refer to your device's user manual to confirm the specification and functionality of the USB-C port.

PRODUCT SPECIFICATIONS

Brand Club3D
Item model number CAC-2504-CLUB3D
Product Type Adapter
Input USB type C male
Output HDMI 2.0 female
