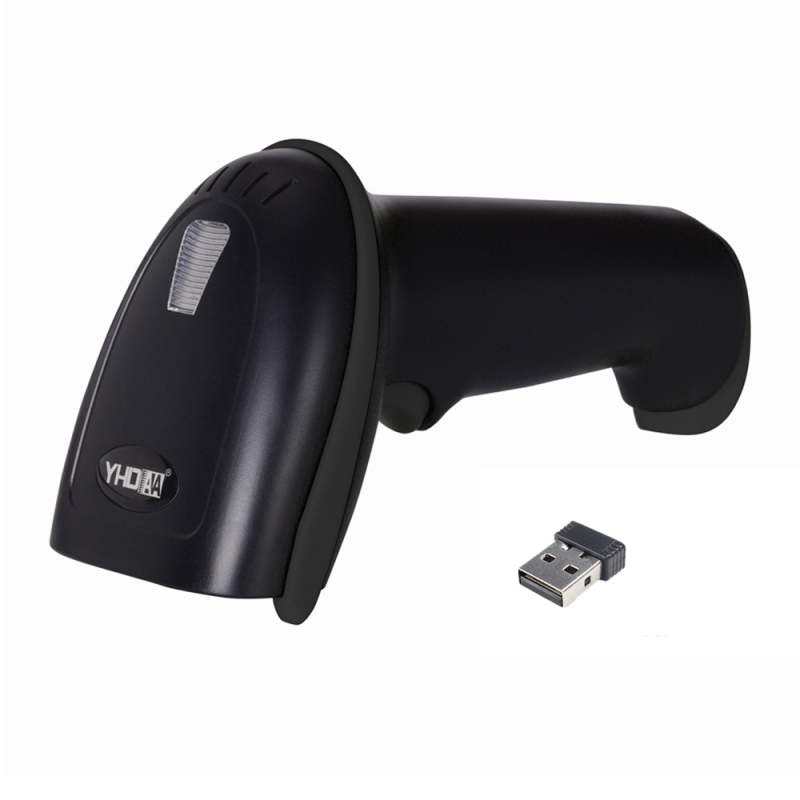

YHD-5700DW 2D Wireless Handheld Barcode Scanner
Get registered and you will earn 6 points
(Each R100 spent = 1 point).Your cart will total 6 points.
- Dual-mode connection: 2.4G wireless + USB wired, plug-and-play
- Fast 500 scans/sec with ARM 32-bit Cortex processor
- Reads 1D & 2D barcodes from paper, screens, and mobile devices
- Three scan modes: manual, continuous, or auto-sensing
- Wireless range: up to 50 m indoors / 100 m outdoors
- Storage capacity: up to 20 000 barcodes
- 2600 mAh battery — 7–10 days working time
- Durable build with 8 million-press key lifespan
- Works under strong light (≤ 100 000 Lux)
- Supports 16+ keyboard languages
- High precision: 4 mil reading accuracy
- Compact & lightweight: 0.28 kg
- Included: scanner, cable, receiver, manual, box
- Ideal for retail, logistics, warehousing, libraries, and healthcare
IN STOCK AT OVERSEAS SUPPLIER - DISPATCHED/COLLECTION IN 5-6 WEEKS
Powerful, precise, and built to perform — the YHD-5700DW delivers fast, reliable barcode scanning in any environment.
Key Features:
- Dual Connectivity: Supports both 2.4G wireless and USB wired connections — simple plug-and-play setup with no drivers required.
- Fast & Accurate Scanning: High-performance ARM 32-bit Cortex CPU with 650×480 CMOS sensor for rapid decoding and minimal errors.
- Wide Compatibility: Reads 1D and 2D barcodes from paper, screens, and mobile devices — ideal for retail, logistics, warehousing, and healthcare.
- Flexible Scan Modes: Choose from manual button, automatic continuous, or auto-sensing scanning for hands-free convenience.
- Long Transmission Range: Up to 50m indoors or 100m outdoors, ensuring flexible operation across large spaces.
- Large Storage Capacity: Can store up to 20,000 barcodes offline for batch uploads.
- Ultra-Long Battery Life: Built-in 2600mAh rechargeable battery provides 7–10 days of working time and extended standby life.
- High Durability: Designed for rugged environments with up to 8 million keystroke lifespan and excellent light anti-interference up to 100,000 Lux.
- Multi-Language Support: Compatible with over 16 keyboard languages for global use.
Technical Specifications:
-
Model: YHD-5700DW
-
Sensor: 650×480 CMOS
-
CPU: ARM 32-bit Cortex
-
Resolution: 4mil reading accuracy
-
Decoding Speed: 500 scans/sec
-
Optical Sight: 617nm LED
-
Illumination: 6500K LED
-
Battery: 3.7V 2600mAh
-
Charging: 5V 400mA
-
Working Current: 3.3V×200mA
-
Standby Current: 18μA–5mA
-
Scanning Angle: ±360° rotation / ±65° tilt / ±60° deviation
-
Operating Range:
-
13mil EAN-13: 50–250mm
-
4mil Code39: 60–100mm
-
20mil QR: 40–300mm
-
10mil PDF417: 40–280mm
-
-
Printing Contrast: ≥25%
-
Humidity: 0–95%
-
Transmission Distance: 100m (wireless) / 1.5m (wired)
-
Supported Barcodes:
-
1D: UPC-A/E, EAN-8/13, Code 39, Code 128, Code 93, Code 11, Interleaved & Matrix 2 of 5, Coda Bar, MSI, RSS, etc.
-
2D: QR Code, Data Matrix, PDF417, Aztec, Maxicode
-
Packaging:
-
Included: Scanner ×1, Cable ×1, Receiver ×1, Manual ×1, Box ×1
-

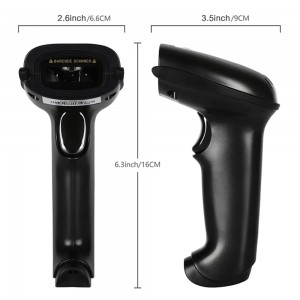

Dimensions: 167 × 80 × 100mm
-
Single Weight: 0.28kg
Ideally Used for:
Supermarkets | Retail | Warehouses | Logistics | Libraries | Healthcare
