HIFIBERRY DAC2 HD Digital to Analogue Converter

GW-T-DAC2 HD
>Earn 24 points/R24 Earn 24 points/R24 (Each R100 spent = 1 point, 1 point = R1 discount)
Your cart will total 24 points that can be converted into a voucher of R24.
  • High-end DAC for the Raspberry Pi.
  • It can be simply plugged onto your Raspberry Pi, without any soldering.
  • It can be extended by an additional DSP module.
R2,379 incl. VAT
R2,069 excl. VAT
FREE DELIVERY

IN STOCK AT OVERSEAS SUPPLIER - DISPATCHED/COLLECTION IN 14-20 DAYS

Quantity

PRODUCT DESCRIPTION

You’re just looking for the best? Stay tuned for the DAC2 HD. Compared to our DAC+ Pro, the new DAC2 HD offer even lower distortions and even higher dynamic range. This is our top model. It also comes with the DSP header that allows to add the DSP module to have additional digital signal processing capabilities – directly on the hardware.

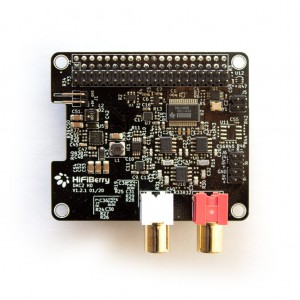

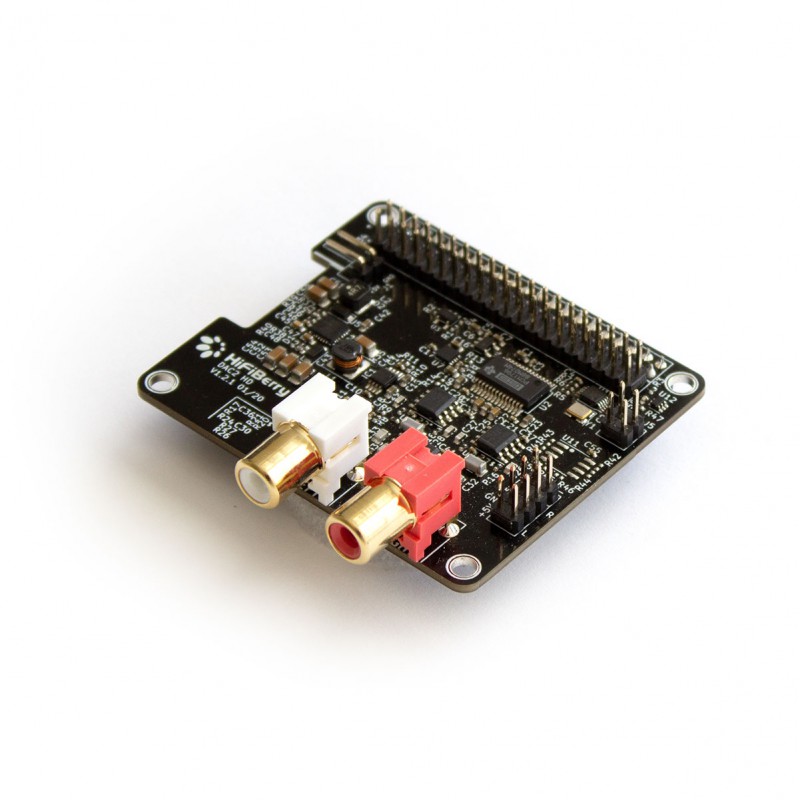

The HiFiBerry DAC2 HD is a high-end digital-to-analog converter for the Raspberry Pi (newer models with 40 pin GPIO connector).

  • Stereo output
  • Dedicated 192kHz/24bit high-quality Burr-Brown DAC
  • Custom current-to-voltage output stage with high-end filtering
  • Four ultra-low-noise linear voltage regulators for optimal audio performance
  • Low-jitter clock for optimized clock performance (independent from Raspberry Pi clock sources)
  • Hardware volume control for DAC. You can control the output volume using “alsamixer” or any application that supports ALSA mixer controls.
  • Supports HiFiBerry DSP add-on module
  • Connects directly to the Raspberry Pi, no additional cables needed
  • No soldering, comes as a pre-fabricated kit. You just plug it onto the Raspberry Pi, it is conform to the Raspberry Pi hardware-attached-on-top (HAT) specification.
  • Compatible with all Raspberry Pi models with a 40-pin GPIO connector
  • Directly powered from the Raspberry Pi, no additional power supply required
  • HAT compliant, EEPROM for automatic configuration
  • Gold plated RCA output connectors
  • Comes with all components required to mount it. We include 4 M2.5x12mm spacers to fix the board onto the Raspberry Pi
  • Requires at least Linux kernel 4.19.97

PRODUCT SPECIFICATIONS

Maximum output voltage 2.1Vrms
DAC signal-to-noise ratio 123db typical
DAC THD+N -108db typical, 44.1kHz, -10dBFS
Frequency response 10Hz-40kHz -3dB
Power consumption <1W
Sample rates 44.1-192kHz
Bits/sample 16, 32
