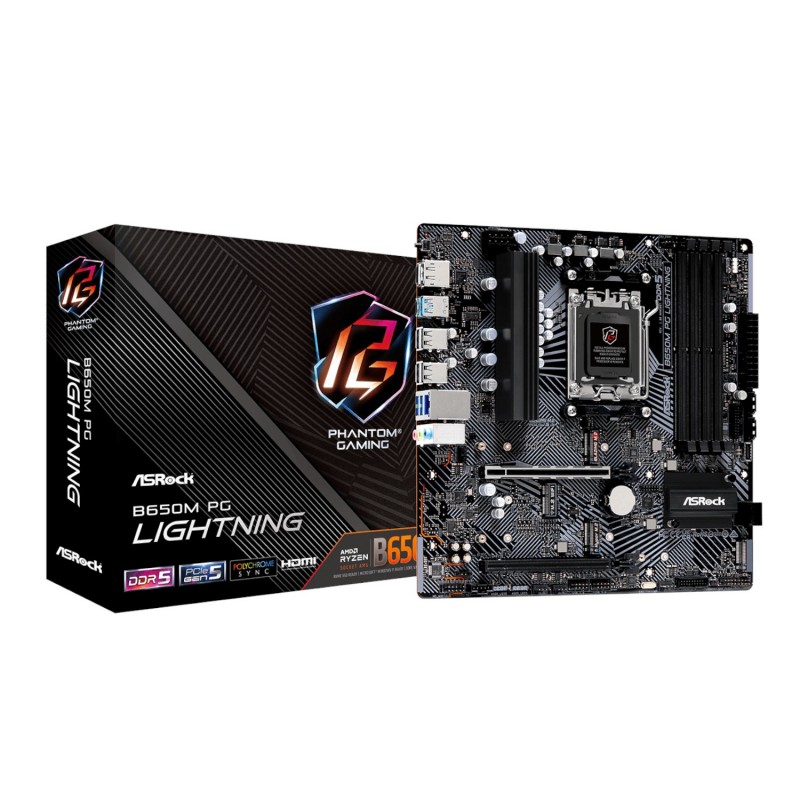

ASRock B650M PG Lightning AMD AM5 Micro ATX Motherboard

B650M PG LIGHTNING
>Get registered and you will earn 29 points Get registered and you will earn 29 points (Each R100 spent = 1 point).
Your cart will total 29 points.
  • Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
  • 6+2+1 Power Phase, Dr.MOS
  • 4 x DDR5 DIMMs
  • Supports Dual Channel, up to 7200+ (OC)
  • 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 M.2 Key-E for Wi-Fi
  • Graphics Output: HDMI, DisplayPort
  • Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
  • 4 SATA3, 1 Blazing M.2 (PCIe Gen5x4),
  • 1 Hyper M.2 (PCIe Gen4x4), 1 M.2 (PCIe Gen4x2)
  • 1 USB 3.2 Gen2 Type A+C (Rear),
  • 1 USB 3.2 Gen1 Type-C (Front),
  • 6 USB 3.2 Gen1 Type-A (2 Rear, 4 Front),
  • Phantom Gaming 2.5G LAN
  • Supports ASRock Auto Driver Installer, BIOS Flashback
R2,861 incl. VAT
R2,488 excl. VAT
FREE DELIVERY

IN STOCK at EXTERNAL supplier.
If ordered before 10AM:
DELIVERED next business day (main centres)
or 3-5 business days (regional areas or large items)
COLLECTION from GeeWiz available Same Day (approx 4:30pm)

From R267
per month
Or as low as R954 over 6 months interest-free, using your existing credit card. How it works

Volume discounts

Quantity Price You Save
5 R2,804 2%
10 R2,747 4%
30+ click to email

Quantity
Wishlist

Quick Specs

  • Supports AMD Ryzen 7000, 8000, and 9000 Series Processors: Future-proof your gaming rig.
  • AMD B650 Chipset: Ensures optimal performance and efficient power delivery.
  • Up to 256GB DDR5 Memory Support: Experience lightning-fast responsiveness.
  • HDMI and DisplayPort Outputs: Enjoy stunning visuals with integrated graphics.
  • Micro ATX Form Factor: Fits perfectly in compact and mid-tower cases.

Dominate the Game with AMD AM5 and ASRock

The ASRock B650M PG Lightning Micro ATX Motherboard is engineered to unlock the full potential of AMD's Ryzen 7000, 8000, and 9000 series processors. This AM5 Motherboard is perfect for gamers and PC enthusiasts looking to build a high-performance system without compromising on space. Featuring the AMD B650 chipset, it delivers exceptional speed, stability, and future-proof compatibility. The B650M PG Lightning offers incredible value, making it a top choice for your next build.

Experience Blazing-Fast DDR5 Memory

With support for up to 256GB of DDR5 memory, this Micro ATX Motherboard allows you to take advantage of the latest advancements in memory technology. Enjoy faster load times, smoother multitasking, and improved overall system responsiveness, whether you are gaming, streaming, or creating content. Get the most out of your AM5 Motherboard with high-speed DDR5.

Immersive Visuals with Integrated Graphics

The ASRock B650M PG Lightning offers both HDMI and DisplayPort outputs, allowing you to connect to a variety of displays and enjoy stunning visuals. Whether you are gaming on a high-refresh-rate monitor or working on a professional-grade display, this AM5 Motherboard delivers exceptional image quality. Enjoy vivid and clear graphics with this versatile motherboard.

Build a Compact Powerhouse

The Micro ATX form factor of this AM5 Motherboard makes it an ideal choice for compact and mid-tower PC cases. This allows you to build a powerful gaming rig or workstation without sacrificing valuable desk space. Its design ensures efficient cooling and easy cable management, making it a breeze to assemble and maintain. The Micro ATX Motherboard design provides flexibility without compromising performance.

Future-Proof Connectivity and Expansion

Equipped with the latest connectivity options, including USB ports and high-speed storage interfaces, the ASRock B650M PG Lightning ensures you are ready for the future. Expand your system with ease using the available PCIe slots, and enjoy lightning-fast data transfer speeds for your SSDs and other peripherals. This Micro ATX Motherboard offers all the connectivity you need.

FEATURES:

  • Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
  • 6+2+1 Power Phase, Dr.MOS
  • 4 x DDR5 DIMMs
  • Supports Dual Channel, up to 7200+ (OC)
  • 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 M.2 Key-E for Wi-Fi
  • Graphics Output: HDMI, DisplayPort
  • Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
  • 4 SATA3, 1 Blazing M.2 (PCIe Gen5x4),
  • 1 Hyper M.2 (PCIe Gen4x4), 1 M.2 (PCIe Gen4x2)
  • 1 USB 3.2 Gen2 Type A+C (Rear),
  • 1 USB 3.2 Gen1 Type-C (Front),
  • 6 USB 3.2 Gen1 Type-A (2 Rear, 4 Front),
  • Phantom Gaming 2.5G LAN
  • Supports ASRock Auto Driver Installer, BIOS Flashback

SPECIFICATIONS:

  • CPU & Chipset
    • Socket: AMD AM5
    • Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors*
    • Chipset: AMD B650
    • *The availability of expansion slots may vary by CPU. Please refer to PCIe/M.2 Bandwidth Table for details.
  • Bios
    • 256Mb AMI UEFI Legal BIOS with GUI support
  • Memory
    • Dual Channel DDR5 Memory Technology
    • 4 x DDR5 DIMM Slots
    • Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC)*
    • Max. capacity of system memory: 256GB
    •  Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
    • *Please refer to Memory Support List for more information.
  • Graphics Output
    • Integrated AMD RDNA™ graphics (Actual support may vary by CPU)
    • 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
    • 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
  • Expansion Slots
  • CPU:
    • 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
    • 1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode*
  • Chipset:
    • 1 x M.2 Socket (Key E), supports type 2230 Wi-Fi/BT PCIe Wi-Fi module
    • Supports AMD CrossFire™
    • 15μ Gold Contact in VGA PCIe Slot (PCIE1)
    • * Supports NVMe SSD as boot disks
  • Audio
    • 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
    • Nahimic Audio
  • LAN
    • 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
    • Dragon RTL8125BG
    • Supports Phantom Gaming LAN Software
    • Smart Auto Adjust Bandwidth Control
    • Visual User Friendly UI
    • Visual Network Usage Statistics
    • Optimized Default Setting for Game, Browser, and Streaming Modes
    • User Customized Priority Control
  • Storage
  • CPU:
    •  1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode*
  • Chipset:
    • 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
    • 1 x M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode*
    • 4 x SATA3 6.0 Gb/s Connectors
    • * Supports NVMe SSD as boot disks
  • RAID
    • Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
    • Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*
    • * Requires additional M.2 NVMe expansion cards to support RAID 10
  • USB
    • 1 x USB 3.2 Gen2 Type-C (Rear)
    • 1 x USB 3.2 Gen2 Type-A (Rear)
    • 1 x USB 3.2 Gen1 Type-C (Front)
    • 6 x USB 3.2 Gen1 Type-A (2 Rear, 4 Front)
    • 8 x USB 2.0 (4 Rear, 4 Front)
    • * All USB ports support ESD Protection
  • Connector
    • 1 x SPI TPM Header
    • 1 x Power LED and Speaker Header
    • 1 x RGB LED Header*
    • 3 x Addressable LED Headers**
    • 1 x CPU Fan Connector (4-pin)***
    • 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
    • 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
    • 1 x 24 pin ATX Power Connector
    • 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
    • 1 x Front Panel Audio Connector
    • 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
    • 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
    • 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
    • 1 x Front Panel Type C USB 3.2 Gen1 Header
    • * Supports in total up to 12V/3A, 36W LED Strip
    • ** Support in total up to 5V/3A, 15W LED Strip
    • *** CPU_FAN1 supports the fan power up to 1A (12W).
    • **** CPU_FAN2/WP supports the fan power up to 2A (24W).
    • ***** CHA_FAN1~3/WP support the fan power up to 2A (24W).
    • CPU_FAN2/WP and CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use.
  • Rear Panel I/O
    • 2 x Antenna Mounting Points
    • 1 x HDMI Port
    • 1 x DisplayPort 1.4
    • 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
    • 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)
    • 2 x USB 3.2 Gen1 Type-A Ports
    • 4 x USB 2.0 Ports
    • 1 x RJ-45 LAN Port
    • 1 x BIOS Flashback Button
    • HD Audio Jacks: Line in / Front Speaker / Microphone
  • Software
    • ASRock Motherboard Utility (Phantom Gaming Tuning)
    • ASRock Phantom Gaming LAN Software
    • ASRock Polychrome SYNC*
    • *These utilities can be downloaded from ASRock Live Update & APP Shop.
  • UEFI
    •  ASRock Full HD UEFI
    • ASRock Auto Driver Installer
    • ASRock Instant Flash
  • Form Factor
    • Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
  • OS Compatibility: Microsoft Windows® 10 64-bit / 11 64-bit
  • Certifications:
    • FCC, CE
    • ErP/EuP ready (ErP/EuP ready power supply is required)

WHAT'S IN THE BOX:

  • ASRock B650M PG Lightning AMD AM5 Micro ATX Motherboard - Black x1
