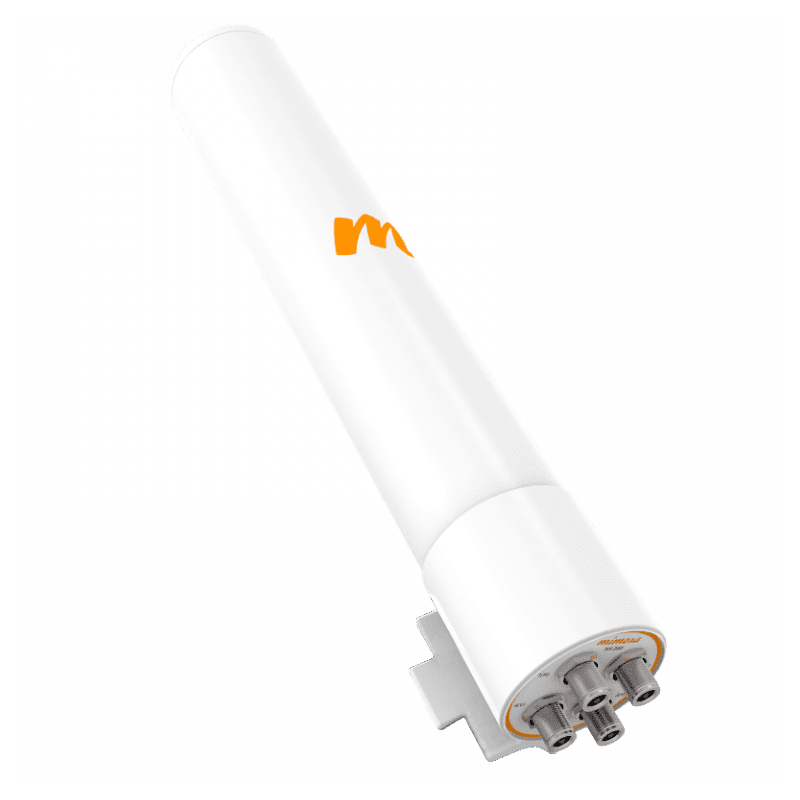

Mimosa 4.9-6.4 GHz 4x4 360 degree beamforming antenna for A5c

MIM-N5-360
>Earn 51 points/R51 Earn 51 points/R51 (Each R100 spent = 1 point, 1 point = R1 discount)
Your cart will total 51 points that can be converted into a voucher of R51.
4900–6400 MHz, 15 dBi, 30 dBm, includes LMR 240 Type N to Type N cables (4) and pipe clamps (2)
R5,051 incl. VAT
R4,393 excl. VAT
FREE DELIVERY

IN STOCK at EXTERNAL supplier.
If ordered before 10AM:
DELIVERED next business day (main centres)
or 3-5 business days (regional areas or large items)
COLLECTION from GeeWiz available Same Day (approx 4:30pm)

Volume discounts

Quantity Price You Save
5 R4,950 2%
10 R4,849 4%
30+ click to email

Quantity

FEATURES

Introducing the industry’s first 4-port, beamforming, 360º antenna specifically designed exclusively for Mimosa’s A5c access point. The N5-360 antenna’s unique design incorporates quad-180º overlapping antenna polarizations, doubling the coverage of Mimosa MicroPoP deployments with 3 dB of beamforming gain. The N5-360 boosts throughput by providing balanced dual-stream coverage over 360º of azimuth. Without sacrificing performance, the N5-360 operates over a wide frequency range, from 4.9 to 6.4 GHz, supporting licensed public safety bands and other expanded frequencies, where permitted by region

Longer-Range MicroPoPs Double the coverage area with 60% longer reach for MicroPoP deployments, easily handling deployments to homes within 500 m in dense, last mile, suburban areas.

Wide-Frequency Range The only antenna available for use between 4.9 to 6.4 GHz, delivering incredible spectrum flexibility.

PRODUCT SPECIFICATIONS

Brand

Mimosa

Item model number

MIM-N5-360

Product Type


beamforming antenna for A5c

Gain

15 dBi

Frequency 4900–6400 MHz
Polarization Dual H+V
Max Input Power 30 dBm
Mounting Dual-pole strap feed points integrated into painted metal base; Max pole diameter is 5.7 cm (2.25”)
Operating Temperature -40°C to +55°C (-40°F to 131°F)
Mimosa
MIM-N5-360
New product
