- DZR brass body, epoxy coated.
- Magnetic drive.
- Dry type indicator for clear reading.
- Inlets Strainer.
- Pulse prepared with different pulse settings available.
- Capable for recalibration.
- Not sensitive to fine solids.
- Each meter has a unique serial number.
- Inlet and Outlet threads compatible with ISO metric sizes.

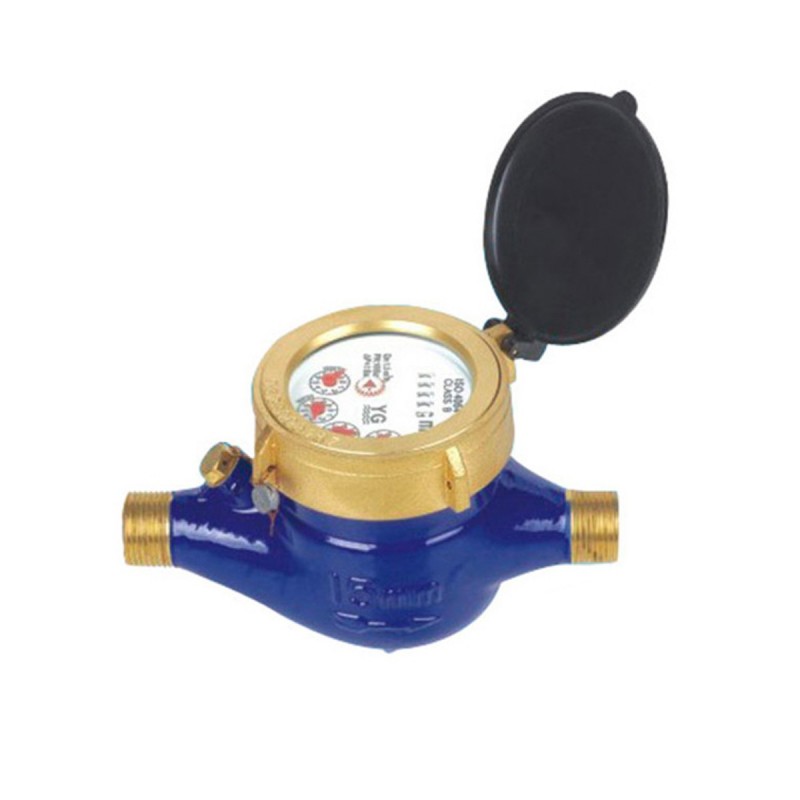

Water Meter 20MM MULTI-JET Brass Cold Class B
6009507842667
Get registered and you will earn 13 points
(Each R100 spent = 1 point).Your cart will total 13 points.
- DZR brass body, epoxy coated.
- Magnetic drive.
- Dry type indicator for clear reading.
- Inlets Strainer.
- Pulse prepared with different pulse settings available.
- Capable for recalibration.
- Not sensitive to fine solids.
- Each meter has a unique serial number.
- Inlet and Outlet threads compatible with ISO metric sizes.
R1,263 incl. VAT
R1,099 excl. VAT
FREE DELIVERY
IN STOCK at EXTERNAL supplier.
If ordered before 10AM:
DELIVERED 2-3 business days (main centres)
or 5-7 business days (regional areas or large items)
COLLECTION from GeeWiz available 2-3 business days (approx 4:30pm)
Or as low as R421 over 6 months interest-free, using your existing credit card. How it works
Measure water usage accurately with this durable 22mm Inferential LXSG 15mm Brass Dry Dial Cold water meter .
No Tailpiece included.
APPLICATION
- Measures the volume of cold water passing through a pipeline.
- Domestic billing purposes.
FEATURES
- DZR brass body, epoxy coated.
- Magnetic drive.
- Dry type indicator for clear reading.
- Inlets Strainer.
- Pulse prepared with different pulse settings available.
- Capable for recalibration.
- Not sensitive to fine solids.
- Each meter has a unique serial number.
- Inlet and Outlet threads compatible with ISO metric sizes.
WORKING CONDITIONS
- Working temperature: Equal or Smaller than 50 Degree Celsius for cold water: 1600 kPa (16 Bar)
MAXIMUM PERMISSIBLE ERRORS
- In the lower zone from qmin inclusive up to but excluding qt is plus minus 5 percent.
- In the upper zone from qt inclusive up to and including qs is plus minus 2 percent.
COMPLIANCE STANDARD
- Conforms to SANS 1529-1: Class B.
- Conforms to ISO4064: Class B.
INSTALLATION REQUIREMENTS
- Must be installed on a horizontal pipeline only.
- Pipeline must be flushed before installation.
- Meters should be constantly full of water during operation.
IMPORTANT NOTICE
- No Hemp to be used during installation.
- No soldering or heat to be applied during installation.
Do not remove from installation as it will void warrenty.
