TP-Link AC1200 Wireless Dual Band MU-MIMO Gigabit Ceiling Mount Access Point
Get registered and you will earn 11 points
(Each R100 spent = 1 point).Your cart will total 11 points.
- Fast Dual-Band Wi-Fi
- Integrated into Omada SDN
- Centralized Management
- Seamless Roaming
- PoE Support
- Secure Guest Network
- Advanced Wireless Tech
IN STOCK at EXTERNAL supplier.
If ordered before 10AM:
DELIVERED next business day (main centres)
or 3-5 business days (regional areas or large items)
COLLECTION from GeeWiz available Same Day (approx 4:30pm)
Hardware Features
- Interface: Gigabit Ethernet (RJ-45) Port×1 (Support IEEE802.3af PoE and Passive PoE)
- Physical Security Lock: Yes
- Button: Reset
- Power Supply: 802.3af/at PoE, 24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)
- Power Consumption: EU: 10.5 W, US: 12.6 W
- Dimensions: 205.5 × 181.5 × 37.1 mm ( W x D x H )
- Antenna Type: 3 Internal Omni | 2.4 GHz: 4 dBi | 5 GHz: 5 dBi
- Mounting: Ceiling /Wall Mounting (Kits included)
Wireless Features
- Wireless Standards: IEEE 802.11ac/n/g/b/a
- Frequency: 2.4 GHz and 5 GHz
- Signal Rate: 5 GHz:Up to 867 Mbps, 2.4 GHz:Up to 450 Mbps
- Wireless Security: Captive Portal Authentication*, Access Control, Wireless Mac Address Filtering, Wireless Isolation Between Clients, SSID to VLAN Mapping, Rogue AP Detection, 802.1X Support
- Transmission Power: CE: ≤20 dBm(2.4 GHz, EIRP), ≤23 dBm(5 GHz, EIRP). FCC: ≤24 dBm(2.4 GHz), ≤22 dBm(5 GHz)
Wireless Functions
- Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
- Enable/Disable Wireless Radio
- Automatic Channel Assignment
- Transmit Power Control (Adjust Transmit Power on dBm)
- QoS(WMM)
- Seamless Roaming*
- Omada Mesh*
- Band Steering
- Load Balance
- MU-MIMO
- Airtime Fairness
- Beamforming
- Rate Limit
- Reboot Schedule
- Wireless Schedule
- Wireless Statistics based on SSID/AP/Client
Management
- Omada App: Yes
- Centralized Management: Omada Cloud-Based Controller, Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller
- Cloud Access: Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
- Email Alerts: Yes
- LED ON/OFF Control: Yes
- Management MAC Access Control: Yes
- SNMP: v1,v2c
- System Logging Local/Remote Syslog: Local/Remote Syslog
- SSH: Yes
- Web-based Management: HTTP/HTTPS
- L3 Management: Yes
- Multi-site Management: Yes
- Management VLAN: Yes
- Zero-Touch Provisioning: Yes. Requiring the use of Omada Cloud-Based Controller (Supported by EAP225 V3.0, V4.0 and above, and is not supported by EAP225 V3.20)
Package Contents

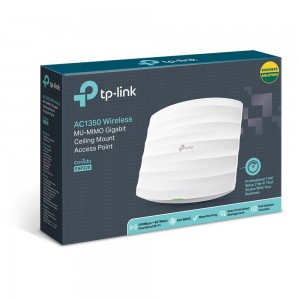

- AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP225
- Passive PoE Adapter
- Power Cord
- Mounting Kits
- Installation Guide
System Requirements
- Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux
Environment
- Operating Temperature: 0–40 ℃ (32–104 ℉)
- Storage Temperature: -40–70 ℃ (-40–158 ℉)
- Operating Humidity: 10–90% RH non-condensing
- Storage Humidity: 5–90% RH non-condensing
