Extra Large mild steel L-Bracket which can be securely wall mounted (coach screws and plugs available separately).Features a galvanized finished for better protection from the weather and rust.
Bracket is galvanized, and available from our Cape Town offices only.Due to the dimensions and weight of the brackets, courier options are regrettably not available.
UltraLAN's outdoor free-standing cabinets are designed to protect your sensitive network equipment from harsh environments.
The cabinet is made from durable electro-galvanized cold rolled steel and finished with a powder coating to protect it from the elements and corrosion.
Several features are incorporated to safeguard the cabinet from the elements, while still keeping the equipment secure and well ventilated.
These outdoor cabinets include a high-grade polyurethane door joint strip for better protection against water & dust, rain hood, and is secured with a 3-point swing handle locking system.
Air ventilation is critical for the well being of your equipment, and the UltraLAN cabinet features vents on the front door as well as sides panels.
In addition, metal mesh filters are set into a double wall on the inside, adding to dust ingress protection while still allowing air to pass through for better cooling inside the cabinet.
The UltraLAN outdoor cabinet includes 2 ceiling mounted fans which rapidly expels hot air through the vents situated underneath the overhang of the roof.
Cable entry is allowed from the bottom of the cabinet through rubber glands.
For even further protection, the outdoor cabinet can be bolted into the ground to prevent it from being moved away.
Please take note:Due to the size and weight, we are not able to courier free standing cabinets regrettably.You are welcome to collect any free standing cabinets from our offices, or to arrange a courier to collect from us.

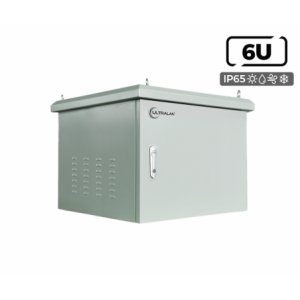

UltraLAN's outdoor cabinets are designed to protect your sensitive network equipment from harsh environments.
The cabinet is made from durable electro-galvanized cold rolled steel and finished with a powder coating to protect it from the elements and corrosion.
Several features are incorporated to safeguard the cabinet from the elements, while still keeping the equipment secure and well ventilated.
These outdoor cabinets include a high-grade polyurethane door joint strip for better protection against water & dust, as well as a roof awning to prevent rain from entering through the top of the cabinet.
These outdoor cabinets are secured with a 3-point swing handle locking system to keep the door closed and prevent unauthorized access.
Air ventilation is critical for the well being of your equipment, and the UltraLAN cabinet features vents on both side panels.
In addition, metal mesh filters are set into a double wall on the inside, adding to dust ingress protection while still allowing air to pass through for better cooling inside the cabinet.
The UltraLAN outdoor cabinet has 2 ceiling mounted fans which improves air circulation and expels heat.
Cable entry is allowed from the bottom of the cabinet through rubber covers.
The UltraLAN wall mount outdoor cabinets also have 4 hooks on top for easier installation.
The UltraLAN flat 19" shelf mounts on the side of the network cabinet upright struts (4-post mounting).
With a depth of 500mm, it can provide for various needs within your cabinet.
Ideal to provide support for non-rackmount items in a network cabinet such as routers, PBX's, and other equipment.
The shelf is vented to help expel heat and improve air flow through the bottom.
Flat cabinet shelves provides the largest surface area and supports a load up to 50KG.Shelf dimensions: 465mm x 500mm This model shelf is suitable for cabinets with an enclosure depth of 800mm.
*Does not include cage nuts and screws for mounting.
All UltraLAN cabinets come with cage nuts & screws included, or they can be purchased separately.
The UltraLAN flat 19" shelf mounts on the side of the network cabinet upright struts (4-post mounting).
With a depth of 700mm, it can provide for various needs within your cabinet.
Ideal to provide support for non-rackmount items in a network cabinet such as routers, PBX's, and other equipment.
The shelf is vented to help expel heat and improve air flow through the bottom.
Flat cabinet shelves provides the largest surface area and supports a load up to 50KG.Shelf dimensions: 465mm x 700mm This model shelf is suitable for cabinets with an enclosure depth of 1000mm.
*Does not include cage nuts and screws for mounting.
All UltraLAN cabinets come with cage nuts & screws included, or they can be purchased separately.
