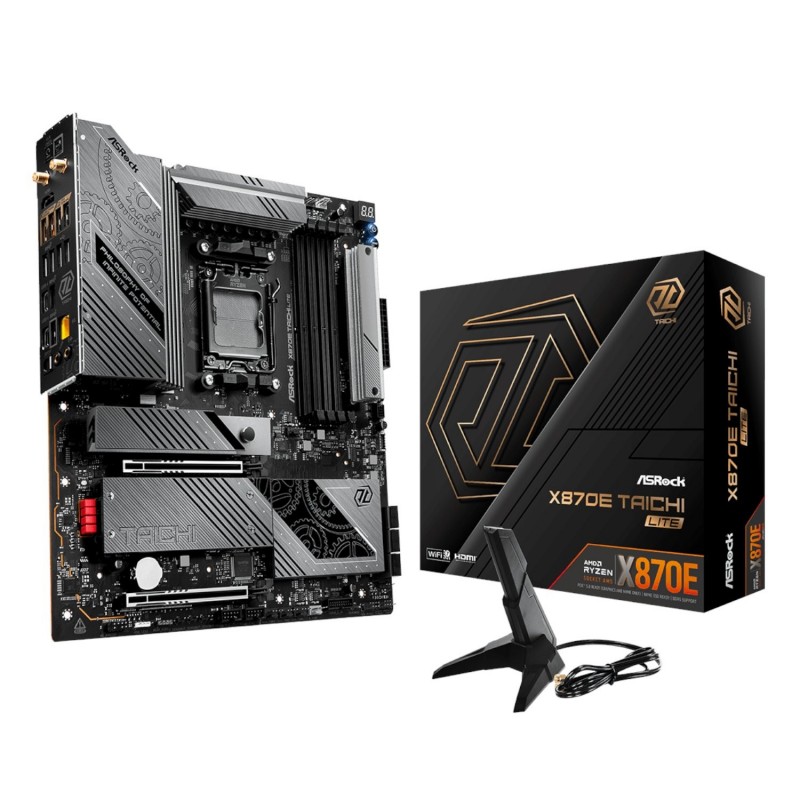

ASRock X870E Taichi Lite AM5 ATX Motherboard

X870E-TAICHILITE
>Get registered and you will earn 116 points Get registered and you will earn 116 points (Each R100 spent = 1 point).
Your cart will total 116 points.

Harness the power of true adaptability and unmatched performance with the ASRock X870E Taichi Lite AM5 ATX Motherboard, where minimalist design meets maximum capability. Inspired by the philosophy of boundless potential, the Taichi Lite is engineered to be as fluid and adaptable as water—ready to evolve with the needs of high-performance gamers, creators, and professionals alike. Supporting AMD Ryzen™ 9000, 8000, and 7000 Series processors with the latest AMD X870E chipset, this motherboard provides top-tier specs including dual PCIe 5.0 x16 slots, DDR5 memory overclocking up to 8200+ MHz, and blazing-fast USB4 Type-C connectivity. Whether you're building a next-gen gaming powerhouse or a productivity-driven workstation, the Taichi Lite delivers unwavering stability and responsiveness.

This board is armed with four M.2 slots, including a Blazing M.2 PCIe Gen5 x4 capable of 128 Gb/s transfer speeds for next-gen NVMe SSDs, and six SATA3 ports for expansive storage options. ASRock’s exclusive 5Gb/s LAN with superior EMI resistance, Wi-Fi 7, and Bluetooth 5.4 ensure rock-solid networking whether you're streaming, gaming, or working from home. Cooling is handled with precision, thanks to smart fan speed control across multiple headers, enhanced by extra-large aluminum alloy M.2 heatsinks for consistent thermal performance. Integrated USB4 (40Gbps) and USB 3.2 Gen2x2 (20Gbps) ensure lightning-fast connectivity for external devices, while a rich rear I/O includes HDMI 2.1, multiple high-speed USB ports, and onboard BIOS Flashback and Clear CMOS buttons for easy DIY setup.

Sound and visuals are elevated with Nahimic Audio, Realtek ALC4082, and ESS SABRE9219 DAC, ensuring immersive 5.1 channel sound, 130dB SNR output, and up to 600-ohm headset support. The built-in Polychrome SYNC and SignalRGB integration offer custom RGB control with addressable headers to create a visually synchronized, reactive lighting setup across compatible components. Whether it's stunning aesthetics, efficient cooling, ultra-low latency networking, or lightning-fast storage you’re after, the ASRock X870E Taichi Lite delivers a versatile, future-ready platform built to evolve with your ambition.

FEATURES:

  • AMD AM5 socket supports Ryzen 9000, 8000, and 7000 Series processors
  • PCIe 5.0 x16 Steel Slot for next-gen GPU bandwidth and durability
  • Blazing-fast Wi-Fi 7 and 5G LAN for ultra-low-latency connectivity
  • Supports DDR5 memory overclocking up to 8200+ MHz for extreme performance
  • Four M.2 slots, including one Hyper Gen5 x4 for lightning-fast NVMe storage
  • Extra large aluminum alloy M.2 heatsink effectively improves heat dissipation for enhanced cooling
  • Enhanced USB4 Type-C technology brings speed and versatility
  • Nahimic Audio offers you the most engaging listening experience
  • Polychrome SYNC and SignalRGB for vivid, addressable lighting control

SPECIFICATIONS:

  • CPU & Chipset
    • Socket: AMD AM5
    • Supported CPUs: AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
    • Chipset: AMD X870E
  • Memory
    • Dual Channel DDR5 Memory Technology
    • 4 x DDR5 DIMM Slots
    • Supports DDR5 ECC/non-ECC, un-buffered memory up to 8200+(OC)
    • Max. capacity of system memory: 256GB
    • Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
  • Graphics Output
    • Integrated AMD RDNA™ graphics (Actual support may vary by CPU)
    • 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
    • 2 x USB4, support HDCP 2.3 and max. resolution up to 8K 30Hz
  • Expansion Slots
  • CPU:
    • 2 x PCIe 5.0 x16 Slots (PCIE1 and PCIE2), support x16 or x8/x8 modes
  • Chipset:
    • 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
    • Supports AMD CrossFire™
  • Storage
  • CPU:
    • 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode
  • Chipset:
    • 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
    • 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
    • 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
    • 6 x SATA3 6.0 Gb/s Connectors
  • Networking
    • LAN: Realtek RTL8126
    • Wireless: Wi-Fi 7 Module (802.11be 2x2) with Bluetooth 5.4
    • Dual-band 2×2 support with 6GHz band
  • USB Ports
  • CPU:
    • 2 x USB4 Type-C (Rear)
    • 2 x USB 3.2 Gen2 Type-A (Rear)
  • Chipset:
    • 1 x USB 3.2 Gen2x2 Type-C (Front)
    • 3 x USB 3.2 Gen2 Type-A (Rear)
    • 7 x USB 3.2 Gen1 Type-A (3 Rear, 4 Front)
    • 6 x USB 2.0 (2 Rear, 4 Front)
  • Audio
    • 5.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec)
    • WIMA Audio Capacitors (For Rear Outputs)
    • ESS SABRE9219 DAC for Rear Panel Audio (130dB SNR)
    • Individual PCB Layers for R/L Audio Channel
    • Direct Drive Technology on Front headphone port (Supports up to 600 Ohm headsets)
    • Nahimic Audio
  • Connector
    • 3 x Thermistor Cable Headers
    • 1 x Power LED and Speaker Header
    • 1 x RGB LED Header
    • 3 x Addressable LED Headers
    • 2 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)
    • 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
    • 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)
    • 1 x Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
    • 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
    • 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
    • 1 x Front Panel Audio Connector (15μ Gold Audio Connector)
    • 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
    • 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
    • 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
    • 1 x Dr. Debug with LED
    • 1 x Power Button with LED
    • 1 x Reset Button with LED
  • RGB & Aesthetics
    • 1 x Power LED and Speaker Header
    • 1 x RGB LED Header
    • 3 x Addressable LED Headers
  • DIY Features
    • BIOS Flashback Button
    • Auto Driver Installer (via LAN)
    • Flexible Integrated I/O Shield
  • Rear I/O Ports
    • 2 x Antenna Ports
    • 1 x HDMI Port
    • 1 x Optical SPDIF Out Port
    • 2 x USB4 Type-C Ports (40 Gb/s)
    • 5 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (USB32_12 are Lightning Gaming Ports.)
    • 3 x USB 3.2 Gen1 Type-A Ports (USB32_34 supports Ultra USB Power.)
    • 2 x USB 2.0 Ports
    • 1 x RJ-45 LAN Port
    • 1 x Clear CMOS Button
    • 1 x BIOS Flashback Button
    • 1 x Line Out Jack (Gold Audio Jack)
    • 1 x Microphone Input Jack (Gold Audio Jack)
  • Software & UEFI
  • Software:
    • ASRock Motherboard Utility (A-Tuning)
    • ASRock Polychrome SYNC
    • ASRock XFast LAN
  • UEFI:
    • ASRock EZ Mode
    • ASRock Full HD UEFI
    • ASRock Auto Driver Installer
    • ASRock Instant Flash
  • Form Factor
    • EATX Form Factor: 12.0-in x 10.5-in, 30.5 cm x 26.7 cm
    • 8 Layer PCB
    • 2oz Copper PCB
  • OS Compatibility: Microsoft Windows® 10 64-bit / 11 64-bit
  • Certifications: FCC, CE | ErP/EuP ready (ErP/EuP ready power supply is required)

WHAT'S IN THE BOX:

  • ASRock X870E Taichi Lite AM5 ATX Motherboard x1
  • SATA Data Cables x4
  • ASRock Wi-Fi 2.4/5/6 GHz Antenna x1
  • ARGB Splitter Cable x1
  • Thermistor Cables x3
R11,594 incl. VAT
R10,082 excl. VAT
FREE DELIVERY

IN STOCK at EXTERNAL supplier. If ordered before 10AM: DELIVERED next business day (main centres) or 3-5 business days (regional areas or large items) COLLECTION from GeeWiz available Same Day (approx 4:30pm)

From R1,080
per month
Or as low as R3,865 over 6 months interest-free, using your existing credit card. How it works

Volume discounts

Quantity Price You Save
5 R11,363 2%
10 R11,131 4%
30+ click to email

Quantity
Wishlist

Harness the power of true adaptability and unmatched performance with the ASRock X870E Taichi Lite AM5 ATX Motherboard, where minimalist design meets maximum capability. Inspired by the philosophy of boundless potential, the Taichi Lite is engineered to be as fluid and adaptable as water—ready to evolve with the needs of high-performance gamers, creators, and professionals alike. Supporting AMD Ryzen™ 9000, 8000, and 7000 Series processors with the latest AMD X870E chipset, this motherboard provides top-tier specs including dual PCIe 5.0 x16 slots, DDR5 memory overclocking up to 8200+ MHz, and blazing-fast USB4 Type-C connectivity. Whether you're building a next-gen gaming powerhouse or a productivity-driven workstation, the Taichi Lite delivers unwavering stability and responsiveness.

This board is armed with four M.2 slots, including a Blazing M.2 PCIe Gen5 x4 capable of 128 Gb/s transfer speeds for next-gen NVMe SSDs, and six SATA3 ports for expansive storage options. ASRock’s exclusive 5Gb/s LAN with superior EMI resistance, Wi-Fi 7, and Bluetooth 5.4 ensure rock-solid networking whether you're streaming, gaming, or working from home. Cooling is handled with precision, thanks to smart fan speed control across multiple headers, enhanced by extra-large aluminum alloy M.2 heatsinks for consistent thermal performance. Integrated USB4 (40Gbps) and USB 3.2 Gen2x2 (20Gbps) ensure lightning-fast connectivity for external devices, while a rich rear I/O includes HDMI 2.1, multiple high-speed USB ports, and onboard BIOS Flashback and Clear CMOS buttons for easy DIY setup.

Sound and visuals are elevated with Nahimic Audio, Realtek ALC4082, and ESS SABRE9219 DAC, ensuring immersive 5.1 channel sound, 130dB SNR output, and up to 600-ohm headset support. The built-in Polychrome SYNC and SignalRGB integration offer custom RGB control with addressable headers to create a visually synchronized, reactive lighting setup across compatible components. Whether it's stunning aesthetics, efficient cooling, ultra-low latency networking, or lightning-fast storage you’re after, the ASRock X870E Taichi Lite delivers a versatile, future-ready platform built to evolve with your ambition.

FEATURES:

  • AMD AM5 socket supports Ryzen 9000, 8000, and 7000 Series processors
  • PCIe 5.0 x16 Steel Slot for next-gen GPU bandwidth and durability
  • Blazing-fast Wi-Fi 7 and 5G LAN for ultra-low-latency connectivity
  • Supports DDR5 memory overclocking up to 8200+ MHz for extreme performance
  • Four M.2 slots, including one Hyper Gen5 x4 for lightning-fast NVMe storage
  • Extra large aluminum alloy M.2 heatsink effectively improves heat dissipation for enhanced cooling
  • Enhanced USB4 Type-C technology brings speed and versatility
  • Nahimic Audio offers you the most engaging listening experience
  • Polychrome SYNC and SignalRGB for vivid, addressable lighting control

SPECIFICATIONS:

  • CPU & Chipset
    • Socket: AMD AM5
    • Supported CPUs: AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
    • Chipset: AMD X870E
  • Memory
    • Dual Channel DDR5 Memory Technology
    • 4 x DDR5 DIMM Slots
    • Supports DDR5 ECC/non-ECC, un-buffered memory up to 8200+(OC)
    • Max. capacity of system memory: 256GB
    • Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
  • Graphics Output
    • Integrated AMD RDNA™ graphics (Actual support may vary by CPU)
    • 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
    • 2 x USB4, support HDCP 2.3 and max. resolution up to 8K 30Hz
  • Expansion Slots
  • CPU:
    • 2 x PCIe 5.0 x16 Slots (PCIE1 and PCIE2), support x16 or x8/x8 modes
  • Chipset:
    • 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
    • Supports AMD CrossFire™
  • Storage
  • CPU:
    • 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode
  • Chipset:
    • 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
    • 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
    • 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
    • 6 x SATA3 6.0 Gb/s Connectors
  • Networking
    • LAN: Realtek RTL8126
    • Wireless: Wi-Fi 7 Module (802.11be 2x2) with Bluetooth 5.4
    • Dual-band 2×2 support with 6GHz band
  • USB Ports
  • CPU:
    • 2 x USB4 Type-C (Rear)
    • 2 x USB 3.2 Gen2 Type-A (Rear)
  • Chipset:
    • 1 x USB 3.2 Gen2x2 Type-C (Front)
    • 3 x USB 3.2 Gen2 Type-A (Rear)
    • 7 x USB 3.2 Gen1 Type-A (3 Rear, 4 Front)
    • 6 x USB 2.0 (2 Rear, 4 Front)
  • Audio
    • 5.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec)
    • WIMA Audio Capacitors (For Rear Outputs)
    • ESS SABRE9219 DAC for Rear Panel Audio (130dB SNR)
    • Individual PCB Layers for R/L Audio Channel
    • Direct Drive Technology on Front headphone port (Supports up to 600 Ohm headsets)
    • Nahimic Audio
  • Connector
    • 3 x Thermistor Cable Headers
    • 1 x Power LED and Speaker Header
    • 1 x RGB LED Header
    • 3 x Addressable LED Headers
    • 2 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)
    • 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
    • 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)
    • 1 x Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
    • 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
    • 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
    • 1 x Front Panel Audio Connector (15μ Gold Audio Connector)
    • 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
    • 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
    • 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
    • 1 x Dr. Debug with LED
    • 1 x Power Button with LED
    • 1 x Reset Button with LED
  • RGB & Aesthetics
    • 1 x Power LED and Speaker Header
    • 1 x RGB LED Header
    • 3 x Addressable LED Headers
  • DIY Features
    • BIOS Flashback Button
    • Auto Driver Installer (via LAN)
    • Flexible Integrated I/O Shield
  • Rear I/O Ports
    • 2 x Antenna Ports
    • 1 x HDMI Port
    • 1 x Optical SPDIF Out Port
    • 2 x USB4 Type-C Ports (40 Gb/s)
    • 5 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (USB32_12 are Lightning Gaming Ports.)
    • 3 x USB 3.2 Gen1 Type-A Ports (USB32_34 supports Ultra USB Power.)
    • 2 x USB 2.0 Ports
    • 1 x RJ-45 LAN Port
    • 1 x Clear CMOS Button
    • 1 x BIOS Flashback Button
    • 1 x Line Out Jack (Gold Audio Jack)
    • 1 x Microphone Input Jack (Gold Audio Jack)
  • Software & UEFI
  • Software:
    • ASRock Motherboard Utility (A-Tuning)
    • ASRock Polychrome SYNC
    • ASRock XFast LAN
  • UEFI:
    • ASRock EZ Mode
    • ASRock Full HD UEFI
    • ASRock Auto Driver Installer
    • ASRock Instant Flash
  • Form Factor
    • EATX Form Factor: 12.0-in x 10.5-in, 30.5 cm x 26.7 cm
    • 8 Layer PCB
    • 2oz Copper PCB
  • OS Compatibility: Microsoft Windows® 10 64-bit / 11 64-bit
  • Certifications: FCC, CE | ErP/EuP ready (ErP/EuP ready power supply is required)

WHAT'S IN THE BOX:

  • ASRock X870E Taichi Lite AM5 ATX Motherboard x1
  • SATA Data Cables x4
  • ASRock Wi-Fi 2.4/5/6 GHz Antenna x1
  • ARGB Splitter Cable x1
  • Thermistor Cables x3
X870E-TAICHILITE
4 Items
  • Returns Policy

  • Return of merchandise (RMA) and Warranty

    We want you to be happy with the purchase you have made from us. If you are not completely satisfied, you may return the product to us and we will either refund, credit, repair/replace it, subject to the below terms and conditions.

    You can return purchases for a refund (excl shipping). Please notify us within 7 days and ensure item is ready maximum 10 days after delivery date.

    Please ensure to log your return request within 7 days of receipt of your item. Please ensure to select the correct reason for return:

    - Changed my mind / Item exchange

    - Faulty on arrival

    - Incorrect item received

    All items are covered by a 12 month warranty (unless otherwise stated) which will be honoured directly by GeeWiz. All products will either be replaced/repaired/refunded depending on stock availability. Products will require evaluation by GeeWiz before a warranty claim can be accepted.

    Should the item being returned for assessment be found to be in good working order, unfortunately, there will be a collection fee that will apply.

    The collection fees are as follows:

    - For returns on items that were sent with free shipping: R198

    - For returns that had a surcharge, the same surcharge will apply for collection.

    Please log your return on your account, under the returns manager.

    We do not reimburse your fee to ship to us, but we will pay for return shipping if the item is subject to replacement. If the item you wish to return was ordered incorrectly / is no longer required / you have changed your mind, there is a collection fee that will be charged (please refer to the above) and this will be deducted from the refund amount once the supplier has credited us. Please note GeeWiz will only cover return shipping of a faulty unit within 6 months of purchase, after which, a shipping fee (starting from R198) will be applicable to you for the return of the unit.

    Any disputes relating to ordered items being short/incorrectly shipped will only be entertained if reported to GeeWiz within 3 days of delivery/collection.

    Refunds are subject to inspection of item(s) - in some cases, items will need to be sent to supplier for evaluation and testing. This can take up to 15 working days. Once a refund has been approved, this may take 3 - 5 business days to be processed.

    ALL returns are subject to up to a 30% restocking fee if item is no longer in BRAND NEW condition or if item seal/packaging has been broken.

    Please re-package safely and include all original product packaging.

    All software products are unfortunately not eligible for credit or refund once purchased.

    After the 6-month period, you will no longer be eligible and won't be able to receive a refund. We can however replace or repair depending on the outcome after our team of professionals has inspected the product.

    Should a warranty sticker not be present on an item, the warranty is immediately null and void.

    Batteries are covered under warranty, but please note that GEL, AGM and LEAD ACID have limited cycle runs. These are typically around 200 cycles and may run out before the end of the warranty. Once the cycles have been depleted, it means the battery has reached the end of life and will no longer be a warranty claim.

    GeeWiz reserves the right to refuse a refund if the item is damaged from misuse, items are missing, or if the product is altered in any way.

    GeeWiz or its affiliates are not responsible for damage or loss of any kind that may occur as a result of using or misusing any product purchased from us.

    The warranty will no longer be valid, and GeeWiz will not be responsible for damage or injury of any kind resulting from:

    • Electricity fluctuations and surges, lightning strikes, faults in the building wiring, faulty installations, and improper use of controls
    • Failure to use the product in accordance with the operating instructions and or general misuse and or abuse
    • Damage caused by a superior force (vis major) or if the product has been infested with insects or pests
    • If the product is physically damaged after it left the store
    • If water or liquid caused the damage to the product
    • If the warranty seal is tampered with
    • Any repair or tampering by an unauthorised person or attempt to repair or tamper with the equipment, or use of parts not supplied by authorised agents, or alterations or modification to the equipment shall render the warranty null and void.

    For hygiene purposes.

    Please note we cannot accept returns for apparel that has been worn, stained, frayed, or otherwise shows signs of use.

    We can only accept returns for items that are damaged upon receipt or are faulty.

    • Click here to get more details

If you have any further questions, please feel free to use the form below to ask:

(optional)
*(Required to be notified when an answer is available)
Send question!

Related products

(8 other products in the same category)

Details
